U6-IW

Ubiquiti UniFi U6-IW, new generationWiFi 6 (802.11ax)with technology, a compact and stylishwall-mounted access pointIt is a model. It offers both performance and aesthetic solutions particularly in hotel, dormitory, office, and residential projects.

Featured Features:

• WiFi 6 supportwith high speed and low latency

• Dual-Band (2.4 GHz & 5 GHz)wireless connection

• PoE (Power over Ethernet)Power and data transmission over a single cable with support.

• In-Wall designwith decorative and space-saving installation

• UniFi Controllerwith central management and easy integration

U6-IW Access Point, is an excellent choice for those seeking high-capacity and reliable connections in modern networks. Original Ubiquiti productsUnder the guarantee of Poyraz NetworkYou can purchase it.

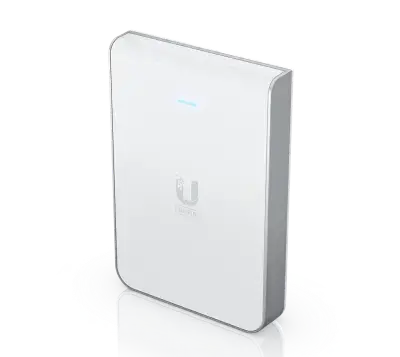

🖼 Physical & Design

• Boyutlar:139.7 × 96 × 31.2 mm (5.5 × 3.8 × 1.3 inches)

• Ağırlık:~460 g (1 lb)

• Malzeme:Polycarbonate body and aluminum mounting parts

• Montaj:Wall type; including mounting kit

• LED Status Indicator:White / Blue

🌐 Network Interface & PoE Features

• Entrance Port:1× Gigabit Ethernet (PoE input)

• Built-in Switch:4× Gigabit Ethernet output port (one of which supports PoE output; requires PoE+)

📡 Wireless Performance

• Wi-Fi Standard:Wi-Fi 6 (802.11ax), dual-band (2.4 GHz and 5 GHz)

• Spatial Streams:Total 6 → 2×2 (2.4 GHz) and 4×4 (5 GHz)

🚀 Speed & Coverage

• Max. Data Rate:

  • 2.4 GHz → 573.5 Mbps (BW40)

  • 5 GHz → 4.8 Gbps (BW160)

• Total Air Interface Speed (aggregate): Yaklaşık 5.3 Gbps

• Coverage Area:~115 m² (1,250 ft²)

• Simultaneous User Support:300+ devices

📶 Antenna & TX Power

• Antenna Gain (Gain):

  • 2.4 GHz → 5 dBi

  • 5 GHz → 5.9 dBi

• Max. Transmission Power (TX Power):

  • 2.4 GHz → 22 dBm

  • 5 GHz → 26 dBm

🔐 Software & Security Features

• SSID Support:8 BSSID (per radio)

• Security Protocols:WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• Advanced Network Features:

  • Wireless Meshing, Band Steering

  • 802.11k/v/r (RRM, Fast Roaming)

  • Passpoint (Hotspot 2.0)

  • Captive Portal (Customized login page, voucher, payment, RADIUS over TLS, VLAN, etc.)

  • WiFi speed limiting, guest isolation, scheduled WiFi, Zero-wait DFS



🔌 Power Consumption & Voltage

• Max. Power Consumption:13 W (excluding PoE output)

• Supported Voltage Range:44–57 V DC

🌡️ Environmental Conditions & Certifications

• Operating Temperature:–30 °C to +60 °C (–22 °F to 140 °F)

• Moisture Resistance:5% – 95% (non-condensing)

• Sertifikalar:CE, FCC, IC
