WAVE-AP-EU

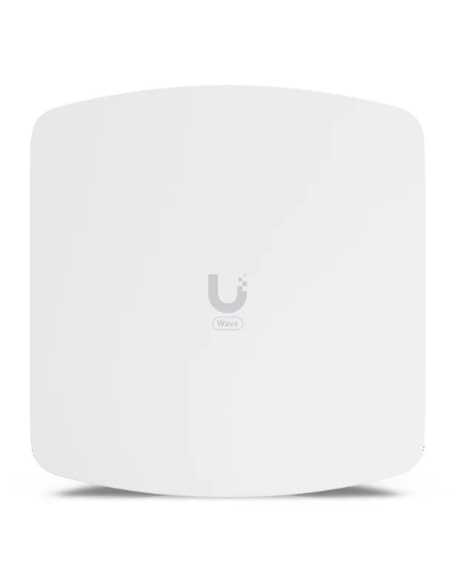

🌐 Ubiquiti Wave AP EU – Technical Specifications

Wave-AP-EUUbiquiti's new generation60 GHz (802.11ay) destekli It is a Point-to-Multipoint (PtMP) access point.It is specifically designed for high-speed, short-distance connection needs. Compliant with European frequency and power regulations.EU versiyonudur.

📶 Wireless Features

• Main Frequency Band:60 GHz mmWave(IEEE 802.11ay)

• Backup Link Band (Failover):5 GHz(802.11ac) – for automatic switching

• Maximum Real Data Rate:15+ Gbpstotal system throughput value (with multiple clients)

• MIMO Structure:2x2 MIMO(For the 60 GHz band)

• Connection Count:Maksimum To 6 clients(for example Wave-Nano or Wave-Pico) simultaneous connection

• Anten:

  • Integrated directional high gain antenna

  • Beamforming destekli

  • Antenna gain:17 dBi(60 GHz)

• Maximum Distance:500+ meters(line of sight – LoS)

🔌 Hardware Specifications

• Ethernet Port:1x 2.5 Gbps Ethernet (RJ45)

• Power Input:PoE++ (802.3bt) desteği

  • Alternatively, a 48V/0.65A PoE adapter (may be provided by UBNT)

• Power Consumption:Yaklaşık 17–20W

🛠️ Physical Properties

• Boyutlar:Yaklaşık 255 x 90 x 60 mm

• Ağırlık:Yaklaşık 800 grams

• Material / Protection ClassSuitable for outdoor use.

  • IPX6– resistant to rain and wind

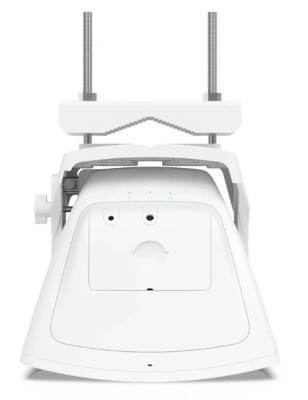

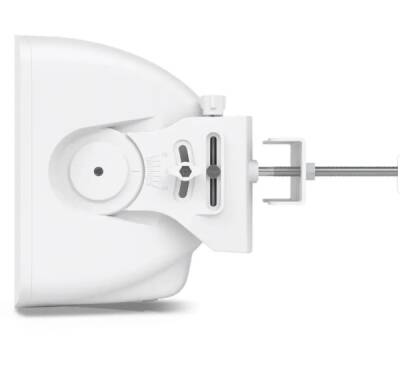

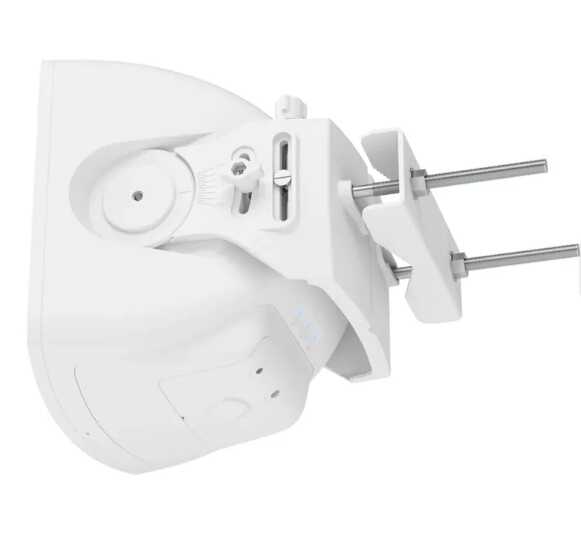

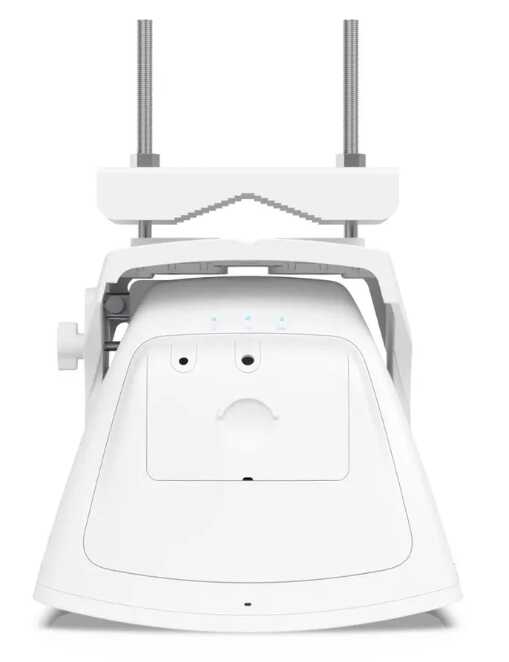

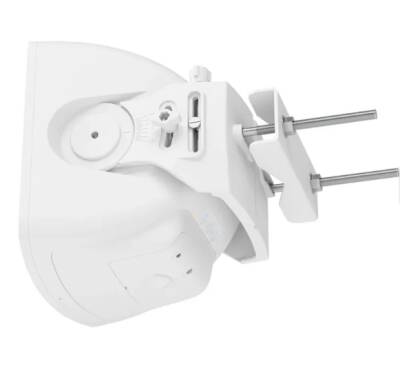

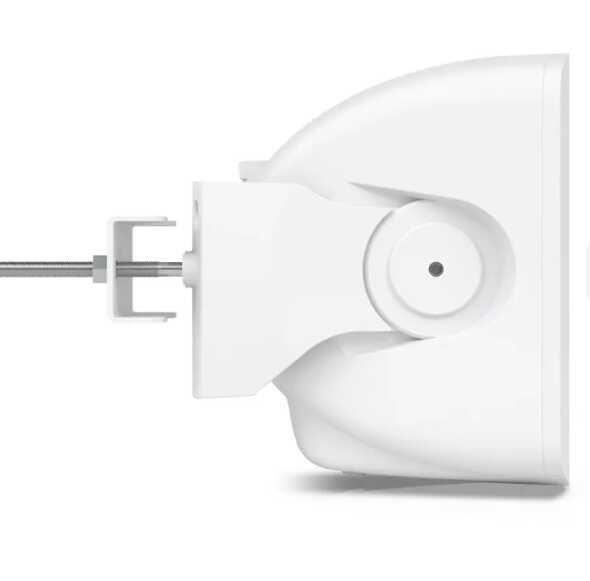

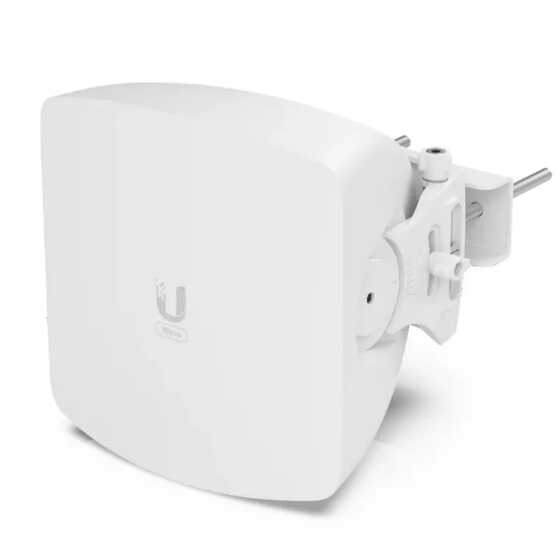

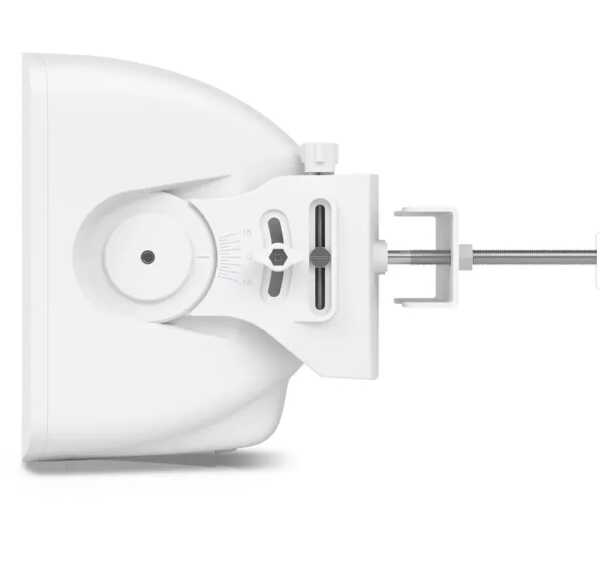

• MontajIt can be mounted on a pole or wall.

  • The mounting fixture is included in the box.

🌐 Management and Software Features

• Management Platform:UISP (Ubiquiti Internet Service Platform)Remote monitoring and configuration over

• Software Features:

  • Automatic alignment and beamforming

  • Signal quality monitoring

  • OTA updates

  • Traffic control and QoS

📦 Box Contents

• Wave AP EU device

• Assembly accessories (pole clamps)

• Quick setup guide

• PoE adapter is not included.(must be taken separately)

🎯 Areas of Use

• ISP Access PointTo provide high-speed connection to the end user

• Urban FTTH alternativeRapid solution in areas without fiber infrastructure.

• Corporate building connections

• Apartment – on-site distribution network
