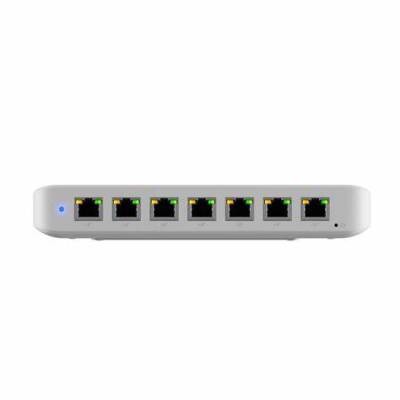

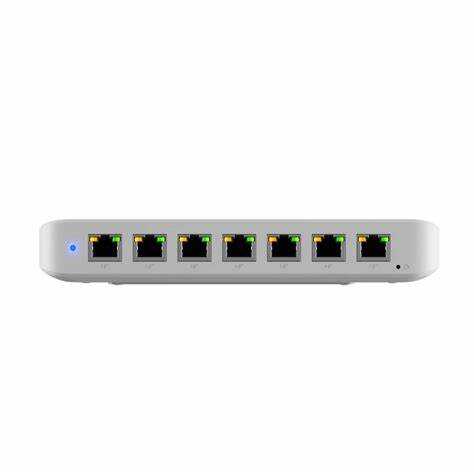

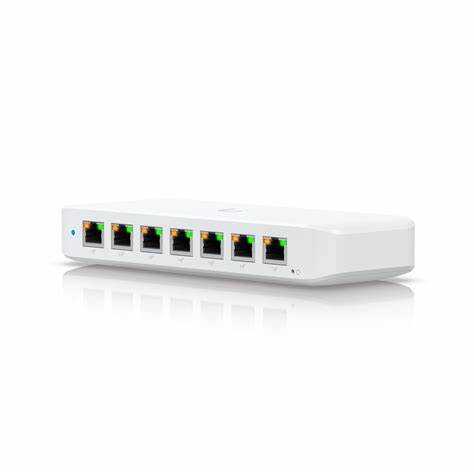

Ubiquiti USW-Ultra-210W-EU

🖧 Product Description

Ubiquiti USW-Ultra-210W-EU, 8-port gigabit Layer 2PoE-enabled managed switchIt is a model. Ideal for small to medium-scale network setups, it can power and provide data to many devices with a single cable through high PoE power.

⚙️ Basic Technical Specifications

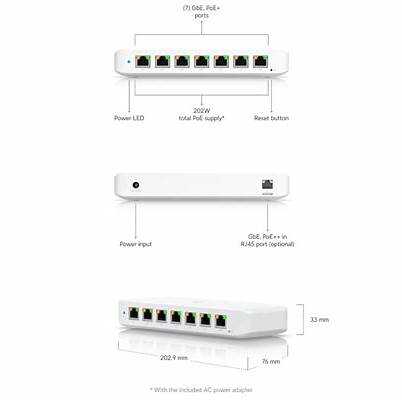

• Port Structure
  • 8 × RJ‑45 Gigabit Ethernet port
  – 7 port:PoE / PoE+ output
  – 1 port:PoE++ input option

• PoE Power Budget
  • Total with internal 210 W AC adapter202 W PoE budget
  • The device can be operated via PoE++ input (but with a more limited budget).
  • Maximum for each PoE+ output port30 W desteklenir

• Key Capability / Performance
  • 16 Gbpsswitching capacity
  • 8 Gbpsnon-blocking throughput
  • Transmission speed: ~11.9 Mpps

• Power & Working Conditions
  • External adapter: 54 V / 3.9 A (210 W)
  • Maximum device consumption (without PoE output): ~8 – 9 W
  • Supported voltage range: 44 – 57 V DC
  • Operating temperature:
  – In PoE++ input mode: –30 °C to +60 °C
  – With AC adapter: –20 °C to +60 °C
  • Humidity: 10% – 90%, non-condensing environment

• Physical Dimensions & Structure
  • Dimensions:203 × 76 × 33 mm
  • Weight: ~320 g (device)
  • Housing: Polycarbonate / plastic construction

• Software & Network Features
  • Layer 2 features: VLAN, STP/RSTP, port isolation, port mirroring, storm control, egress rate limit, jumbo frame support
  • Management: UniFi Network Controller compatibility (version 8.0.7 and later)

✅ Advantages & Areas of Use

• ⚡ High PoE capacityIt provides ideal power for devices such as cameras, access points, and VoIP phones.

• 🔄 Compact and quiet design— does not include a fan, suitable for quiet environments

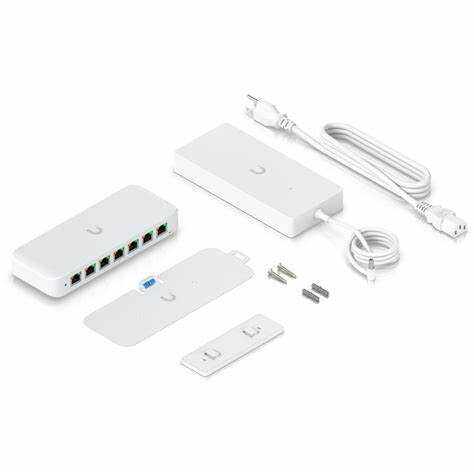

• 🧱 Versatile assembly options- desktop, wall or magnetic mount

• 🛡️ Closed structure & robust casing- safe operation even in challenging environments

• 🌐 Central control capabilitywith easy network management

• 📦 High-budget PoE projects— especially in places with a high number of devices and power requirements

⚠️ Points to Note

• Some users find the device'sadoption (connecting to the controller)reported experiencing disconnections during the process.

• Additionally, experiences have been shared that cameras not compatible with the device do not receive PoE.

• The adapter or PoE adapter must be of the correct voltage and capacity; otherwise, the PoE output may be limited.
