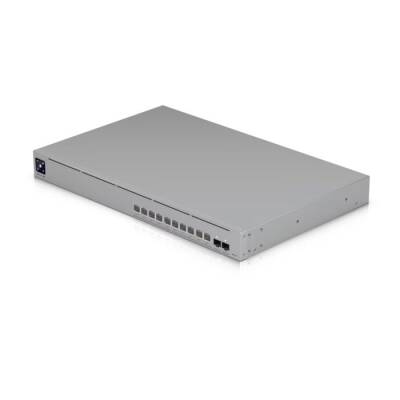

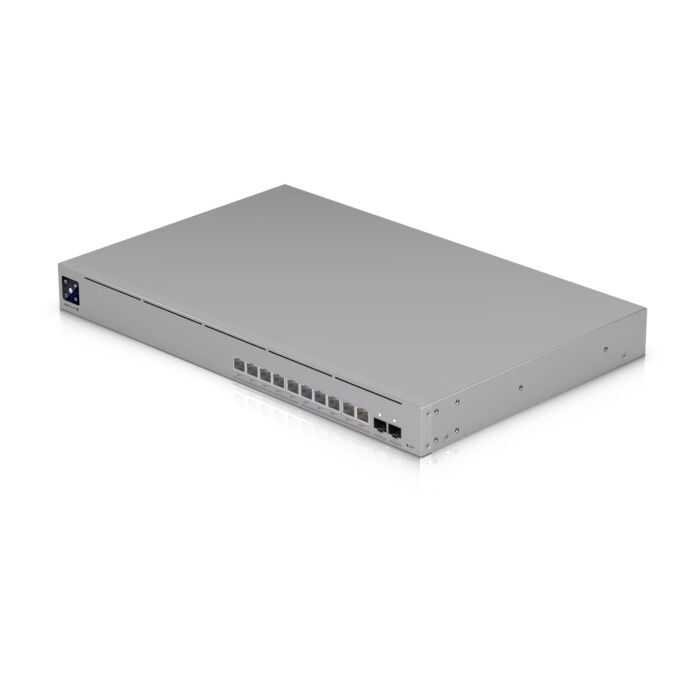

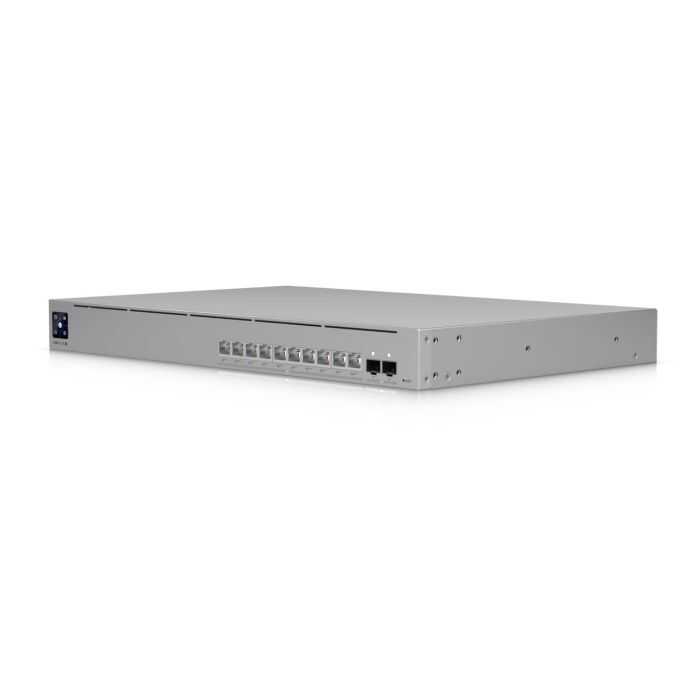

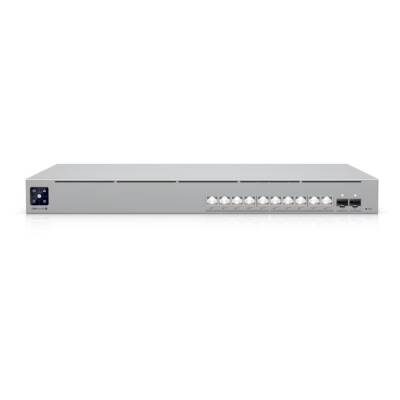

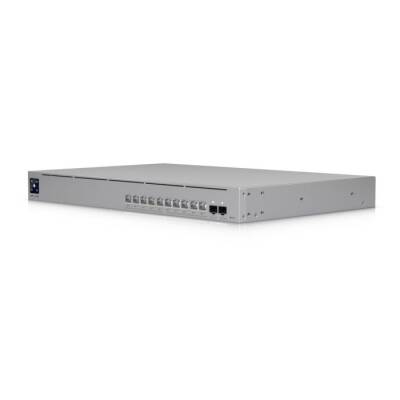

Ubiquiti UniFi Switch Pro XG 10 PoE, is a high-performance, compact, and manageable Layer 3 switch. It is equipped with 10 10G/5G/2.5G/1G/100M RJ45 PoE+++ ports and 2 10G SFP+ uplink ports. With a total PoE budget of 400W, it can power devices with high power requirements. Etherlighting™ technology visually displays port statuses. Its fan-based design provides high-performance cooling. With a rack-mountable (1U) form factor, it is suitable for data centers and large network infrastructures.
| Özellik | Detaylar |
|---|---|

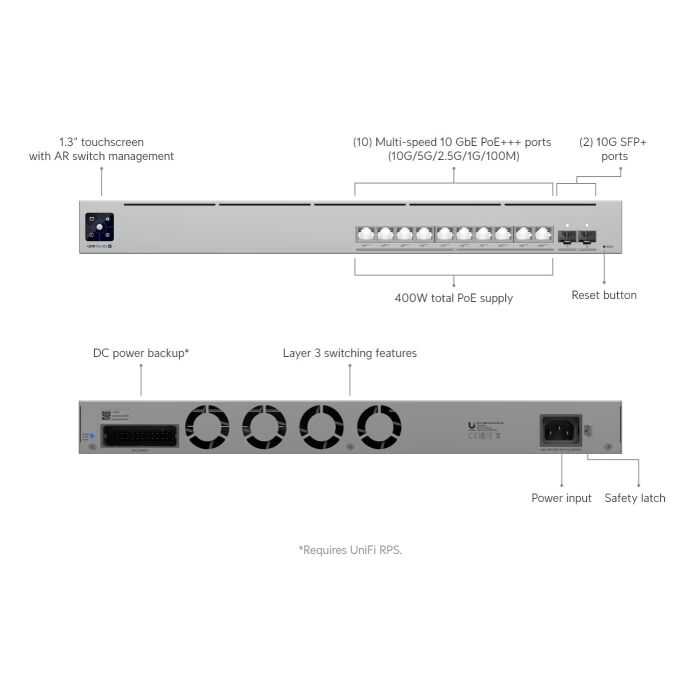

Port Structure | 10 × 10G/5G/2.5G/1G/100M RJ45 PoE+++, 2 × 10G SFP+ uplink |
PoE Support | IEEE 802.3af/at/bt (PoE++, PoE+, PoE) |
Total PoE Budget | 400W |
Layer 3 Features | Static IPv4 routing, DHCP server/relay, inter-VLAN routing |
Layer 2 Features | LACP, STP/RSTP, QoS, IGMP Snooping, 802.1X, ACLs |
Switching Capacity | 240 Gbps |
Non-Blocking Throughput | 120 Gbps |
İletim Hızı | 179 Mpps |
MAC Address Table | 32,000 entries |
VLAN Support | 1.000 VLAN |
Port Buffer Size | 2 MB |
Assembly Options | Rack-mountable (1U) |

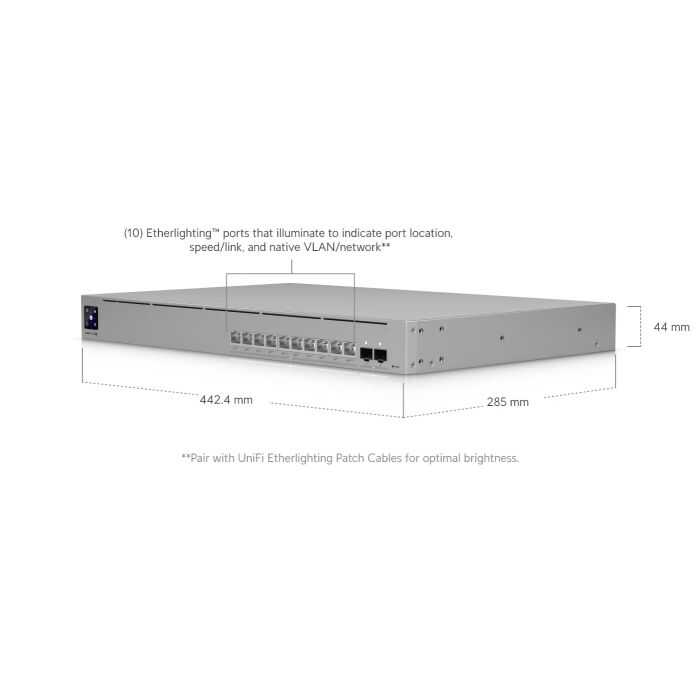

Dimensions (WxDxH) | 442.4 × 285 × 44 mm |
Ağırlık | 4.6 kg (4.7 kg with handle) |
Malzeme | Metal safe |
Power Consumption | Maximum 520W (including PoE load) |
Operating Temperature | Between -5°C and 40°C |
Operating Humidity Ratio | 10% – 90%, non-condensing |
Sertifikalar | CE, FCC, IC |
| NDAA Compliance | Evet |
Maximum PoE Output Per Port: 90W (PoE+++)
Total PoE Budget400W
Power SupplyInternal 550W AC/DC adapter (included)
PoE Standards802.3af/at/bt (PoE++, PoE+, PoE)

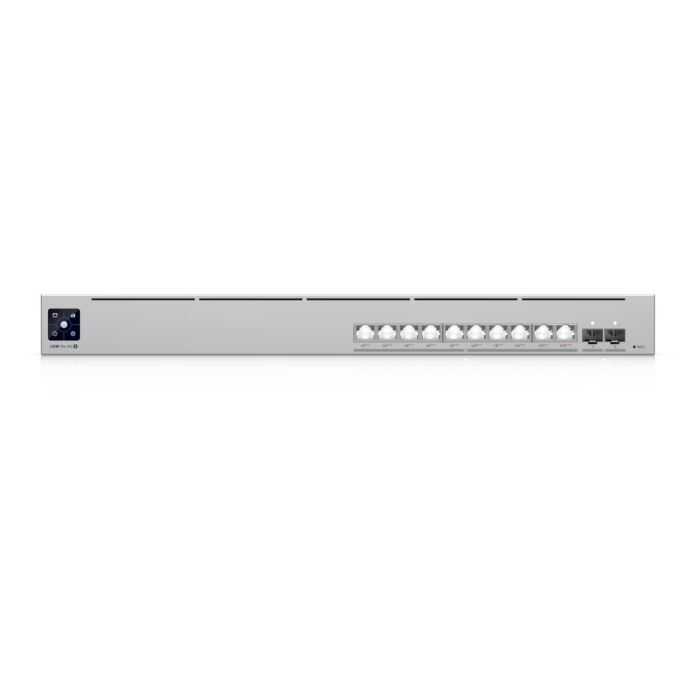

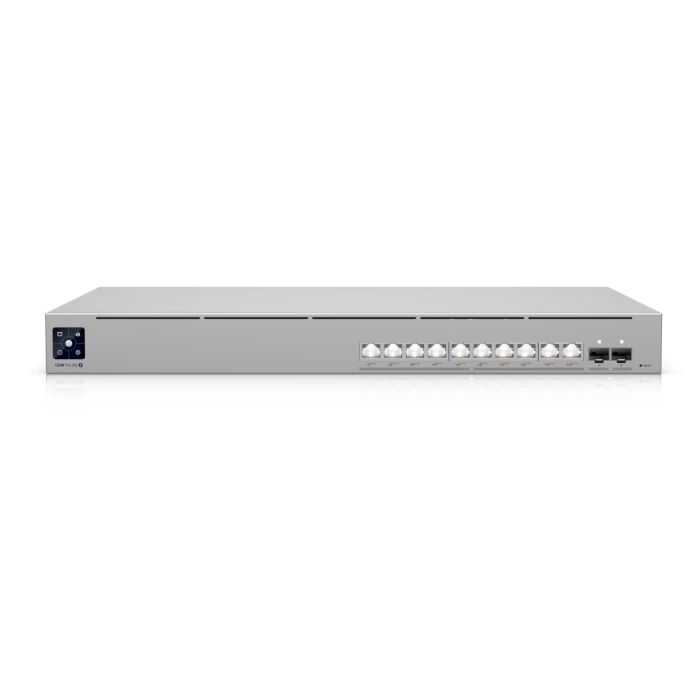

Etherlighting™ Technology: Displays port status with colored LEDs (connection speed, connection status, VLAN assignment)
Networks requiring high performance
4K/8K video streaming and cloud computing applications
VoIP telephone systems and IP cameras
Network infrastructure for small and medium-sized enterprises
Integration with UniFi Access Points and other UniFi devices.
High PoE capacityAbility to supply devices with high power requirements.

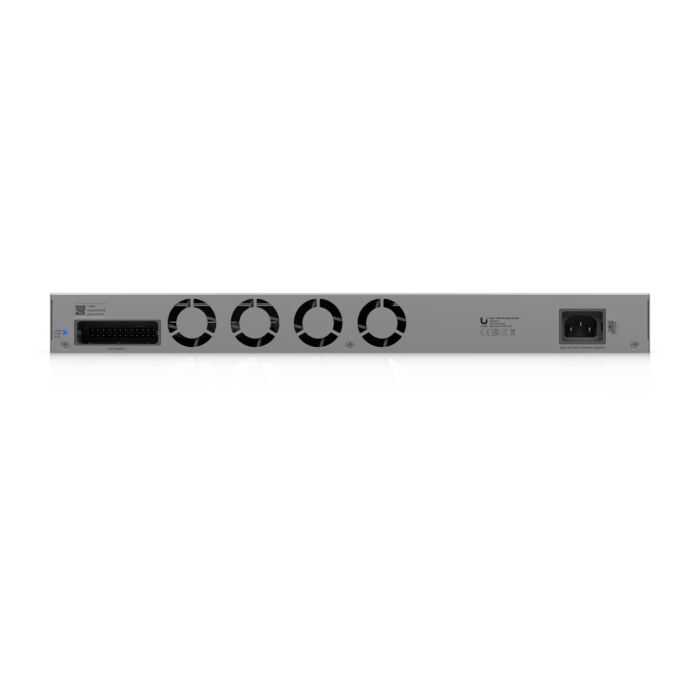

Fan designIt provides high-performance cooling.
Etherlighting™ visual indicatorsAbility to quickly monitor port statuses
Compact dimensionsRack-mountable (1U) form factor suitable for data centers and large network infrastructures.
Layer 3 featuresAdvanced network management and routing options

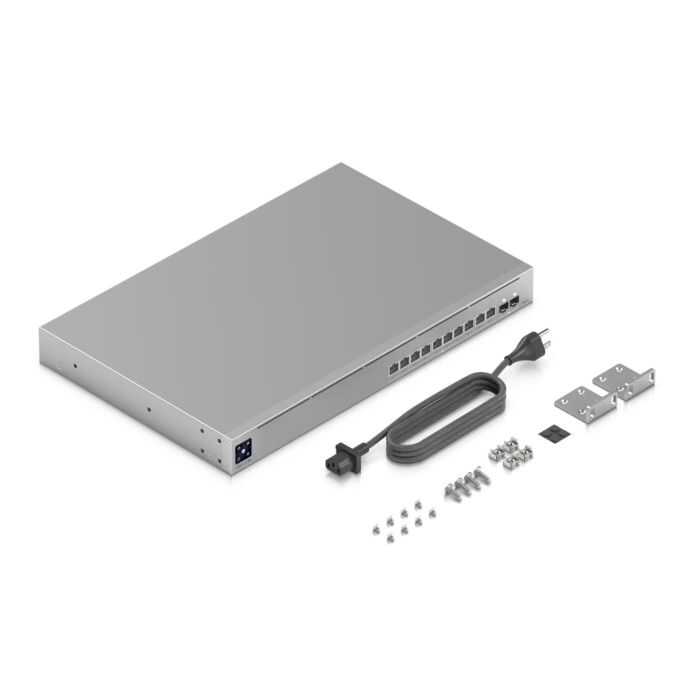

USW-Pro-XG-10-PoE Switch
550W AC/DC Adapter
Rack-mount Brackets
User Manual
