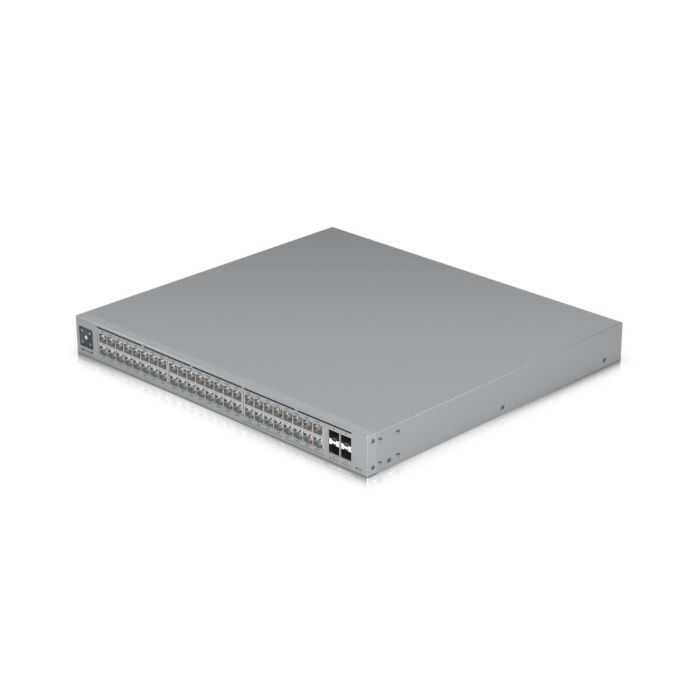

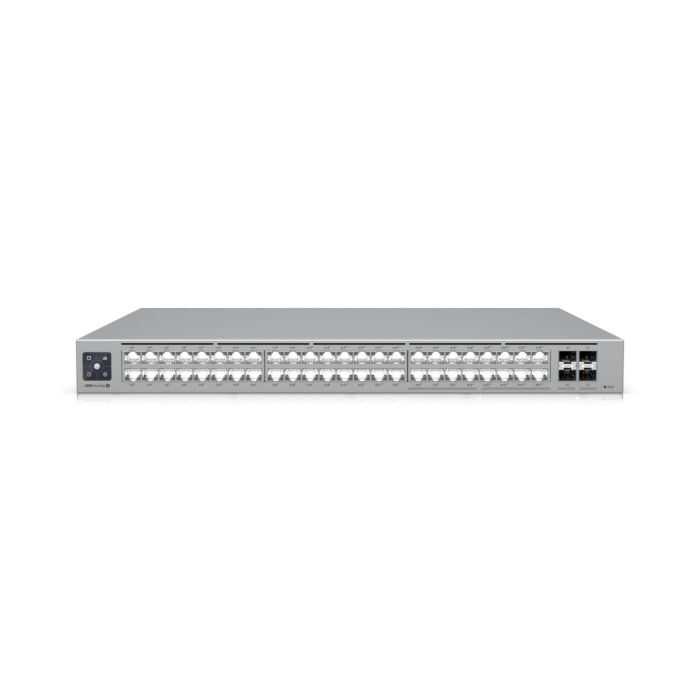

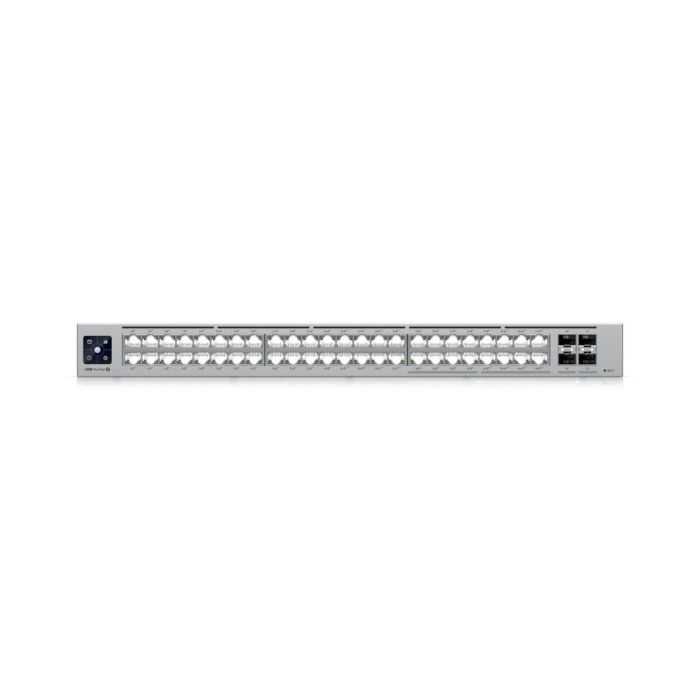

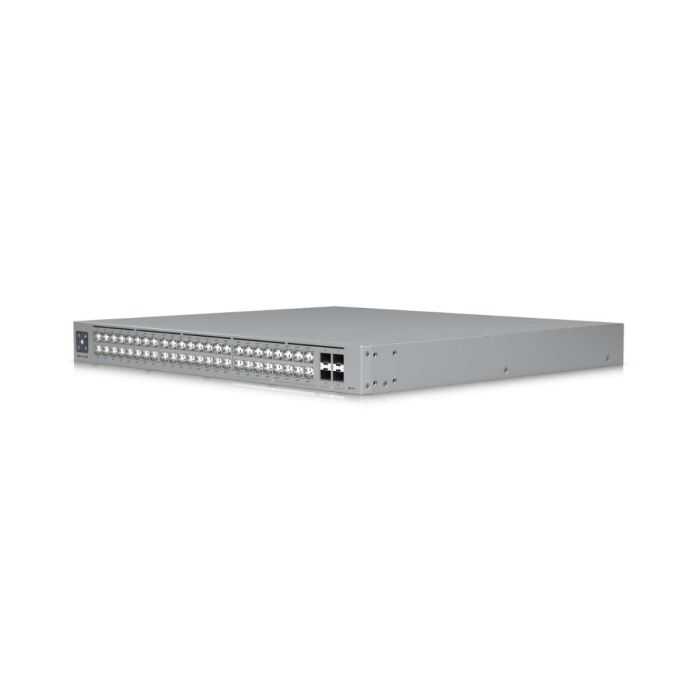

Ubiquiti UniFi Switch Pro Max 48 PoE, is a high-performance, manageable Layer 3 switch. It is equipped with 48 PoE ports, 4 10G SFP+ uplink ports, and Etherlighting™ technology. With a total PoE budget of 720W, it can power high-power-demand devices. You can visually monitor port statuses via its 1.3-inch touchscreen and Etherlighting™ LED indicators. Its rack-mountable (1U) form factor makes it suitable for data centers and large network infrastructures.
| Özellik | Detaylar |
|---|---|
Port Structure | 32 × 1GbE RJ45 PoE+, 16 × 2.5GbE RJ45 PoE++, 4 × 10G SFP+ uplink |
PoE Support | IEEE 802.3af/at/bt (PoE+, PoE++) |
Total PoE Budget | 720W |
Layer 3 Features | Static routing, inter-VLAN routing, DHCP server/relay |
Layer 2 Features | LACP, STP/RSTP, QoS, IGMP Snooping, 802.1X, ACLs |
Switch Capacity | 224 Gbps |
Non-Blocking Throughput | 112 Gbps |
İletim Hızı | 166.656 Mpps |
MAC Address Table | 128,000 entries |
VLAN Support | 1.000 VLAN |
Port Buffer Size | 4 MB |
Assembly Options | Rack-mountable (1U) |
Dimensions (WxDxH) | 442.4 × 399.6 × 43.7 mm |
Ağırlık | 6.2 kg (6.3 kg with mounting brackets) |
Malzeme | SGCC steel case |
Power Consumption | Maximum 100W (excluding PoE output) |
PoE Voltage Range | PoE: 44–57V, PoE+: 50–57V |
Ekran | 1.3 inch touch screen |
Operating Temperature | Between -5°C and 40°C |
Operating Humidity Ratio | 10% – 90%, non-condensing |
Sertifikalar | CE, FCC, IC |
| NDAA Compliance | Evet |
Maximum PoE Output Per Port: 60W (PoE++)
Total PoE Budget720W
PoE Standards802.3af/at/bt (PoE+, PoE++)
Etherlighting™ Technology: Displays port status with colored LEDs (connection speed, connection status, VLAN assignment)
Networks requiring high performance
4K/8K video streaming and cloud computing applications
VoIP telephone systems and IP cameras
Network infrastructure for small and medium-sized enterprises
Integration with UniFi Access Points and other UniFi devices.
High PoE capacityAbility to supply devices with high power requirements.
Etherlighting™ visual indicatorsAbility to quickly monitor port statuses
Compact dimensionsRack-mountable (1U) form factor suitable for data centers and large network infrastructures.
Layer 3 featuresAdvanced network management and routing options
USW-Pro-Max-48-PoE Switch
820W AC/DC Adapter
Rack-mount Brackets
User Manual
