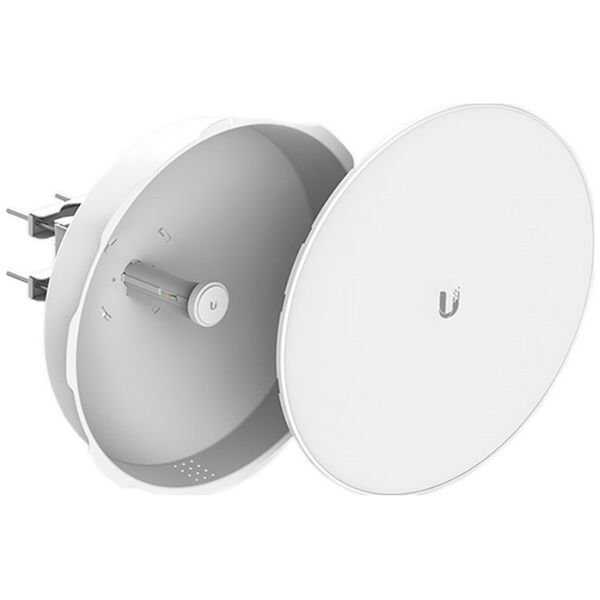

Ubiquiti PowerBeam M5 300 ISODesigned with a 300 mm diameter insulated parabolic reflector antenna operating in the 5 GHz frequency band, for long-rangepoint to point (PtP)It is the ideal outdoor CPE device for wireless connections. Its isolated antenna structure minimizes interference, providing a stable and clean signal.
🔌 Connections & Ports
1 × 10/100/1000 Mbps Gigabit Ethernet port
Easy power supply with passive PoE support (24V, 0.5A)
Easy and quick installation, plug-and-play design
📡 Wireless Features
Frequency Range: 5150 – 5875 MHz
Antenna Gain: 23 dBi
300 mm diameter insulated parabolic reflector antenna
airMAX TDMA technology provides low latency and high performance.
2x2 MIMO technology
Channel Width: 20 / 40 MHz
Dual-linear polarization
⚙️ Hardware Specifications
560 MHz Atheros MIPS processor
64 MB DDR2 RAM, 8 MB flash memory
Maximum power consumption: 6.5W
Integrated temperature sensors ensure the device's optimal operation.
LED indicators: Power, LAN, Signal status
🌦️ Durability & Environmental Conditions
UV resistant outdoor housing
IP54 water and dust protection
Operating Temperature: -40°C to +70°C
Wind resistance: 200 km/h
Prevents interference and signal confusion with isolated antenna design.
🛠️ Advanced Features
airOS operating system with advanced management
QoS (Quality of Service) support with data traffic prioritization
Spectrum analysis and interference management
VLAN and advanced security protocols
Providing uninterrupted power with redundant PoE ports.
🛠️ Areas of Use
Medium and long-range point-to-point wireless connections
Backhaul applications in corporate and WISP network infrastructures.
Security systems and CCTV connections
Campus and wide area networks
📦 Package Contents
PowerBeam M5 300 ISO device
Mounting fixtures (including pole mounting kit)
24V, 0.5A PoE adapter
Power cable
User manual
