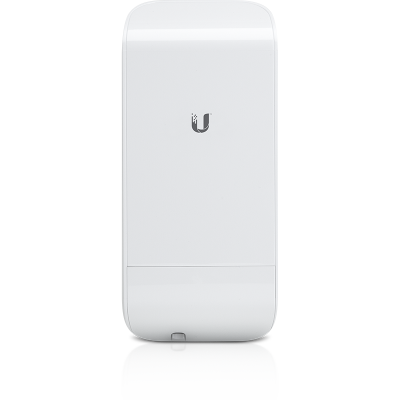

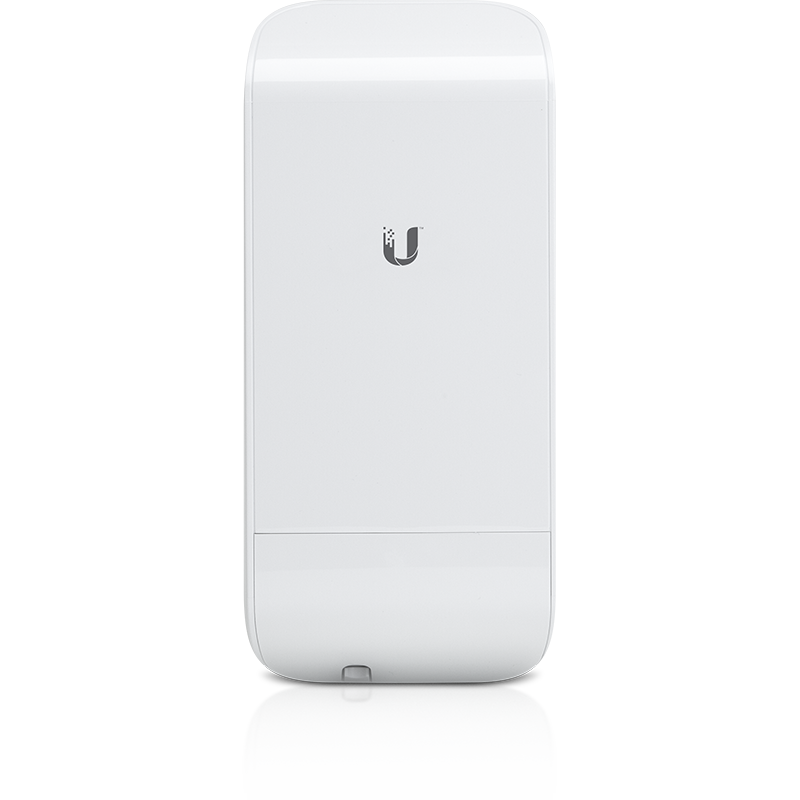

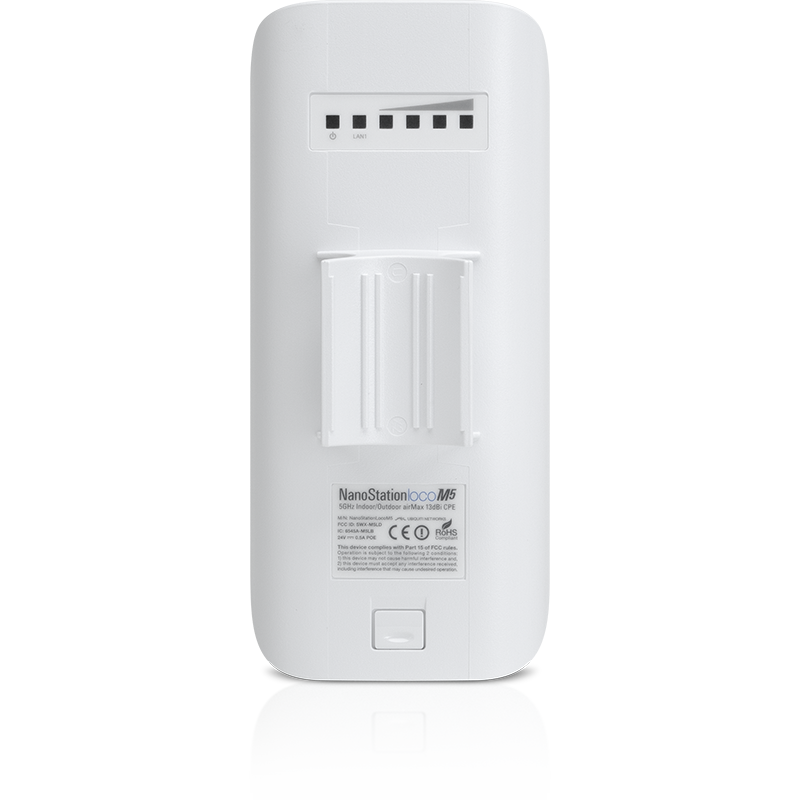

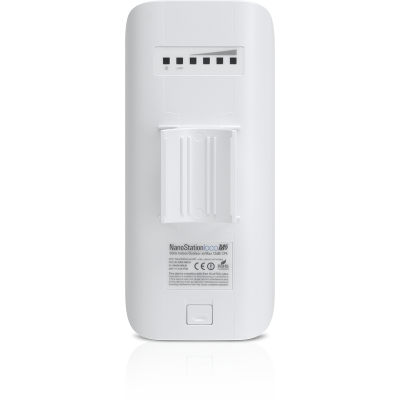

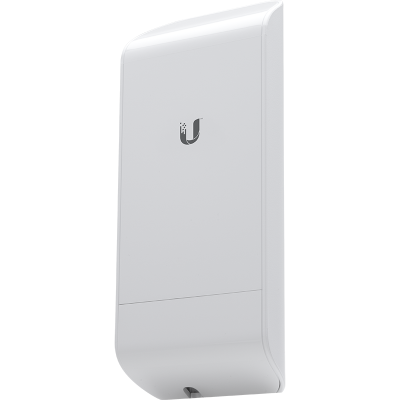

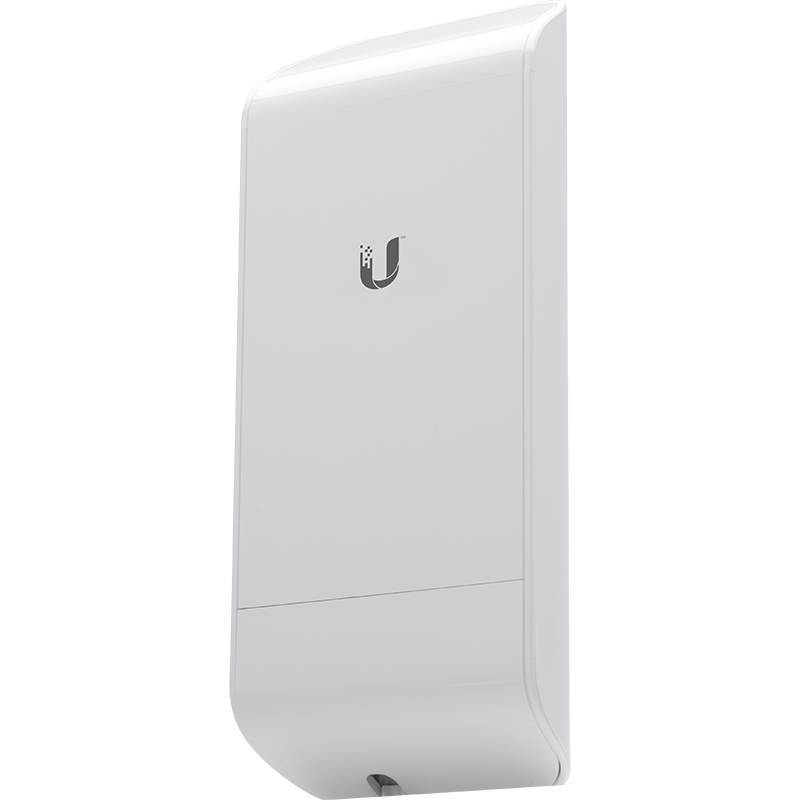

Ubiquiti NanoStation Loco M2 (LOCOM2), Ubiquiti's compact and high-performance outdoor access point operates in the 2.4 GHz frequency band. Due to its small size and integrated antenna, it is particularly preferred for short and medium-range wireless bridging (PtP) and multipoint access (PtMP) applications.
| Özellik | Değer |
|---|---|
| Frequency Range | 2412–2462 MHz |
| Kazanç | 8.5 dBi |
| Polarizasyon | Dual Linear |
| Beamwidth | 60° (H-pol), 60° (V-pol), 60° (Elevation) |
| Cross Polarization Isolation | Minimum 20 dB |
| Max. VSWR | 1.4:1 |
| İşlemci | Atheros MIPS 24KC, 400 MHz |
| Hafıza | 32 MB SDRAM, 8 MB Flash |

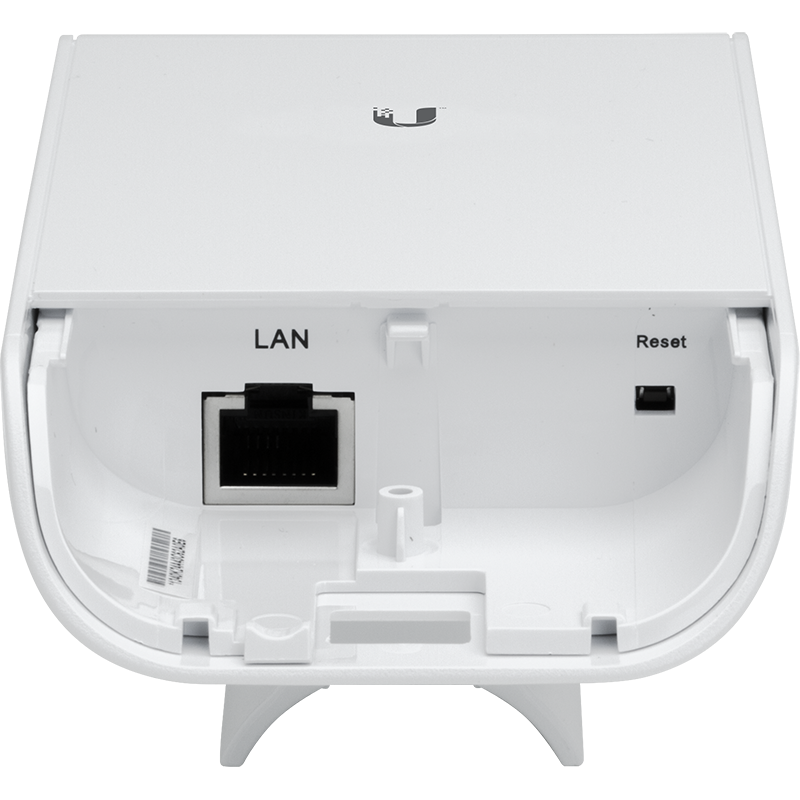

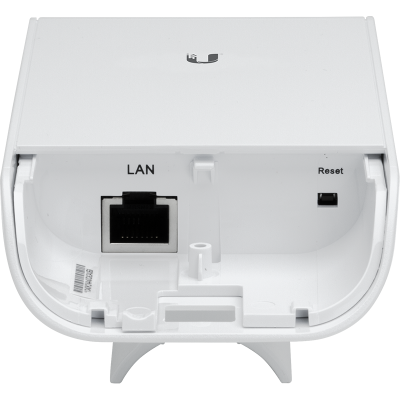

| Ethernet Port | 10/100 Mbps RJ45 |
| PoE Input | Passive PoE (24V, 0.5A) |
| Max. Power Consumption | 5.5W |
| Operating Temperature | Between -30°C and +75°C |
| Boyutlar | 161 x 31 x 80 mm |
| Ağırlık | 180 g |
Compact DesignIts small size allows for easy installation in limited spaces.
High PerformanceWith an 8.5 dBi gain antenna, it provides stable connections up to 10 km.
Flexible InstallationThe access point (AP) supports various operating modes such as client (Station) and WDS modes.
Ubiquiti UNMS SupportIt is compatible with Ubiquiti's UNMS platform for network management and monitoring.
Ethernet SpeedThe Ethernet port operates at 100 Mbps; this may be limiting for high-speed internet connections.
Frequency CongestionThe 2.4 GHz band is more susceptible to interference and channel congestion due to heavy usage.
Update RequirementIf it is to be used in access point mode, the device's software must be up to date and configured with a 20 MHz bandwidth.
Ubiquiti NanoStation Loco M2With its affordable price and compact design, it is an ideal solution for small and medium-scale wireless network projects. However, for high-speed internet connections and heavy traffic requirements, it is recommended to prefer newer and higher-speed devices.
