LBE-M5-23

📡 LBE-M5-23 – 5GHz LiteBeam M Series Directional Antenna

Ubiquiti LBE-M5-23, it is a high-gain, directional 5GHz CPE device designed for long-range connections. Thanks to its compact structure and easy installation, it is an ideal choice for wireless network solutions. It is particularly preferred for point-to-point (PtP) and point-to-multipoint (PtMP) connections.

🔌 Connections & Ports

• 1 × 10/100 Mbps RJ45 Ethernet port

• PoE supported (Power over Ethernet)

• Connection Type: Auto-negotiation supported

📡 Wireless Features

• Frequency: 5 GHz

• Antenna Gain: 23 dBi directional antenna

• Working Distance: Suitable for long-distance outdoor connections.

• Polarization: Dual-polarized

⚙️ Technical Specifications

• Processor: Atheros MIPS 74Kc, 550 MHz

• RAM: 64 MB DDR2

• Storage: 8 MB Flash

• Maximum Power Consumption: 4W

• Power Supply: 24V PoE adapter (included)

🌡️ Working Conditions

• Operating Temperature: -40°C – 70°C

• Operating Humidity: 5% – 95% (non-condensing)

🛠️ Areas of Use

• Point-to-point (PtP) wireless connections

• Rural network solutions

• Long-range connection for IP camera systems

• Wireless internet service providers (WISP)

🔒 Security & Durability

• Weather-resistant outer casing

• ESD/EMP protection

• CE, FCC, and RoHS certificates

📦 Package Contents

• LBE-M5-23 Device

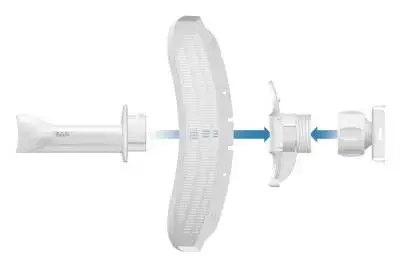

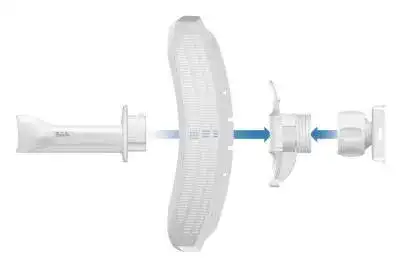

• Assembly Fixtures

• PoE Adapter and Power Cable

• User Manual
