AM-5AC21-60

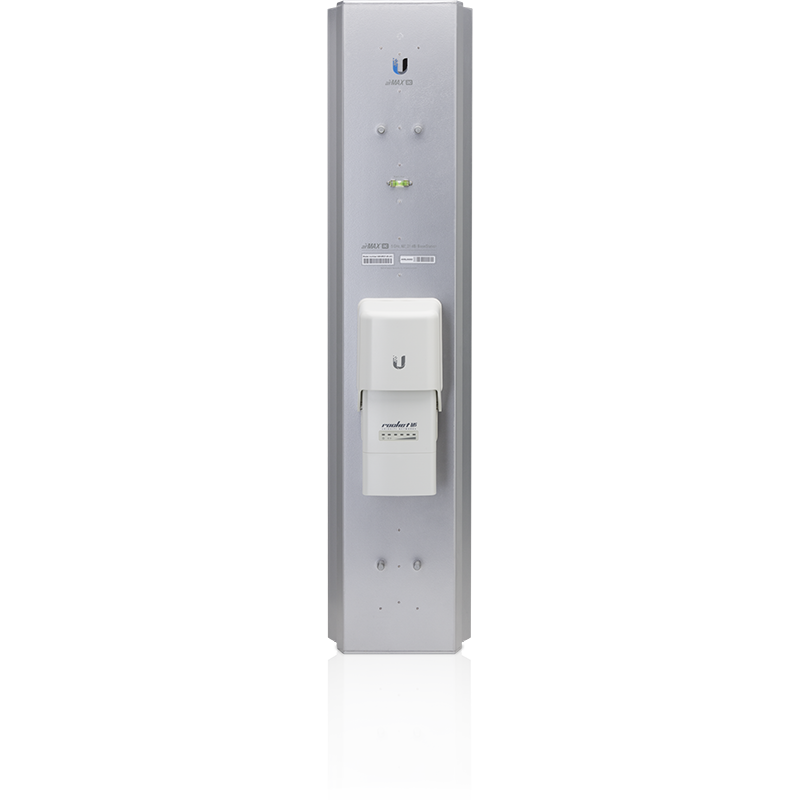

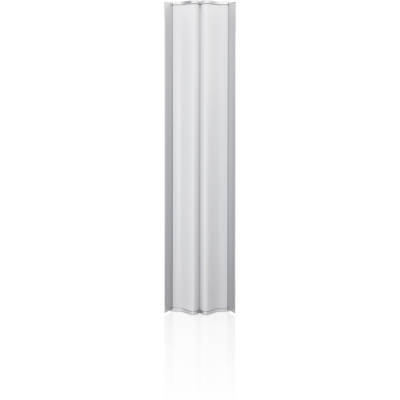

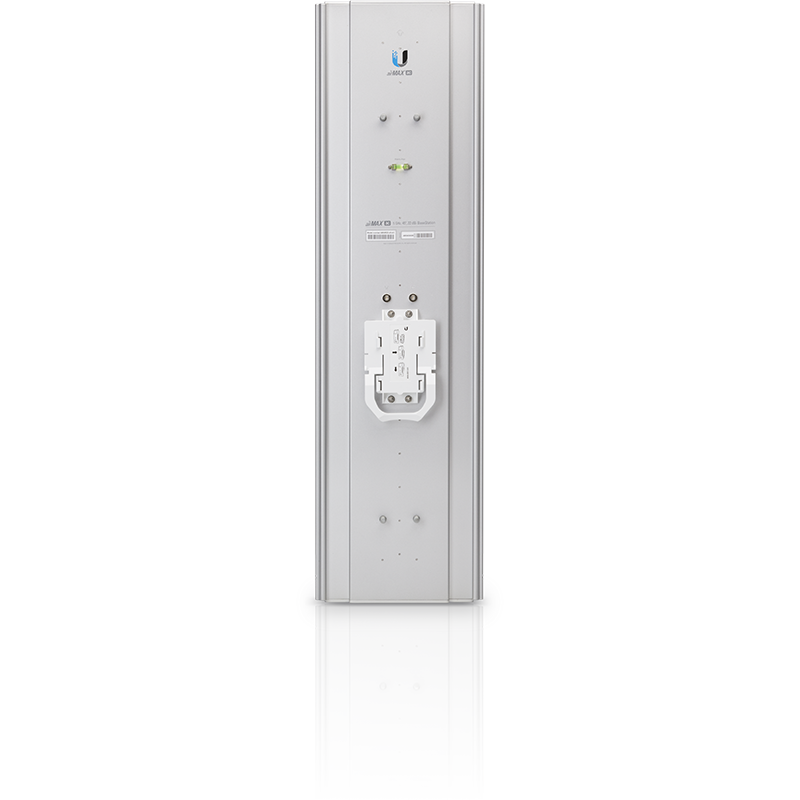

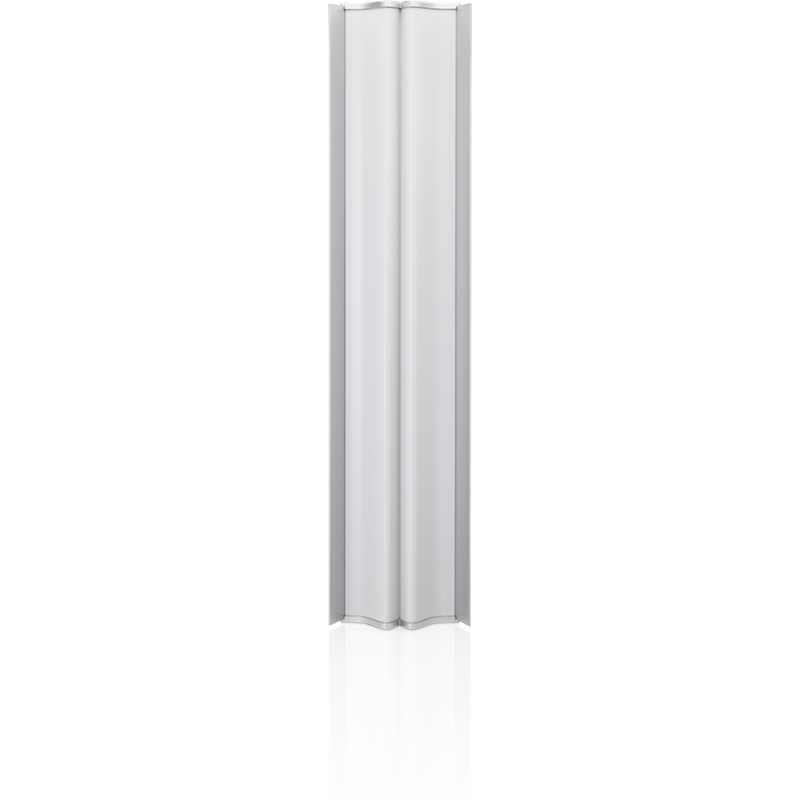

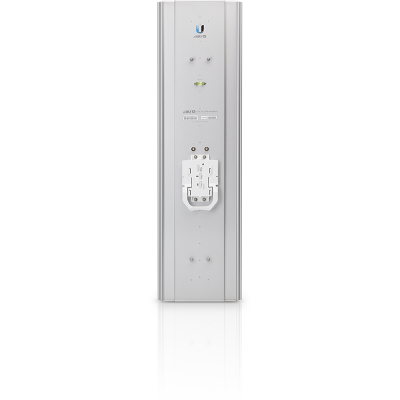

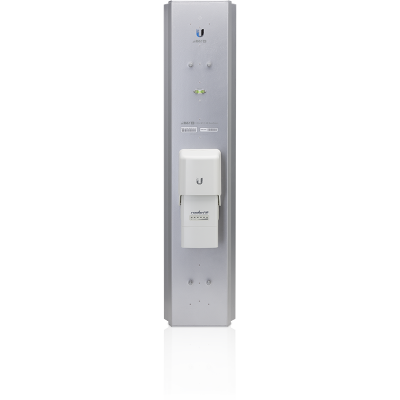

📡 AM-5AC21-60 – airMAX AC 5GHz 21dBi 60° Sector Antenna

Ubiquiti AM-5AC21-60, a high-performance airMAX AC technology, operating at 5 GHz frequency, with 21 dBi gain and 60° anglesectoral directional antennaIt is fully compatible with the Rocket 5AC BaseStation. It offers wide coverage with high data transfer and low latency.

🔌 Connection & Compliance

• RF Connector: 2 × RP-SMA Female

• Compatible Devices: Rocket 5AC Lite, Rocket Prism 5AC

• Assembly: Quick and easy installation with integrated Rocket mount.

📡 Wireless Features

• Frequency Range: 5.10 – 5.85 GHz

• Antenna Gain: 21 dBi

• Horizontal Spread Angle: 60°

• Vertical Beamwidth: 6°

• Polarization: Dual-linear

• Technology: airMAX AC TDMA protocol for high performance

⚙️ Physical Properties

• Dimensions: 750 × 140 × 79 mm

• Weight: 2.4 kg

• Material: UV protected, weather-resistant outer casing

• Wind Resistance: Durable up to 200 km/h

🌦️ Durability & Environmental Conditions

• Operating Temperature: -40°C ~ +80°C

• Humidity Resistance: 5% – 95% (non-condensing)

• Optimized for outdoor installations.

🛠️ Areas of Use

• Point-to-multipoint (PtMP) connections

• WISP base stations

• High-speed distribution in networks with heavy traffic

• Ideal solution for wide areas such as campuses, sites, and factories.

📦 Package Contents

• AM-5AC21-60 Sectoral Antenna

• Assembly apparatuses (pole kit)

• RF connection cables

• User manual
