Standart
IEEE802.3, IEEE802.3u
Arayüz

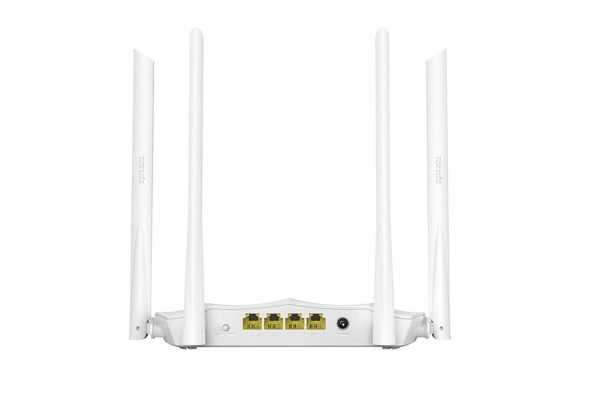

10/100 Mbps WAN port*1
10/100 Mbps LAN port*3
Anten
5dBi External antenna*4
Buton
WPS/Reset button*1, WiFi on/off button*1
Güç
AC input: 100-240V-50/60Hz, 0.2A
DC output: 9V 1A
LED
System*1, WiFi*1, WAN*1, LAN*3
Wireless Speed
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Sıklık
Eşzamanlı çift bant 2.4 GHz ve 5 GHz
Transmission Power
2.4G:
16dbm@MCS7
17dbm@OFDM 54M
19dbm@CCK 11M
5G:
12dbm@MCS9
14dbm@MCS7
Basic Features
SSID Broadcast: Enable/Disable
Beamforming
MU-MIMO
Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS (WiFi Protected Setup) quick encryption
Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE (Russia), PPTP (Russia), L2TP (Russia)
Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode
AP Mode
DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwarding
DMZ Host
UPnP
Güvenlik
Client Filter (supports blacklist and whitelist)
Parental Control
Remote Management
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS
Support DDNS, No-ip, 3322.org, Oray.com, 88ip
VPN
Ipsec
PPTP
L2TP
PPTP client
L2TP client
Özellikler
PPPoE Username/Password Clone
Akıllı WiFi Zamanlama
Akıllı Uyku Modu
Smart LED on/off
Tenda WiFi App
Diğer
Bandwidth Control
Guest Network
IPTV
MAC Address Clone
Static Routing
System Log
Backup & Restore configurations
Online firmware upgrade
Local firmware upgrade
Sıcaklık
Operating Temperature: 0℃ - 40℃
Storage Temperature: -40℃ -70℃.
Nem
Operating Humidity: (10 - 90)% RH non-condensing
Storage Humidity: (5 - 90%) RH non-condensing.
Default Settings
Default Access: tendawifi.com
Belgeleme
CE/FCC/RoHS
Package Content

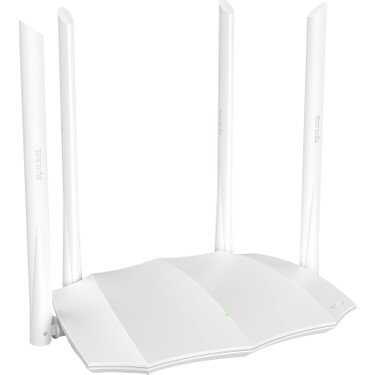

AC1200 Smart Dual-Band WiFi Router
Power Adapter
Quick Installation Guide
Ethernet Cable
