Reyee RG-RAP6262(G) Outdoor WiFi 6 AP

Ruijie Reyee RG-RAP6262(G) is a versatile access point designed for outdoor use, operating on the Wi-Fi 6 AX1800 standard. It has been developed to provide high-performance wireless connectivity, especially in wide open areas such as parks, stadiums, beaches, parking lots, and warehouses.

📡 Wireless Performance

• Wi-Fi Standards: 802.11ax (Wi-Fi 6), 802.11ac Wave2 (Wi-Fi 5), 802.11n (Wi-Fi 4)

• Maximum Speed:

  • 2.4 GHz: 574 Mbps

  • 5 GHz: 1201 Mbps

• Anten: Internal 4 multi-directional high-gain antennas

  • 2.4 GHz: 3 dBi

  • 5 GHz: 4 dBi

• Coverage Area:

  • 2.4 GHz: 100 meters

  • 5 GHz: 300 meters

• Maximum Client Count: 256

• Recommended Number of Clients: 100

• Maximum Number of SSIDs8

⚙️ Hardware Specifications

• Portlar: 2 × 10/100/1000 Mbps Ethernet

• Power Supply:

  • IEEE 802.3at PoE

  • DC 12V/1.5A

• Power Consumption: ≤ 18W

• Boyutlar: 200 × 220 × 166 mm (excluding mounting bracket)

• Ağırlık: 1.2 kg

🌦️ Durability and Environmental Features

• Protection Class: IP68 (dustproof and waterproof)

• Operating Temperature: Between -30°C and +65°C

• Storage Temperature: -40°C to +85°C

• Moisture Resistance: %0 – %100 (non-condensing)

• Lightning Protection6 kV

• Wind Erosion ProtectionThere is

• Flame Retardant External CasingThere is

☁️ Software and Management

• Reyee Mesh Support: Additional outdoor access points can be easily added.

• Cloud Management: Remote monitoring, Wi-Fi management, and portal authentication.

• Smart Wireless OptimizationThere is

🛠️ Installation and Assembly

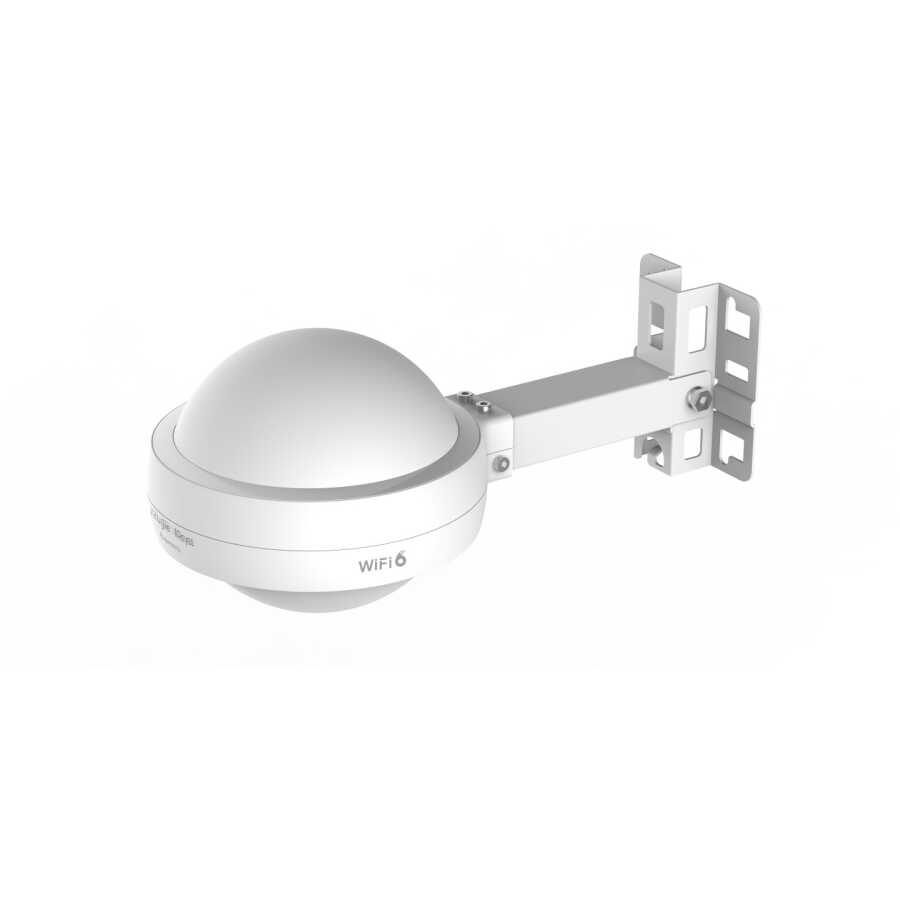

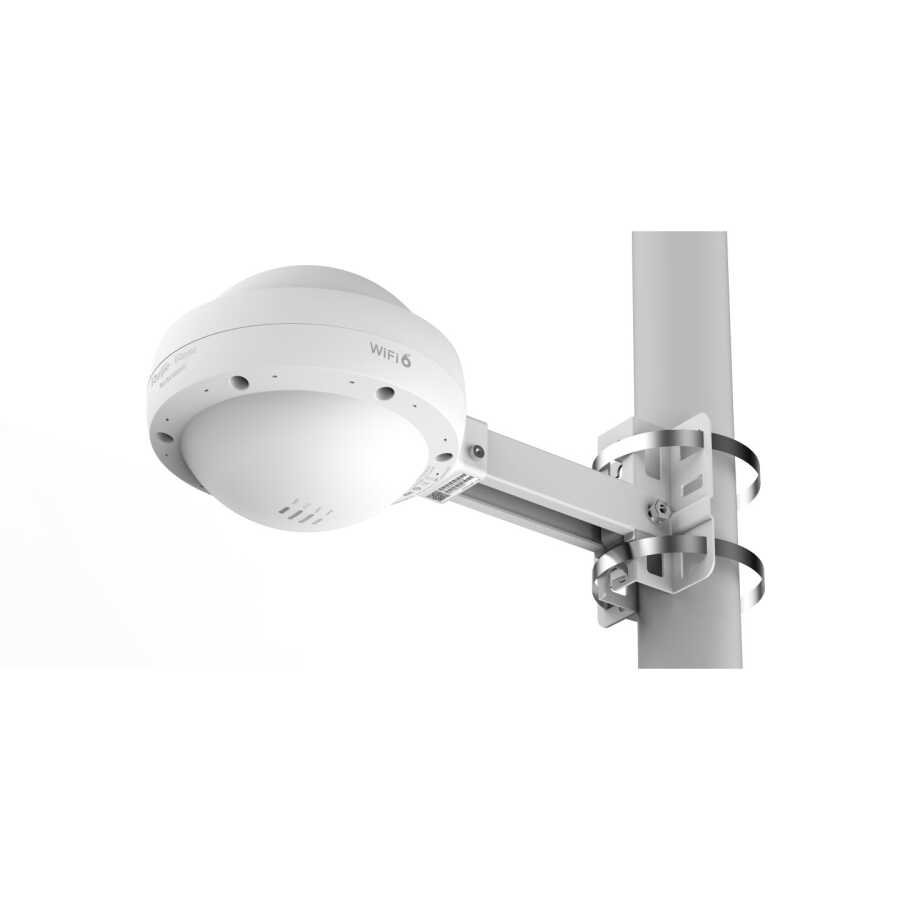

• Assembly Options: Suitable for wall and pole mounting.

• Assembly Design: It provides superior fixation with an iron retaining ring.
