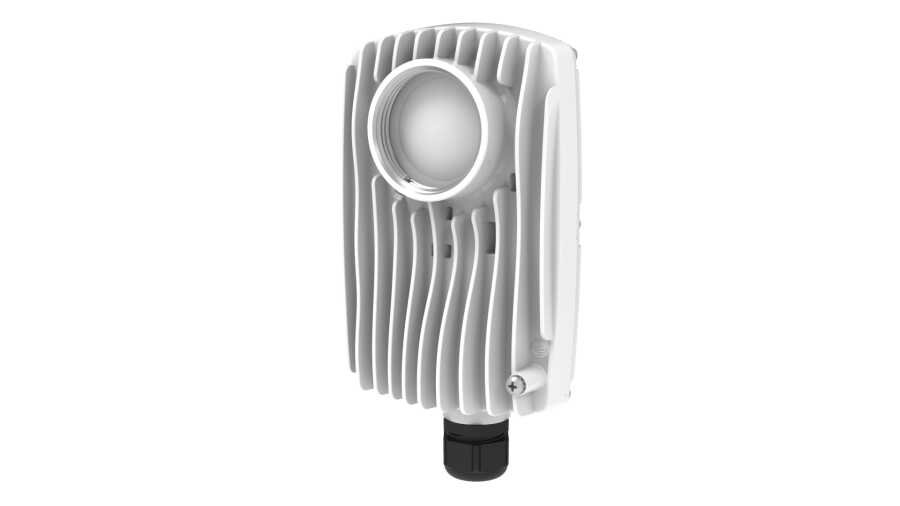

MIMOSA C6X

📡 Mimosa C6x – Technical Specifications

📶 Wireless Features

• Frequency RangeLicensed and Unlicensed Bands4.9 – 6.4 GHz (may vary depending on the supported country)

• Maximum Capacity:1.75+ Gbps(Aggregate throughput – With 160 MHz channel)

• Channel Widths:20 / 40 / 80 / 160 MHz

• ModülasyonQPSK – 1024-QAM (high modulation efficiency)

• TeknolojiOFDM, TDMA, Auto-TDD

• MIMO2x2 MIMO

• PolarizasyonDual-linear

• Antenna Connector1x N-type (compatible with various Mimosa antennas thanks to adaptive antenna structure)

🌐 Connections and Interfaces

• 1x 1 Gbps Ethernet (RJ45)– Passive PoE supported (48-56V)

• BluetoothBluetooth support for installation and management (configuration can be done via mobile device)

🧠 Hardware & Software

• Management Interface:

  • Web UI (browser)

  • Mimosa Cloud

  • Mobile App (via Bluetooth)

• Advanced Features:

  • GPS synchronization

  • Dynamic Frequency Selection (DFS)

  • Automatic channel and power adjustment

  • Network bridging/routing support

  • VLAN support

⚡ Power and Environmental Features

• Power Input48–56V Passive PoE

• Power Consumption: ~9W

• Operating Temperature: -40°C to +55°C

• IP Level: IP67– fully resistant to dust and water

• Boyutlar168 x 84 x 50 mm

• Ağırlık: ~430 g

🎯 Usage Scenarios

• CPE (Customer Premise Equipment)

• Point-to-Point (PtP) veya Point-to-Multipoint (PtMP) backhaul

• Rural and non-urban areas without access to high-speed internet

• Scalable wireless ISP solutions

🔧 Compatible Antennas

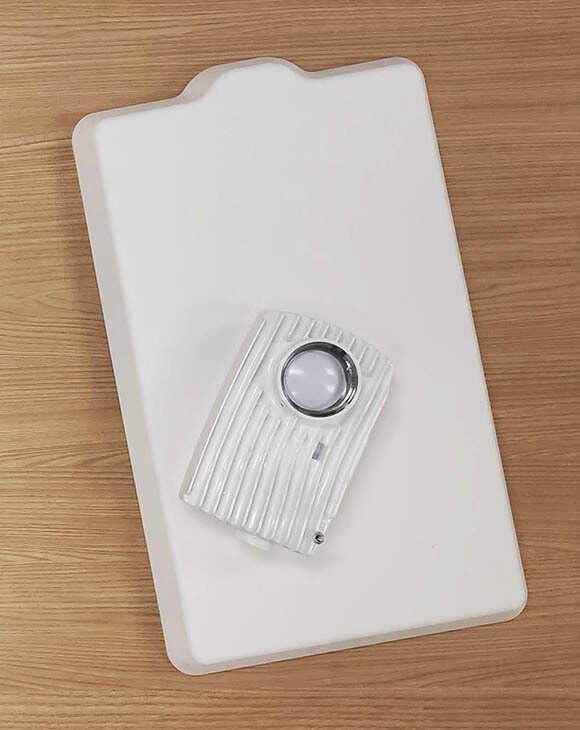

• The C6x is modular in design and is compatible with the following antennas:

  • 12 dBiNID antenna

  • 16 dBiHorn antenna

  • 20 dBi, 25 dBi veya 29 dBiparabolic antennas (for long distance)

✅ Featured Advantages

• 1.75+ Gbps speed– fiber-like experience

• Unlicensed band supportwith quick setup

• Easy setup via Bluetooth

• Modular antenna structurewith flexibility and scalability
