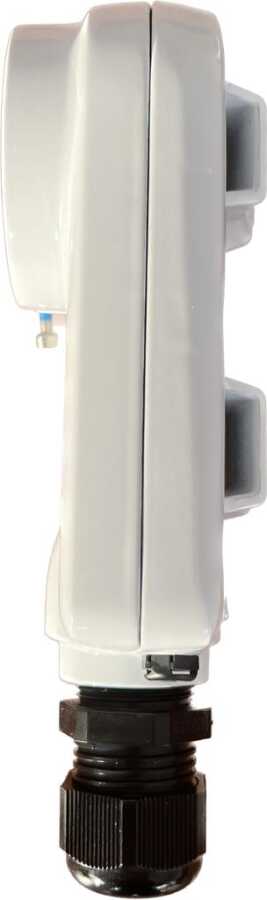

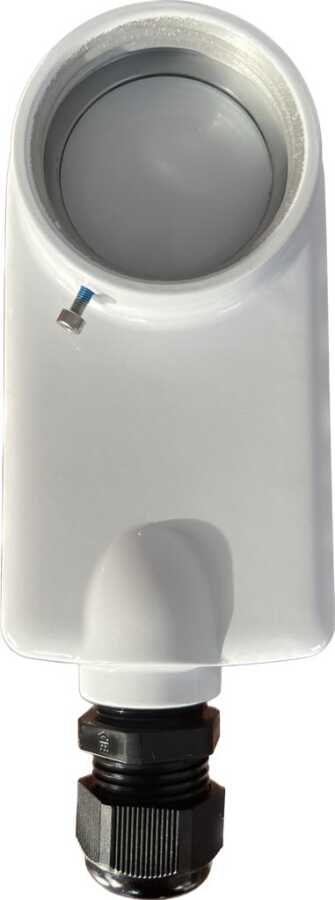

C5x IP67

Mimosa C5x IP67 is a high-performance, modular radio device operating in the 4.9–6.4 GHz frequency range. Thanks to its IP67 protection class, it is resistant to harsh weather conditions and is ideal for Point-to-Point (PTP) and Point-to-Multipoint (PTMP) applications.

📡 Technical Specifications

• Frequency Range: 4.9 – 6.4 GHz

• Maximum Data Rate: 700 Mbps IP (866 Mbps PHY)

• Modulation and MIMO: 2x2:2 MIMO OFDM, up to 256 QAM

• Channel Width: 20/40/80 MHz, adjustable in 5 MHz increments

• Antenna Options: 8, 12, 16, 20, 25 dBi gain N5-X twist-on antennas

• Maximum Output Power: 27 dBm

• Sensitivity (MCS0):

  • -87 dBm @ 80 MHz

  • -90 dBm @ 40 MHz

  • -93 dBm @ 20 MHz

• Power Consumption: Maximum 12.9 W, Average 9.2 W

• Power Input: Passive PoE (24–56 VDC)

• Connection Type: 1 x Gigabit LAN port

• Mounting Type: Double pole mounting

• Topraklama: Grounding connection point

🛠️ Physical Properties

• Boyutlar: 175 mm (Height) x 70 mm (Width) x 61 mm (Depth)

• Ağırlık: 370 g

• Cash Register Material: Cast aluminum, UV resistant coating

• Protection Class: IP67 (Dust and waterproof)

• Operating Temperature: -40°C to +55°C

• Moisture Resistance: 5% to 100% condensing humidity

• Wind Resistance: 200 km/h (125 mph)

• Shock and Vibration Resistance: ETS 300-019-2-4 class 4M5

• Working Height: 4,420 m (14,500 ft) maximum

🔧 Compatible Antennas

Mimosa C5x is compatible with the following N5-X twist-on antennas:

• N5-X88 dBi

• N5-X12: 12 dBi

• N5-X16: 16 dBi

• N5-X20: 20 dBi

• N5-X2525 dBi

🎯 Application Areas

• Broadband internet service providers

• Public safety and emergency communication networks

• Corporate and campus network connections

• Video security systems

• Smart city applications
