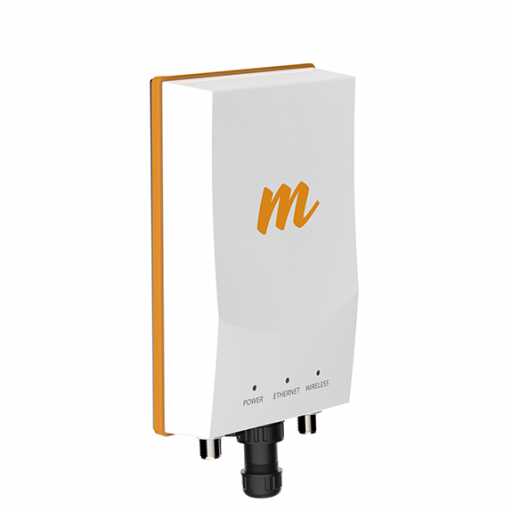

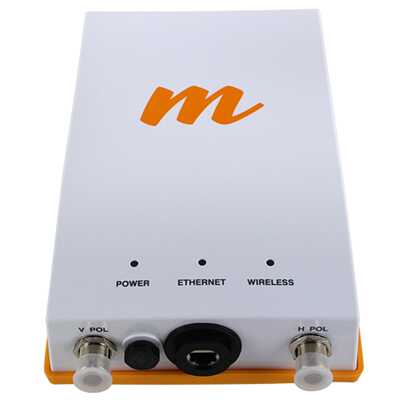

MIMOSA B5C

📡 Mimosa B5c – Technical Specifications

Mimosa B5c is a high-capacity, unlicensed frequency band operating device that offers flexible antenna options.Point-to-Point (PTP)It is a wireless backhaul device. It is particularly ideal for long-distance connections and high bandwidth requirements.

🔧 General Features

• Frequency Range:
  4900 – 6000 MHz (Unlicensed 5 GHz band)

• Channel Widths:
  20 / 40 / 80 MHz supported (DFS supported)

• Maximum Data Rate:
  1.5+ Gbps (aggregate PHY capacity)

• MIMO / Modulation:
  4x4:4 MIMO OFDM
  Support up to 256 QAM.

• Senktronizasyon:
  Time synchronization with GPS (TDMA)

• Operating Modes:
  TDD (Time Division Duplex)

🔌 Hardware and Power

• Ethernet Port:
  2 x Gigabit Ethernet

• PoE Power Input:
  48–56V DC, Passive PoE
  Maximum power consumption: 20W

📏 Physical and Environmental Characteristics

• Antenna Support:
  External N-type connector antenna (2x2 or 4x4 panel or parabolic)

• Protection Class:
  IP67 – Dust and water resistant outdoor device.

• Operating Temperature:
  -40°C to +55°C

• Boyutlar:
  270 mm x 160 mm x 80 mm (wireless unit)

• Ağırlık:
  Approximately 1.5 kg

🎯 Usage Scenarios

• Long distance PTP connections

• Backhaul for Internet Service Providers (WISP)

• Corporate networks and security systems

• Network expansion applications
