RBOmniTikPG-5HacD

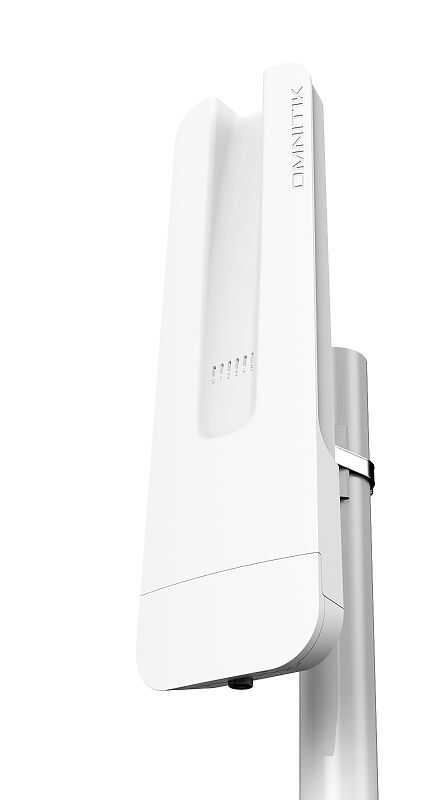

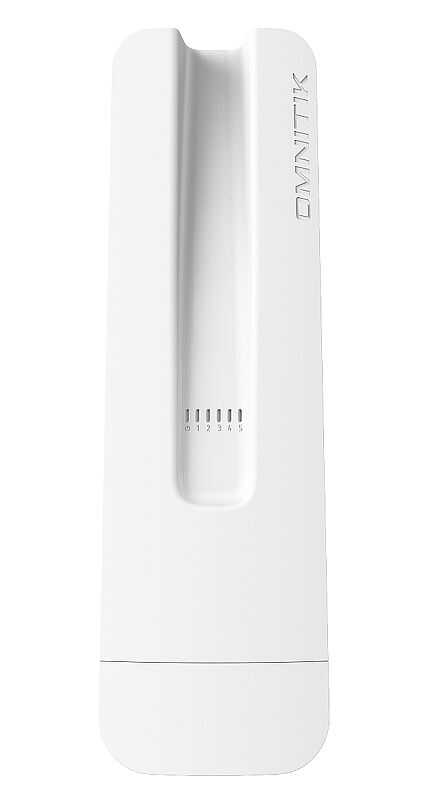

MikroTik RBOmniTikPG-5HacD, at the same timeOmniTIK 5 PoE acIt is a high-performance wireless access point designed for outdoor use, also known as. This device operates in the 5 GHz band and offers wide coverage with its integrated 7.5 dBi dual-polarized omni antennas. Additionally, with PoE output support, it can power other PoE-compatible devices, which reduces cable clutter in the setup.

🔧 Technical Specifications

• Model Code: RBOmniTikPG-5HacD

• İşlemci: QCA9557, 720 MHz

• RAM: 128 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 416 x 129 x 58 mm

• Operating Temperature: Between -40°C and +70°C

• Antenna Gain: 2 x 7.5 dBi (360° coverage)

• Wireless Standards: 802.11a/n/ac (Wi-Fi 5), 2x2 MIMO

• Maximum Wireless Power: 1300 mW

• Wireless Chipset: QCA9892

• Frequency Range: 5150–5875 MHz (may vary depending on country regulations)

🔌 Connection and Power

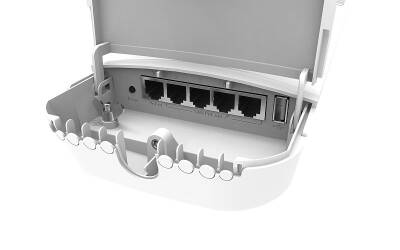

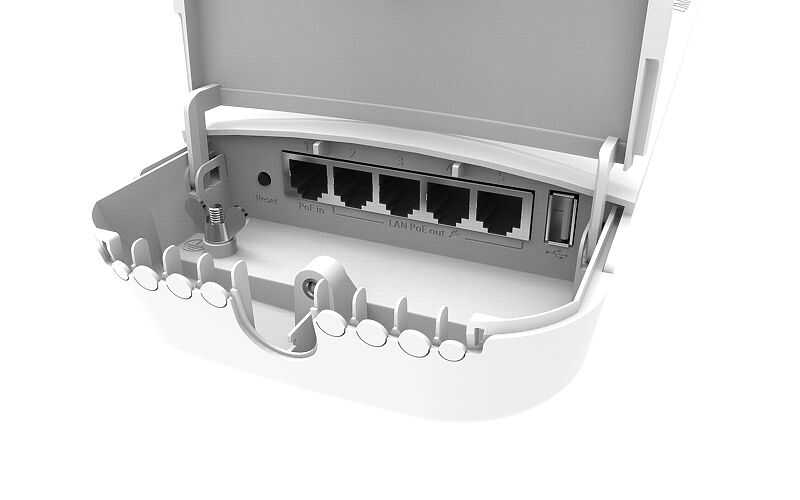

• Ethernet Ports: 5 x 10/100/1000 Mbps Gigabit Ethernet (Ether2–Ether5 PoE output supported)

• PoE Input: Passive PoE or 802.3af/at (12–57 V)

• PoE Output: Via Ether2–Ether5 ports, depending on the input voltage:

  • At <30 V input: Maximum 1 A output

  • At 30 V input: Maximum 0.5 A output

📦 Box Contents

• OmniTIK 5 PoE ac device

• 24V 0.8A power adapter

• PoE injector

• Direct mounting kit

• Metal ring
