RBDYNADİSHG-5HACD

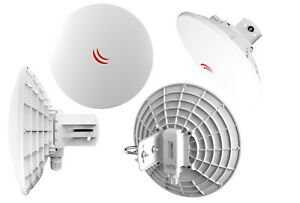

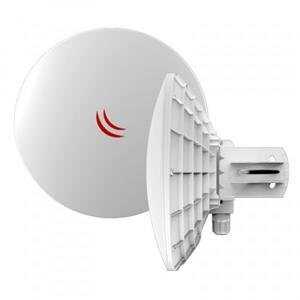

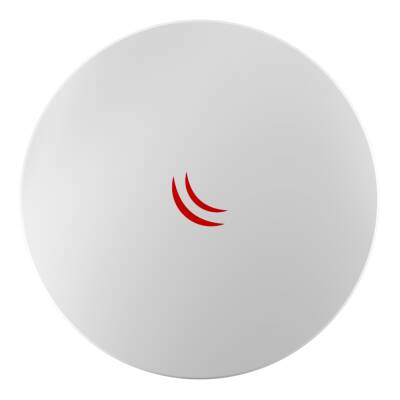

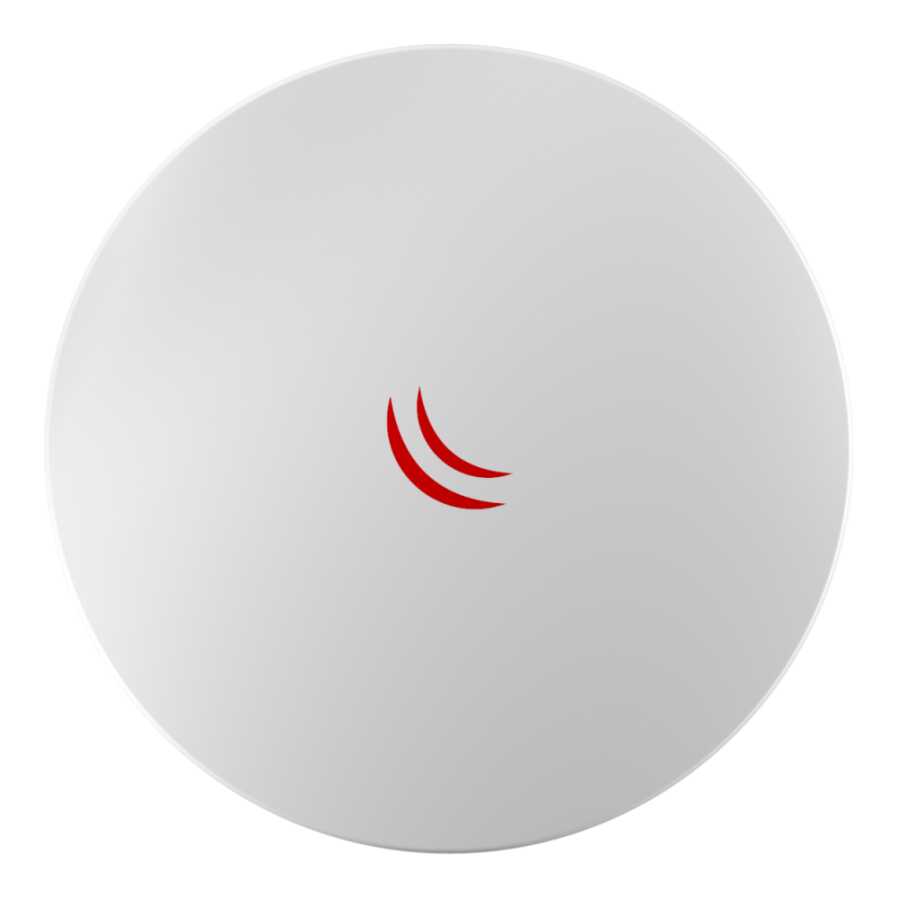

MikroTik RBDynaDishG-5HacD, It is a high-performance 5 GHz outdoor device designed for long-distance point-to-point (PtP) wireless connections, featuring an integrated 25 dBi antenna. This device, which supports the 802.11ac (Wi-Fi 5) standard, is an ideal choice for wireless internet service providers (WISP), security systems, and corporate network solutions.

🔧 Technical Specifications

• Model: RBDynaDishG-5HacD

• İşlemci: Qualcomm QCA9557, 720 MHz, 1 core (MIPSBE architecture)

• RAM: 128 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 3)

• Boyutlar: Ø 404 mm, height 175 mm (excluding mounting device)

• Operating Temperature: Between -40°C and +70°C

• Maximum Power Consumption:9 W

📡 Wireless Features

• Frequency Band: 5 GHz (4920 – 6100 MHz; may vary depending on country regulations)

• Wireless Standards: 802.11a/n/ac (Wi-Fi 5), 2x2 MIMO

• Maximum Data Rate: 867 Mbps

• Antenna Gain: 25 dBi

• Antenna Beam Width: 8°

• Wireless Chipset: QCA9882-BR4A-

🔌 Connection and Power Options

• Ethernet Port: 1 x 10/100/1000 Mbps Gigabit Ethernet

• Power Input: 11–60 V range Passive PoE or 802.3af/at support

• Soğutma: Pasif

🛠️ Other Features

• Montaj: Integrated assembly fixture for precise alignment.

• Protection Class: IP55 (protected against dust and water splashes)

• Voltage and PCB Temperature Monitor: Mevcut
