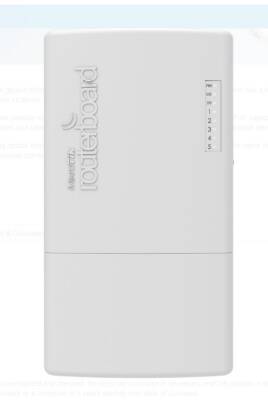

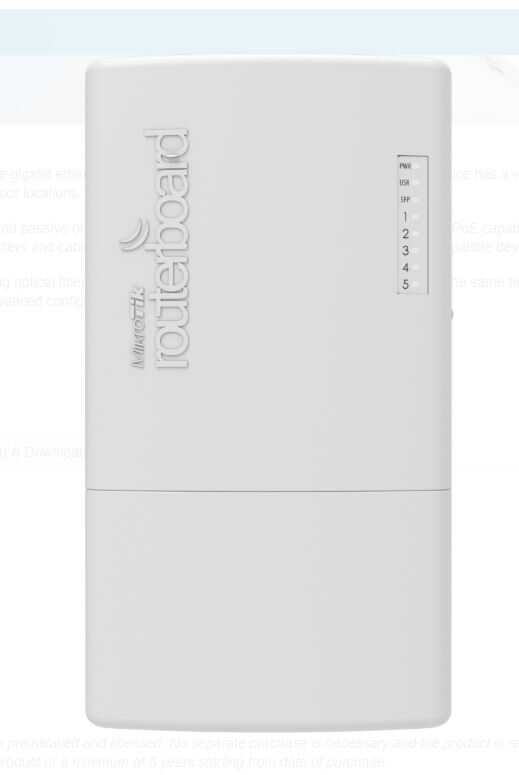

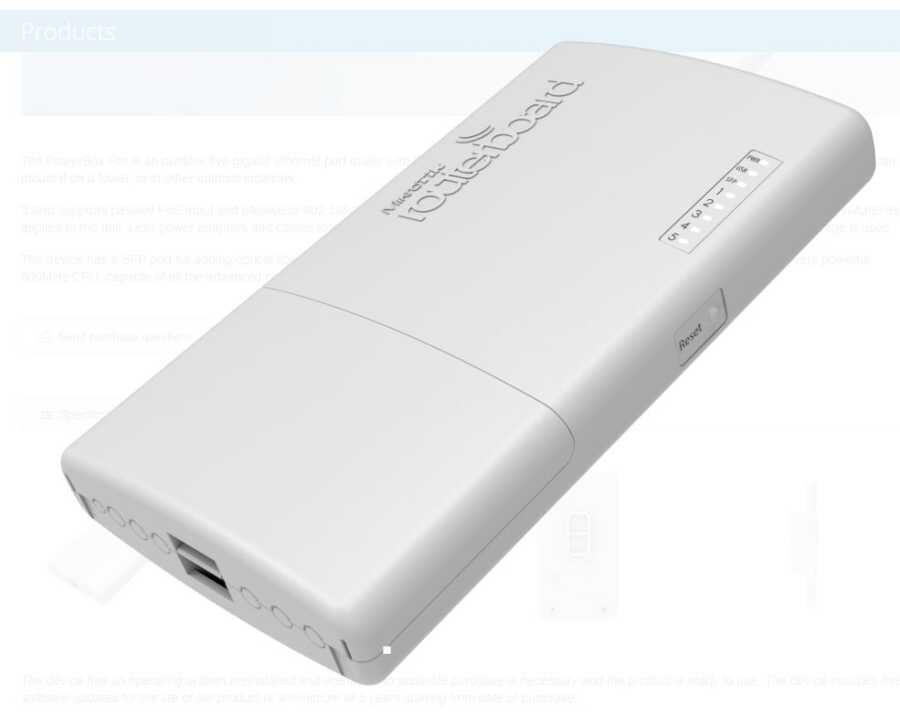

RB960PGS-PB

MikroTik RB960PGS-PB(commonly known among the people ashEX PoE veya RB960PGS-PoEalso referred to as), is a suitable router for small offices or advanced home networks. Here are the basic technical specifications of this device:

📦 General Features

• Model:RB960PGS-PB (PoE-out supported version)

• Seri:hEX PoE

• İşlemci:1 pieceMIPSBE 880 MHz(MediaTek MT7621A)

• RAM: 128 MB DDR2

• Depolama:16 MB Flash

🔌 Portlar

• 5 x Gigabit Ethernetport (10/100/1000 Mbps)

  • Port 2-5:It can provide passive PoE output (PoE-out)

  • Maximum output power is 2A in total (48W when 24V is used).

• 1 x SFP slot(For fiber connection)

⚡ Power Characteristics

• Input Voltage:12-57V (via Passive PoE or DC jack)

• PoE In:Port 1 (does not support 802.3af/at – only passive PoE)

• PoE Out:Port 2-5 (each maximum 1A, total 2A)

• Power Adapter:It usually comes with a 24V 2.5A adapter.

🌐 Yazılım

• Operating System:MikroTik RouterOS (Level 4 license)

• RouterOS has many features such as advanced routing, firewall, hotspot, VPN, queue, and bandwidth management.

📏 Physical Properties

• Boyut:114 x 137 x 29 mm

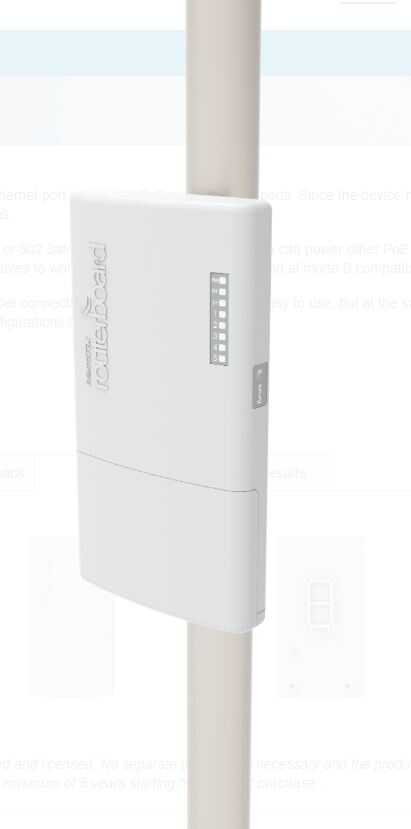

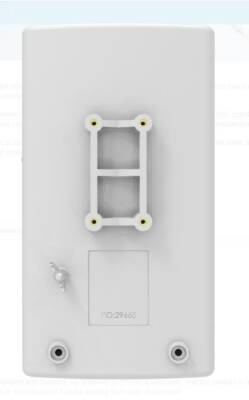

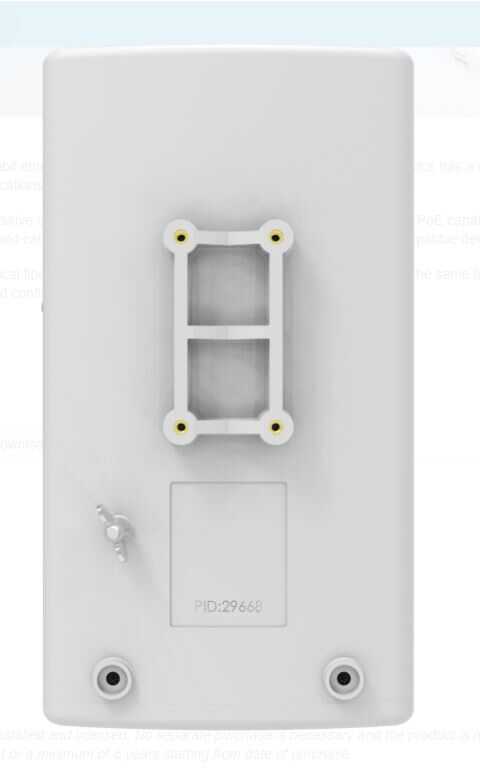

• Montaj:Desktop (wall mount bracket is usually sold separately)

• Operating Temperature:-40°C to +70°C

🎯 Application Scenarios

• Small office router

• To power IP cameras or Access Points with PoE support

• SFP fiber network transitions

• To use as an advanced firewall or VPN gateway.
