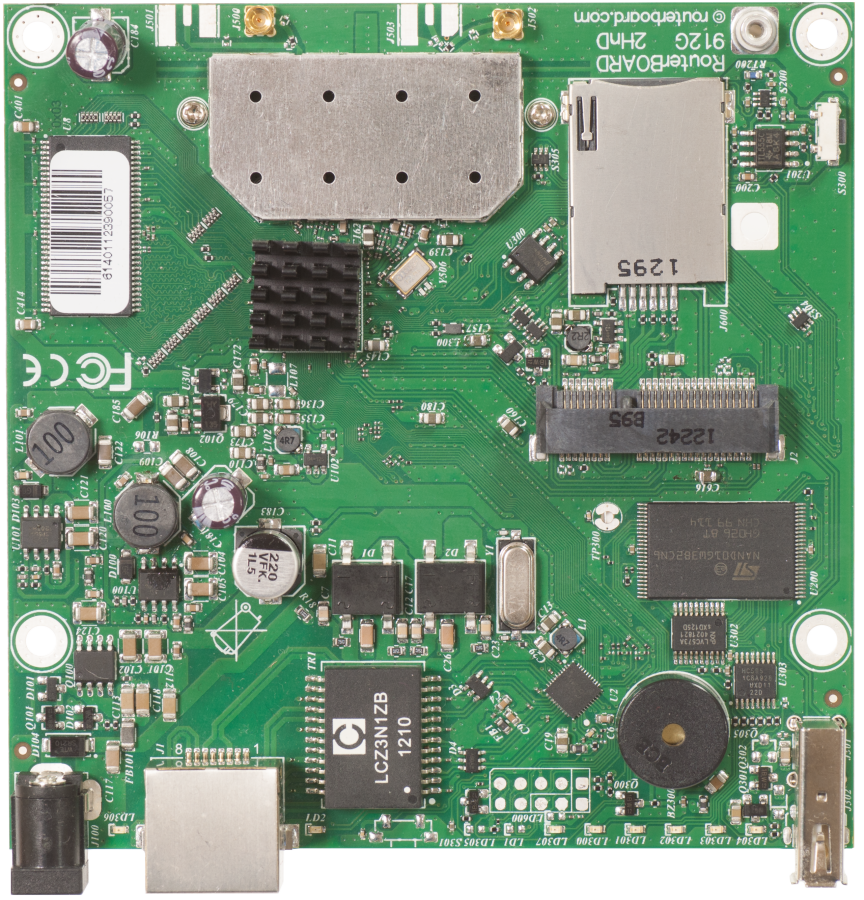

MikroTik RB912UAG-2HPnD is a compact and high-performance wireless router device. It offers flexible expansion options with an integrated 2.4 GHz high-power wireless card and an additional miniPCIe slot. With its Gigabit Ethernet port, it can utilize the full potential of 802.11n wireless speeds.
Product Code: RB912UAG-2HPnD
İşlemci: Atheros AR9342, 600 MHz, 1 core
RAM: 64 MB DDR2
Depolama: 128 MB NAND Flash
Operating System: RouterOS, License Level 4
Boyutlar: 105 x 105 mm
MTBF: Approximately 100,000 hours (at an ambient temperature of 25°C)
Operating Temperature: -40°C to +70°C
Frequency Band: 2.4 GHz (2400–2500 MHz)
Standartlar: 802.11b/g/n (Wi-Fi 4)
Maximum Data Rate: 300 Mbps
MIMO: 2x2 MIMO, dual chain
Antenna Connections: 2 x MMCX
Wireless Chip: AR9342
Output Power: 30 dBm at MCS0, 24 dBm at MCS7
Purchase Sensitivity: MCS0 at -96 dBm, MCS7 at -78 dBm
Ethernet: 1 x Gigabit Ethernet (10/100/1000 Mbps)
USB: 1 x USB 2.0 Type-A (maximum 1A current)
miniPCIe Slot: 1 unit (for 802.11 wireless card, 3G/4G modem or LoRa module)
SIM Slot: 1 x Mini SIM (for 3G/4G modem use)
Power Input: 8–30 V DC (via DC jack or passive PoE)
Maximum Power Consumption: 13.5 W
Soğutma: Pasif
Koruma: 16kV ESD protection on Ethernet and MMCX ports
Hardware Specifications: PCB temperature and voltage monitoring, beeper
RB912UAG-2HPnD device
Power adapter
PoE injector
Assembly accessories
Wireless Access Point (AP): It is ideal for providing wireless access in small and medium-scale networks.
Customer Premises Equipment (CPE): It is available for end-user connections for internet service providers.
Scalable Network Solutions: The miniPCIe slot allows for network capacity expansion with an LTE modem or additional wireless cards.
