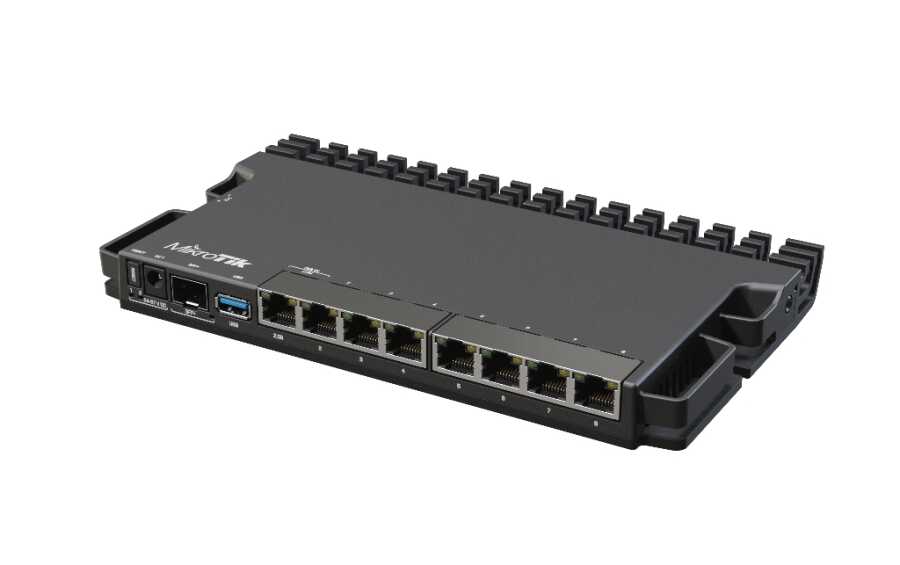

MikroTik RB5009UPr+S+IN, is a router that offers high performance in a compact form factor. This device, ideal for small and medium-sized internet service providers (ISPs), stands out with advanced PoE features, 10 different power supply options, and 10G SFP+ support.
İşlemci: Marvell Armada 88F7040, 4-core ARM64, 350–1400 MHz dynamic frequency
RAM: 1 GB DDR4
Depolama: 1 GB NAND flash
Ethernet Ports:
7 x 10/100/1000 Mbps Gigabit Ethernet
1 x 2.5 Gbps Ethernet
SFP+ Port: 1 x 10 Gbps SFP+
USB Port: 1 x USB 3.2 Gen 1 Type-A
PoE Support:
PoE-IN: 802.3af/at (ether1), Mode B (ether2-ether8)
PoE-OUT: Ether1-Ether8, 802.3af/at
Maximum output power: 25W/port, total 130W
Power Input:
DC Jack: 24–57 V
2-pin terminal: 24–57 V
PoE-IN: 24–57 V
Maximum Power Consumption: 150W
Passive Cooling: Evet
Boyutlar: 220 x 125 x 22 mm
Operating Temperature: -40°C to +60°C
Yazılım: RouterOS v7, Level 5 license

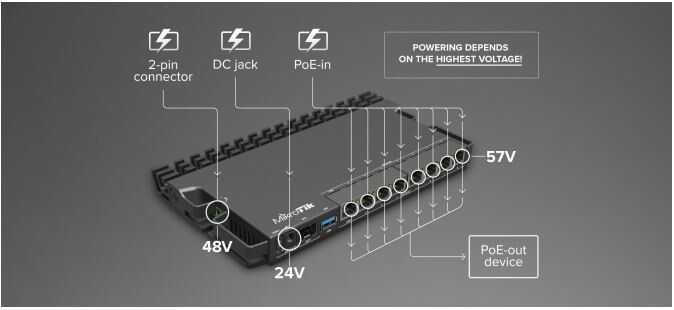

The RB5009UPr+S+IN offers 10 different power supply options. Thanks to its PoE-OUT feature, it can supply power to connected devices. Each PoE-OUT port provides a power output of 640 mA with 18–30 V input and 420 mA with 30–57 V input. A total power output of 130W can be provided. Voltage mixing between power sources is not allowed; the device supplies power to connected devices by using the highest voltage source.
Small and Medium-Sized ISPs: It can enhance network infrastructures with advanced PoE features and high power capacity.
Corporate Networks: It can meet enterprise network needs with high-performance routing and PoE support.
Industrial Applications: IP cameras provide an ideal solution for powering access points and other PoE-supported devices.
