mUPS

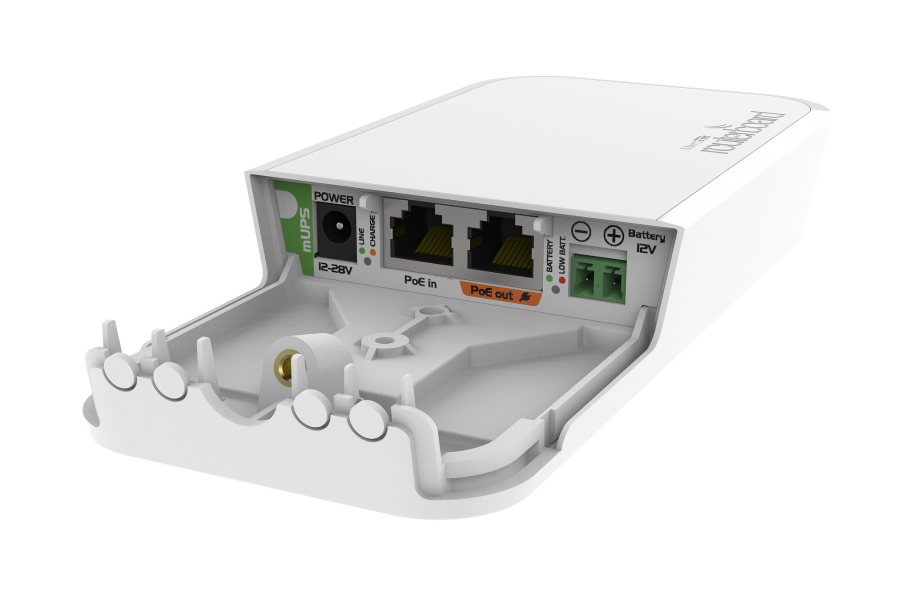

MikroTik mUPS, model, for devices powered over PoE (Power over Ethernet)12 V backup battery supportis a compact power supply that provides. It is designed to ensure the uninterrupted operation of connected devices during power outages.

🔧 Technical Specifications

• Product Code: mUPS

• PoE Input Voltage: 12–28 V DC

• PoE Output Voltage:

  • If input is 12–24 V, then 24 V

  • If input >24 V, same voltage

  • It operates at 20 V with the battery.

• DC Input Voltage: 12–28 V DC

• Battery Connection: 6.3 x 0.8 mm female terminal (T2)

• Maximum Battery Charging Current:1 A

• PoE Output Current Limit:

  • 24 V input 700 mA

  • Operates at 1 A with a 20 V battery.

• Ethernet Ports: 2 x 10/100/1000 Mbps

• Short Circuit Detection Time: Approximately 50 µs

• Short Circuit Protection Delay: Approximately 20 ms

• Short Circuit Recovery Time: Approximately 1 sec

• Measurement Update Time: Approximately 45 ms

• Boyutlar: Approximately 120 x 80 x 30 mm

• Ağırlık: Approximately 200 g

• Operating Temperature: -40°C to +70°C

• CE Certificate: Evet

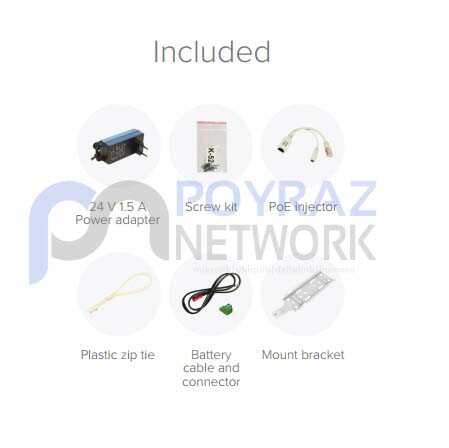

📦 Box Contents

• mUPS device

• Gigabit PoE injector

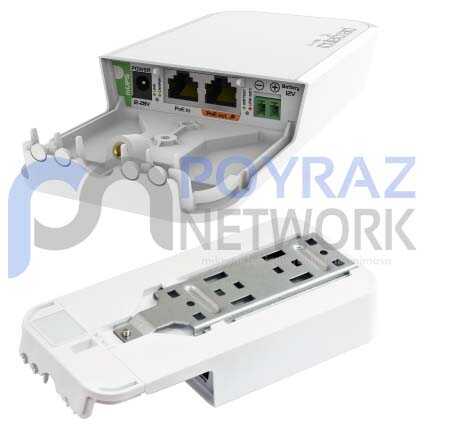

• Plastic clamp

• wAP ceiling mounting bracket

• 24V 1.5A power adapter

• Battery DC cable and T2 terminal connection

• K-52 assembly kit

⚙️ Usage Scenarios

• Power Redundancy for Network Equipment: It is used to keep network devices running during power outages.

• Solar and Automotive Installations: It is ideal for solar energy systems or in-vehicle network equipment in outdoor installations.

• Remote Area Installations: It provides a reliable power source in areas with limited electrical infrastructure.
