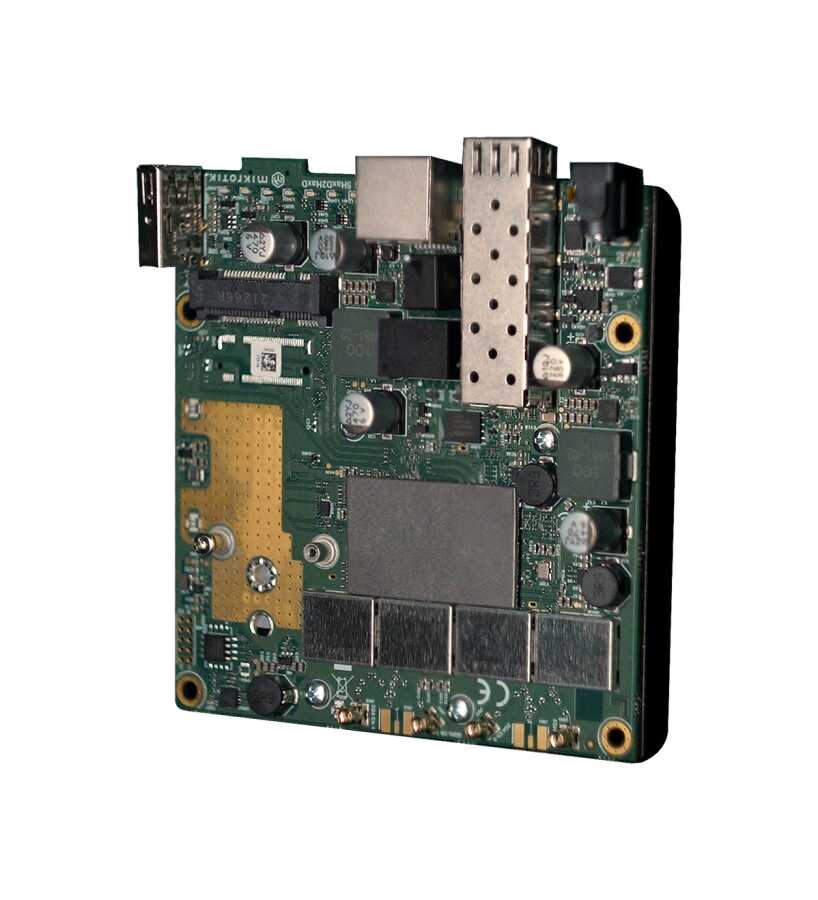

MikroTik L23UGSR-5HaxD2HaxDIt is a modular outdoor access point with Wi-Fi 6 support. This device adapts to various applications thanks to its customizable structure.
İşlemci: Dual-core ARM IPQ-5010, 800 MHz
RAM: 256 MB DDR3L
Depolama: 128 MB NAND Flash
Operating System: RouterOS v7, License Level 4
Boyutlar: 122 x 87 x 26 mm
Operating Temperature: -40°C to +70°C
MTBF: Approximately 200,000 hours (at 25°C)
2.4 GHz Band:
Standards: 802.11b/g/n/ax (Wi-Fi 6)
Data Speed: 574 Mbps
Antenna Connection: 2 x MMCX
5 GHz Band:
Standards: 802.11a/n/ac/ax (Wi-Fi 6)
Data Speed: 2400 Mbps
Antenna Connection: 2 x MMCX
Ethernet Port: 1 x 10/100/1000 Mbps RJ45 (PoE-IN supported)
SFP Port: 1 x 2.5 Gbps
USB Port: 1 x USB 2.0 Type-A (max. 1.5 A)
MiniPCIe Slot: 1 x (for LTE or LoRa cards)
SIM Card Slot: 1 x Nano SIM
Serial Console Port: RS485
DC Input: 12–28 V
PoE-IN: 18–28 V (Passive PoE)
Maximum Power Consumption:25 W
Power Adapter: 24 V, 1.2 A
Antenna Connections: Customizable antenna options with 4 x MMCX connectors
Case Compatibility: RB411, 911, 912, and 922 series can be integrated with aluminum interior casings.
Sertifikalar: CE, FCC, IC, EAC, ROHS
