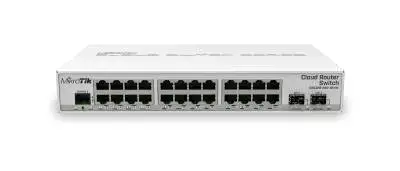

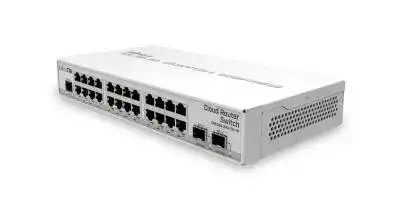

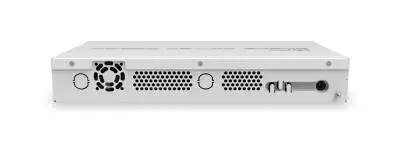

CRS326-24G-2S+IN

MikroTik CRS326-24G-2S+INIt is a desktop-type, manageable switch with 24 Gigabit Ethernet ports and 2 10G SFP+ slots. Thanks to the dual boot feature that supports both RouterOS and SwOS operating systems, users can configure a flexible setup according to their needs.

🔧 Technical Specifications

• Model: CRS326-24G-2S+IN

• İşlemci: Marvell 98DX3236, 800 MHz, 1 core (ARM 32bit)

• RAM: 512 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (Level 5 license) and SwOS (Dual Boot)

• Boyutlar: 285 x 144 x 44 mm

• Operating Temperature: -40°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C

• Sertifikalar: CE, EAC, RoHS

🌐 Network and Connection Properties

• Ethernet Ports: 24 x 10/100/1000 Mbps Gigabit Ethernet

• SFP+ Ports: 2 x 1/10 Gbps SFP+ slot (compatible with 1.25G SFP and 10G SFP+ modules)

• Console Port: RJ45 (115200 bps, 8N1)

• Switching Capacity: 88 Gbps

• Transmission Speed: 64 Mpps

• MAC Address Table: 16,000 entries

⚡ Power and PoE Features

• Input Voltage: 10–30 V DC

• Power Input:

  • DC jack (5.5 mm outer / 2 mm inner, positive tip)

  • Passive PoE via Ethernet port

• Maximum Power Consumption: 21 W

• Soğutma: Passive (does not include a fan)

🧰 Box Contents

• CRS326-24G-2S+IN device

• 24 V 1.2 A power adapter

• Quick installation guide
