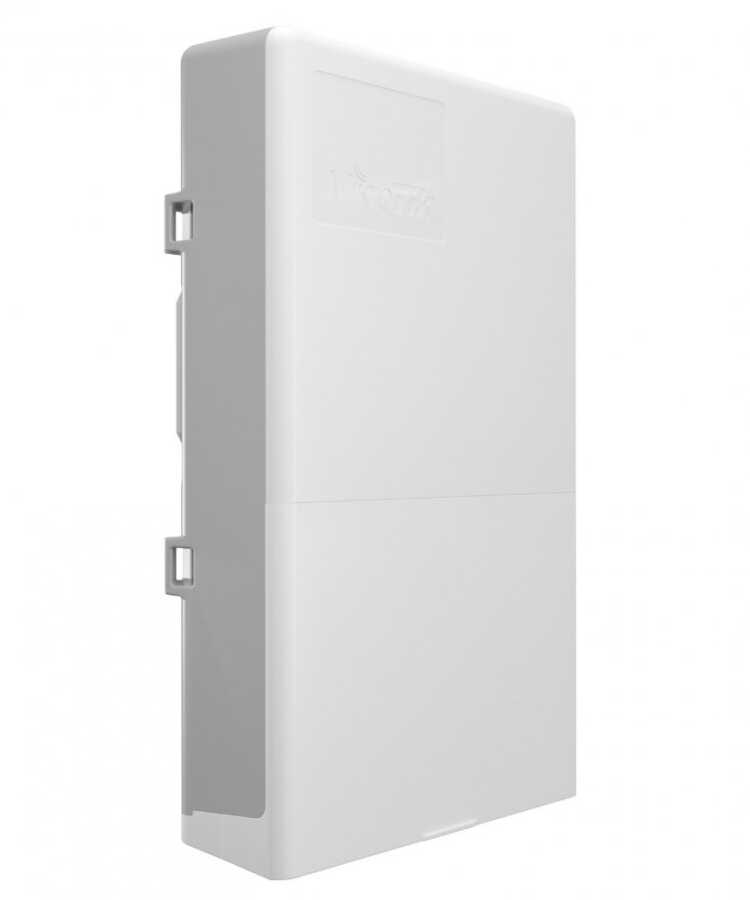

MikroTik CRS318-1Fi-15Fr-2S-OUT, also known asnetPower 15FR, it is a Layer 3 manageable switch with 18 ports, designed for outdoor use. This device, particularly suitable for ISPs and in-building fiber distribution projects, is part of MikroTik's GPEN (Gigabit Passive Ethernet Network) concept.
Product Code: CRS318-1Fi-15Fr-2S-OUT
İşlemci: 98DX224S, single-core, 800 MHz
Mimari: ARM 32bit
RAM: 256 MB
Depolama: 16 MB Flash
Operating System: RouterOS (License Level 5) or SwitchOS (dual boot)
Boyutlar: 304 x 212 x 71 mm
Operating Temperature: Between -40°C and +70°C
MTBF: Approximately 200,000 hours @25°C
Soğutma: Pasif

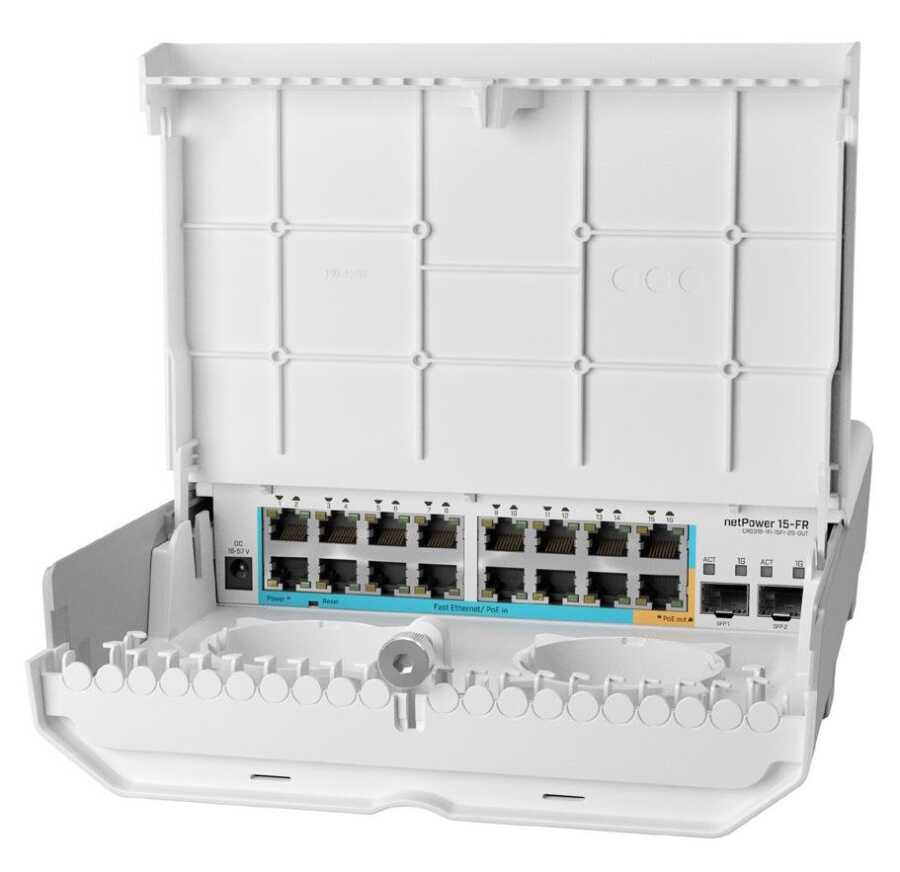

Ethernet Ports:
16 x 10/100 Mbps RJ45 (15 of which support Reverse PoE-IN)
1 x 10/100 Mbps RJ45 (PoE-OUT supported, Ether15)
SFP Ports: 2 x 1 Gbps
Power Input:
1 x DC jack (18–57 V)
15 x PoE-IN (Ether1–14 and Ether16)
PoE-OUT: Passive PoE over Ethernet
If the input voltage is 18–30 V, maximum 0.75 A
Input voltage 30–57 V maximum 0.5 A
Maximum Power Consumption:29 W
Power Adapter: Not included, must be provided separately.
Non-Blocking Throughput: 3.6 Gbps
Switching Capacity: 7.2 Gbps
Transmission Speed: 5.4 Mpps

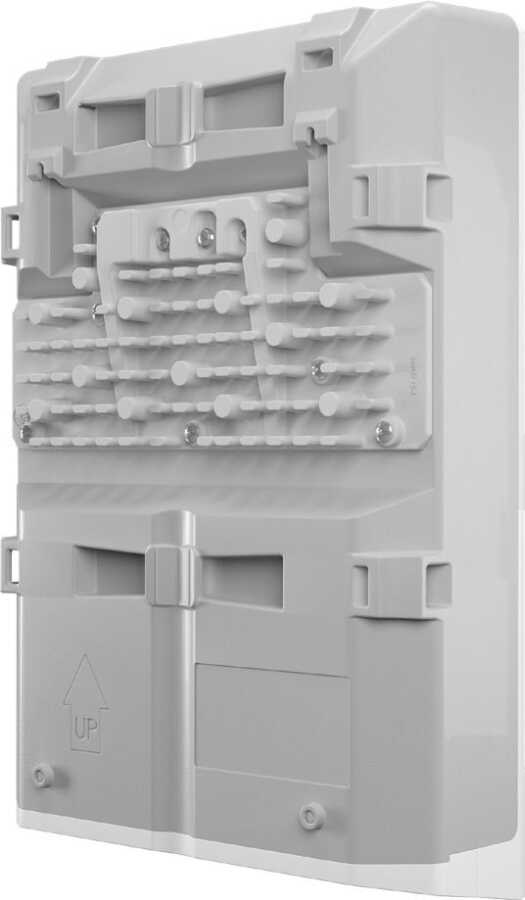

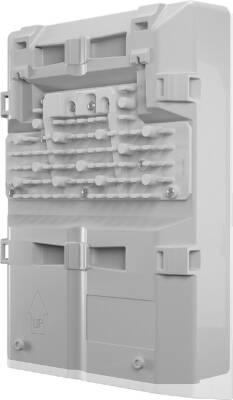

Montaj: Hose clamps and K-66 mounting set are included for direct mounting.
Hardware Monitoring: Voltage and temperature monitoring features
Sertifikalar: CE, EAC, RoHS
IP Protection Class: IP20
