CCR1036-12G-4S

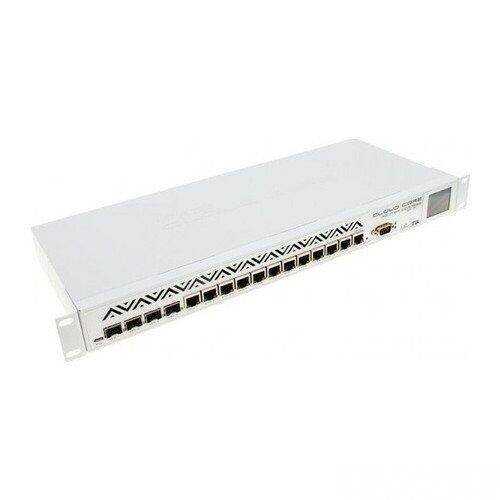

MikroTik CCR1036-12G-4S, is an industrial-grade router designed for high-performance networks. With a 36-core Tilera Tile-Gx36 processor and 12 Gigabit Ethernet ports, it can process millions of packets per second. With these features, it is an ideal solution for data centers and large-scale network infrastructures.

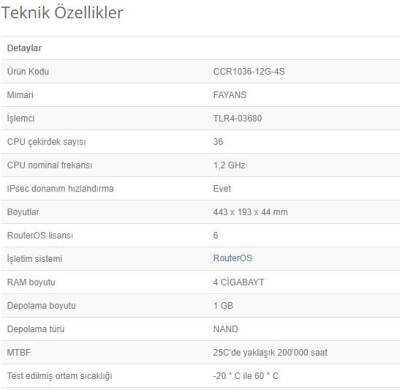

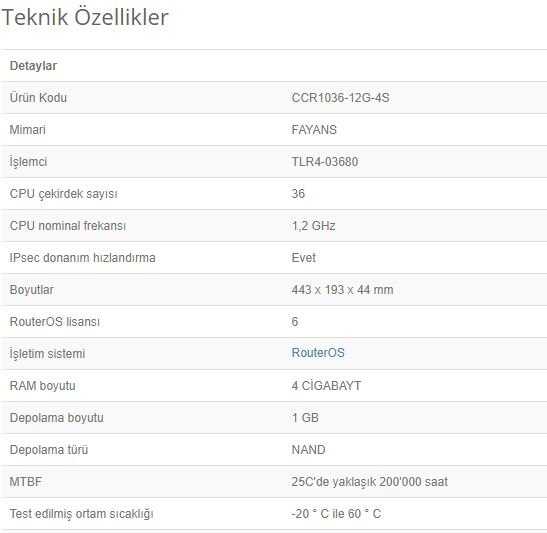

🔧 Technical Specifications

• Model: CCR1036-12G-4S

• İşlemci: Tilera Tile-Gx36, 36 cores, 1.2 GHz frequency

• RAM: 4 GB (SODIMM DDR slots; supports 16 GB or more)

• Depolama: 1 GB NAND

• Operating System: RouterOS v6 (64-bit), Level 6 license

• Boyutlar: 443 x 193 x 44 mm (1U rackmount)

• Operating Temperature: -20°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C

• IPsec Hardware AccelerationYes

🌐 Network and Connection Properties

• Ethernet Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet (Auto-MDI/X)

• SFP Slots: 4 x 1.25 Gbps SFP slot

• Console Port: RJ45 serial port

• USB: 1 x USB Type A (maximum 1A current), USB Power Reset feature

• LCD Screen: Colorful touch screen

⚡ Power and Cooling Features

• Power Input: 2 x AC input (100-240V, redundant power supplies)

• Maximum Power Consumption60 W

• Soğutma: 2 x internal fan (active cooling)

📈 Performance Data

• Maximum Packet Processing in FastPath Mode: 24 million packets/second (mpps)

• Maximum Bandwidth: 16 Gbps

• IPsec Performance:

  • Single Tunnel (AES-128-CBC + SHA1): ~1.46 Gbps

  • 256 Tunnel (AES-128-CBC + SHA1): ~10.22 Gbps

  • 256 Tunnel (AES-256-CBC + SHA256): ~9.99 Gbps

📦 Box Contents

• CCR1036-12G-4S device

• 2 x IEC power cable

• Rack mounting ears and screw set

• Quick installation guide
