CCR1009-7G-1C-PC

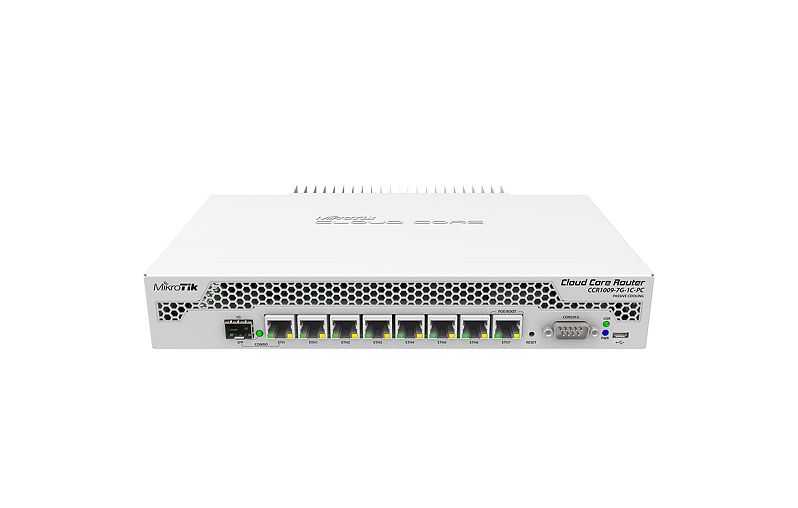

MikroTik CCR1009-7G-1C-PC, it is a router designed for high-performance networks, passively cooled and fanless. This device offers a powerful network infrastructure with its 9-core TILE-Gx9 processor and 7 Gigabit Ethernet ports.

🔧 Technical Specifications

• Model: CCR1009-7G-1C-PC

• İşlemci: Tilera TILE-Gx9, 9 cores, 1 GHz frequency

• RAM: 1 GB DDR3

• Depolama: 128 MB NAND

• Operating System: RouterOS v6, Level 6 license

• Boyutlar: 272 x 190 x 44 mm

• Operating Temperature: -20°C to +60°C

• Maximum Power Consumption: 30 W

• Soğutma: Passive cooling (does not include a fan)

• PoE Support: Passive PoE input from 18V to 57V via Ether7 port

🌐 Network and Connection Properties

• Ethernet Ports: 7 x 10/100/1000 Mbps Gigabit Ethernet (Auto-MDI/X)

• Combo Port: 1 x 1 Gbps SFP or 1 x Gigabit Ethernet (only one can be active)

• USB: 1 x microUSB Type AB (maximum 1A current), USB Power Reset feature

• Console Port: RS232 serial port

• LCD Screen: Colorful touch screen

📈 Performance and Test Results

• IPsec Performance:

  • Single Tunnel (AES-128-CBC + SHA1): ~1.26 Gbps

  • 256 Tunnel (AES-128-CBC + SHA1): ~2.60 Gbps

  • 256 Tunnel (AES-256-CBC + SHA256): ~2.58 Gbps

• Ethernet Performance:

  • Maximum Packet Processing in FastPath Mode: 652.8 kpps (1518 byte packet)

  • Bridging (25 bridge filter rules): 649.6 kpps (1518 byte packet)

  • Routing (25 IP filter rules): 615.8 kpps (1518 byte packet)

📦 Box Contents

• CCR1009-7G-1C-PC device

• 24V 2.5A power adapter

• USB OTG cable

• Rack mounting ears and screw set

• Quick installation guide
