C52iG-5HaxD2HaxD-TC

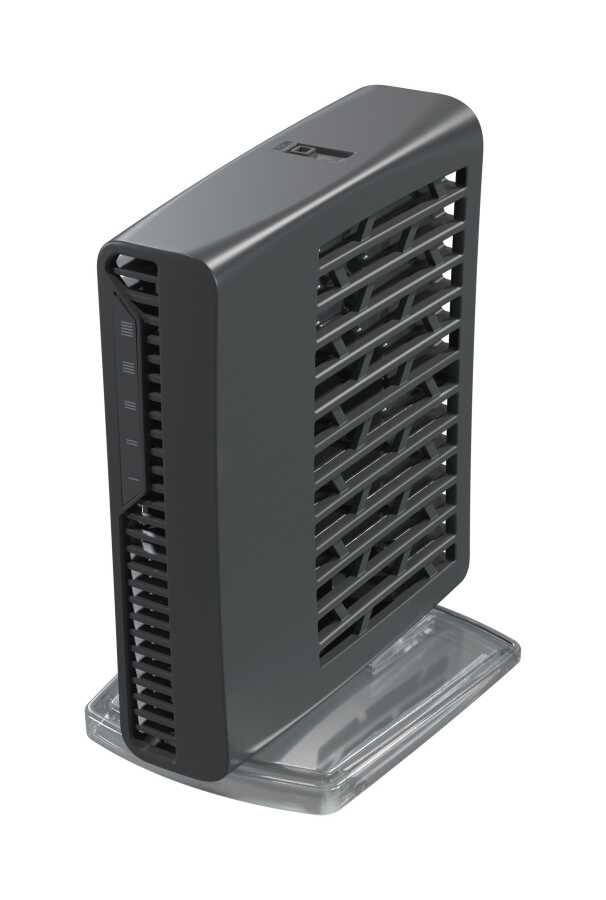

MikroTik hAP ax² (C52iG-5HaxD2HaxD-TC)It is a compactly designed, high-performance router that supports Wi-Fi 6 (802.11ax) technology. It offers an ideal solution for homes, small offices, and medium-sized businesses.

📡 Wireless Features

• Frequency Bands: 2.4 GHz and 5 GHz (simultaneous operation)

• Wireless Standards:

  • 2.4 GHz: 802.11b/g/n/ax (Wi-Fi 4/5/6)

  • 5 GHz: 802.11a/n/ac/ax (Wi-Fi 5/6)

• MIMO: 2x2 (double-stranded for both bands)

• Maximum Data Rates:

  • 2.4 GHz: 574 Mbps

  • 5 GHz: 1800 Mbps

• Antenna Gains:

  • 2.4 GHz: 22 dBm

  • 5 GHz: 23 dBm

• Bandwidth Increase: With Wi-Fi 6, up to 40% higher speed and capacity in the 5 GHz band and up to 90% in the 2.4 GHz band.

⚙️ Hardware Specifications

• İşlemci: 4-core ARM Cortex-A53, 864 MHz

• RAM: 1 GB DDR4

• Depolama: 16 MB Flash

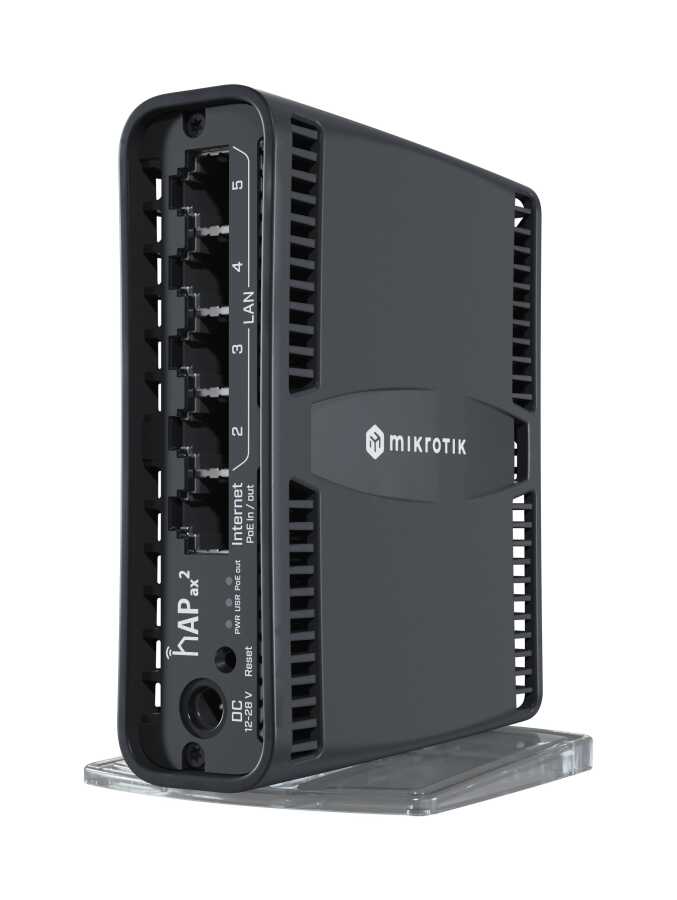

• Ethernet Ports: 5 x Gigabit Ethernet (RJ45)

  • Port 1: PoE input (802.3af/at)

  • Port 2: PoE output (max. 500 mA)

• Power Input:

  • PoE (802.3af/at) 10–60V

  • DC Jack (12–30V)

• Maximum Power Consumption: 20 W

• Soğutma: Pasif

• Operating Temperature: -30°C to +70°C

🧰 Software and Management

• Operating System: MikroTik RouterOS (License Level 4)

• Management Features: Centralized AP management with CAPsMAN support, IPsec hardware acceleration, bandwidth control, firewall, user access control, and other RouterOS features.

• Default IP: 192.168.88.1 (Username: admin, password: none)

📦 Box Contents

• hAP ax² (C52iG-5HaxD2HaxD-TC) device

• 24V 1A power adapter

• PoE injector

• Mounting fixture and screw set

🎯 Areas of Use

hAP ax² meets high speed and capacity requirements thanks to Wi-Fi 6 technology. It is an ideal solution for home users, small offices, hotels, and WISPs. With CAPsMAN support, you can centrally manage multiple access points.
