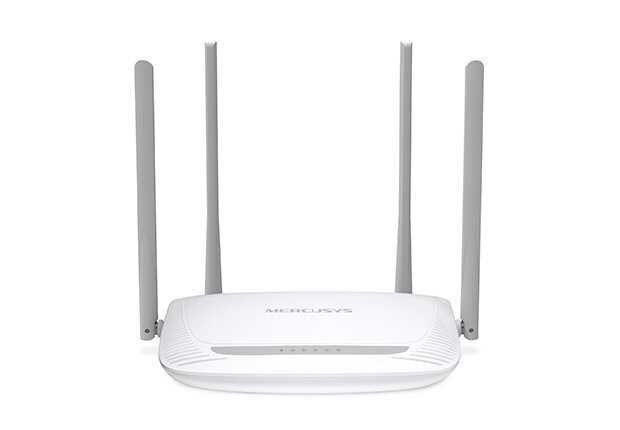

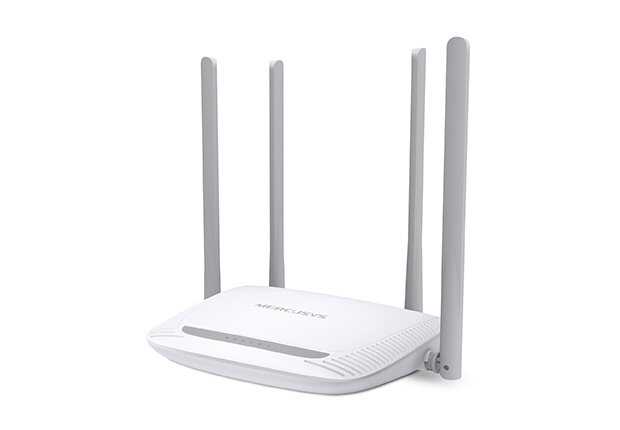

MERCUSYS MW325R 300Mbps Enhanced Wireless N Router

📡 General Description

Mercusys MW325R, is a router designed for home and small office use, offering wireless speeds up to 300 Mbps in the 2.4 GHz band. With its four fixed 5 dBi antennas, it provides wide coverage and strong signal transmission.

⚙️ Technical Specifications

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency Band: 2.4 - 2.5 GHz

• Maximum Wireless Speed:

  • 802.11n: 300 Mbps

  • 802.11g: 54 Mbps

  • 802.11b: 11 Mbps

• Antenler: 4 x 5 dBi fixed omni-directional antenna

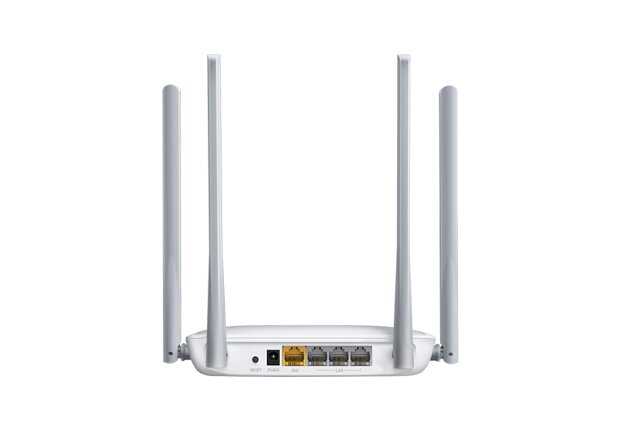

• Ethernet Ports:

  • 3 x 10/100 Mbps LAN

  • 1 x 10/100 Mbps WAN

• Security Protocols: WPA-PSK, WPA2-PSK

• Management Features:

  • DHCP server

  • Port Forwarding (Virtual Server, UPnP, DMZ)

  • Access control (MAC/IP filtering)

  • Parental Control

  • Guest Network

  • Dynamic DNS (DynDNS, NO-IP)

• WDS BridgingYes

• IPv6 SupportYes

• Power Supply: 5V DC, 0.6A

• Boyutlar: 167 x 118 x 33 mm

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity Ratio: 10% - 90% (non-condensing)

• Storage Humidity Rate: %5 - %90 (non-condensing)

🔧 Installation and Management

The MW325R can be easily set up and managed through a user-friendly web interface. Internet connection can be quickly established with three-step setup instructions. Additionally, the WPS button located on the back panel of the device enables secure wireless connection setup with compatible devices.

✅ Advantages

• Wide Coverage Area: Four 5 dBi antennas increase signal strength, providing a wider coverage area.

• High Speed Connection: Up to 300 Mbps wireless speed support is ideal for HD video streaming and online games.

• Advanced Security: It provides a secure internet experience with WPA/WPA2 encryption and guest network features.

• Easy Installation: Installation can be performed without technical knowledge thanks to the user-friendly interface and quick setup wizard.
