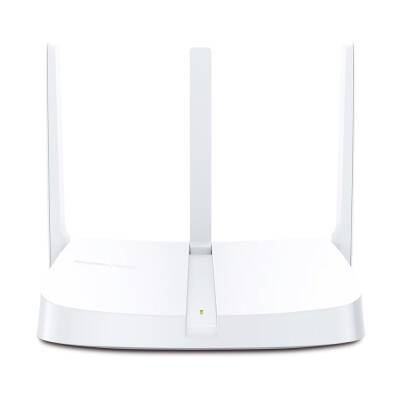

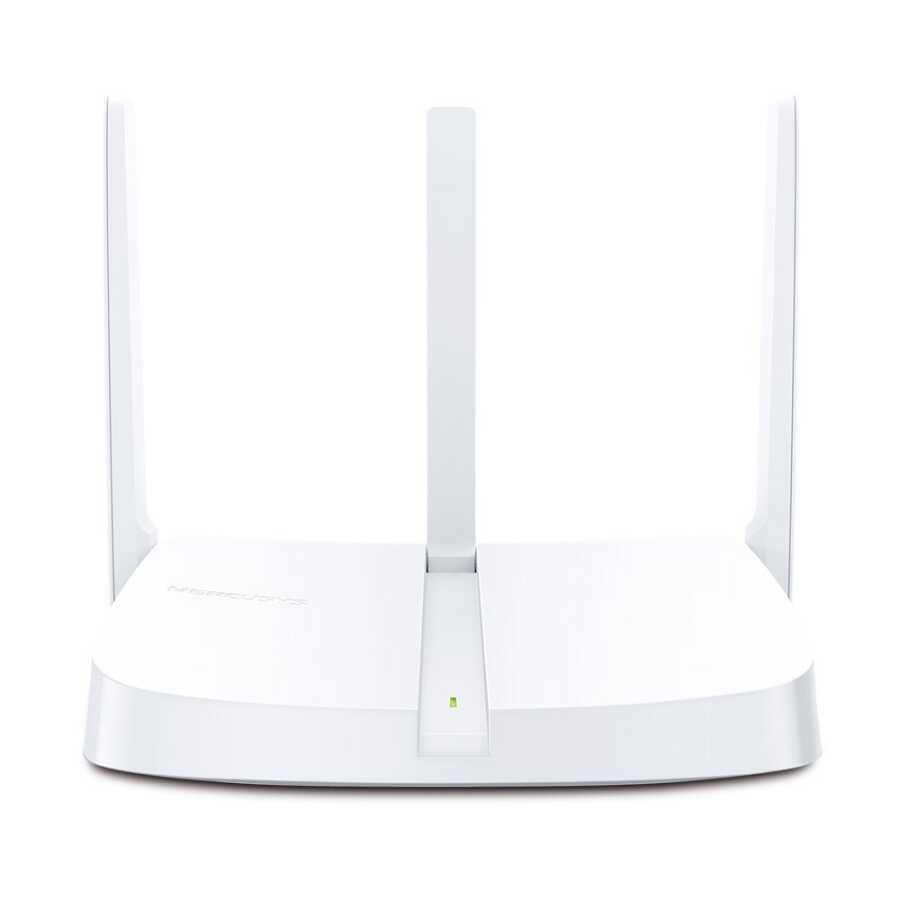

Mercusys MW306R 300 Mbps Wireless N Router

📡 General Features

• Wireless Standards: IEEE 802.11 b/g/n

• Frequency Band: 2.4 GHz

• Maximum Wireless Speed:

  • 802.11n: 300 Mbps

  • 802.11g: 54 Mbps

  • 802.11b: 11 Mbps

• Antenler: 3 x 5 dBi fixed omnidirectional antenna

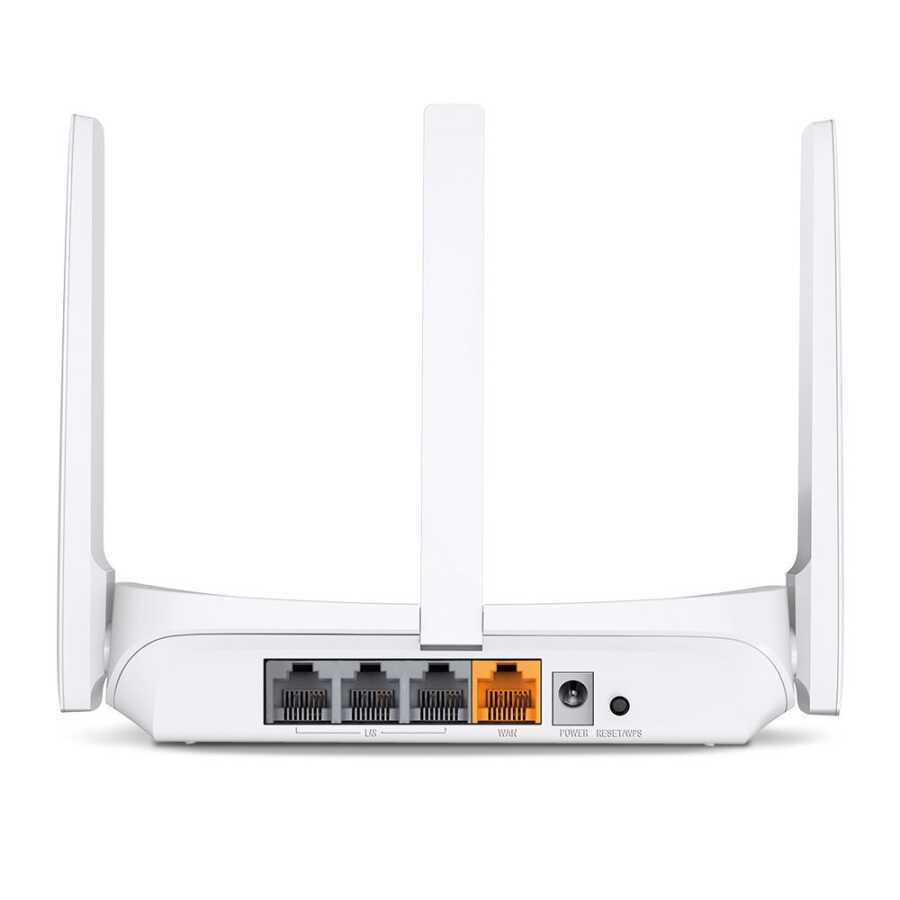

• Ethernet Ports:

  • 1 x 10/100 Mbps WAN

  • 3 x 10/100 Mbps LAN

• Power Supply: 5V DC, 0.6A

• Boyutlar: 147 x 115 x 34 mm

• Operating Temperature: 0°C to 40°C

• Operating Humidity Ratio: 10% - 90% (non-condensing)

🔧 Operating Modes

• Router Mode: It converts the wired internet connection into a wireless network.

• Range Extender Mode: It expands the signal coverage area by extending the existing wireless network.

• Access Point Mode: It converts the wired internet connection into a wireless network.

• WISP Mode: It provides wireless internet access in areas without wired internet connection.

🔐 Security and Management Features

• Wireless Security: WPA-PSK/WPA2-PSK encryption

• Access Control: MAC/IP filtering

• Parental Control: Managing internet access of connected devices

• Guest Network: Creating a separate network for visitors

• QoS (Quality of Service): Performance management by prioritizing devices.

• IGMP Proxy/Snooping and VLAN Support: Optimizing IPTV streams.

• IPv6 Support: Future-oriented internet protocol support

📦 Package Contents

• MW306R Router

• Power Adapter

• Ethernet Cable

• Quick Setup Guide
