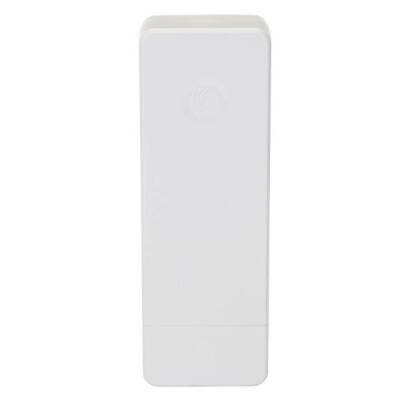

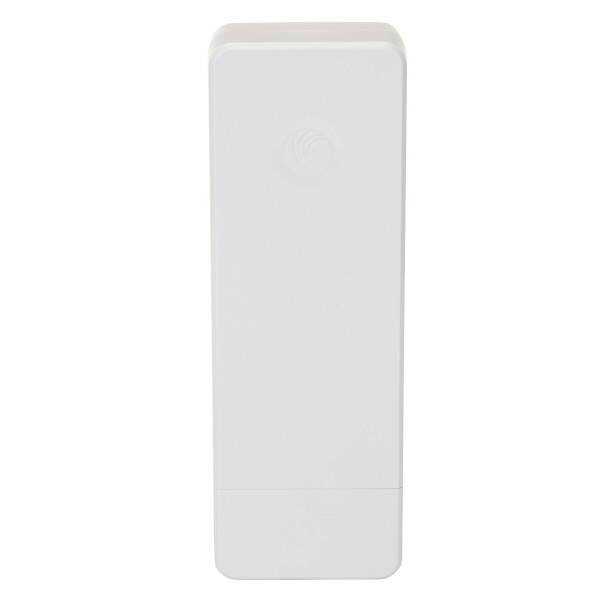

ePMP 5 GHz Force 300-13L SM

📡 General Description

ePMP Force 300-13L SM, Cambium’sentry levelIt is one of the subscriber modules. Despite its economic structure,ePMP 3000 series access pointsworking in harmonyhigh-performance short-range connectionsIt offers an ideal solution for.13 dBi integrated antenna, low power consumption andeasy installationstands out with.

⚙️ Technical Specifications

• Model:ePMP Force 300-13L SM

• Frequency Range:4910 – 5970 MHz

• Channel Width:20 / 40 / 80 MHz

• Maximum Physical Layer (PHY) Speed:

  • Yaklaşık 400 Mbps(With 80 MHz channel)

• Modülasyon:QPSK – 256 QAM

• MIMO:2x2 MIMO

• Protokoller:

  • Cambium TDD

  • ePTP (low latency mode)

📶 Antenna Features

• Antenna Type:Integrated directional panel antenna

• Antenna Gain:13 dBi

• Beamwidth:

  • Horizontal: 45°

  • Vertical: 45°

• Polarizasyon:Dual slant ±45°

🔌 Connection & Power

• Ethernet:

  • 1 × 10/100 Mbps RJ45 Ethernet port

• PoE Power Input:

  • 30 VDC, Cambium passive PoE

  • Power Consumption: ~7 W

• PoE Injector:Available in the box

🧱 Physical Properties

• Boyutlar:26.7 x 9.4 x 9.4 cm

• Ağırlık:Approximately 0.5 kg

• Protection Class: IP55

• Operating Temperature:-30°C to +60°C

• Montaj:

  • Direct mounting apparatus is included.

  • Azimuth and tilt adjustment can be made.

📦 Box Contents

• 1 × ePMP Force 300-13L SM device

• 1 × Assembly kit

• 1 × PoE adapter + power cable

• Installation documents

🌍 Areas of Use

• Short distance PtMP deployments

• Economic WISP solutions

• IP camera connections

• Data monitoring and IoT
