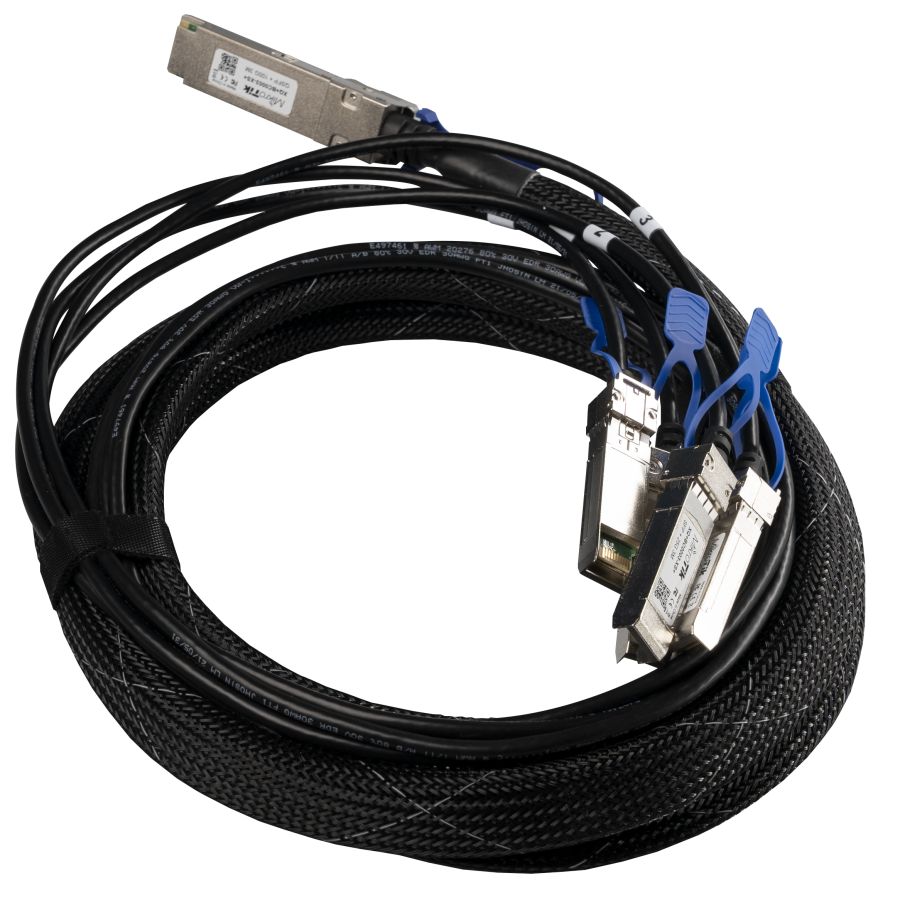

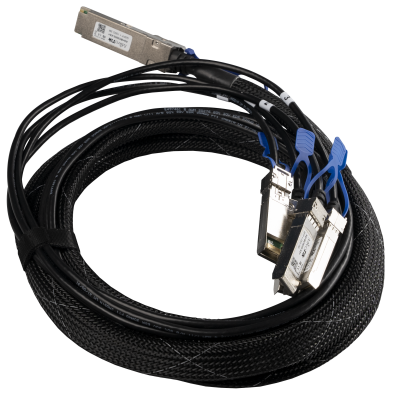

MikroTik XQ+BC0003-XS+It is a 3-meter long passive copper (DAC) breakout cable with one end having a QSFP28 connector and the other end having four SFP28 connectors. This cable is compatible with MikroTik's 100G supported devices (for example,CCR2216 ve CRS504) is designed to establish a direct connection between devices with 25G SFP28 ports.
Product Code: XQ+BC0003-XS+
Cable Length: 3 meters
Connector Type: 1 x QSFP28 → 4 x SFP28
Maximum Data Rate: 100 Gbps (4 x 25 Gbps) or 40 Gbps (4 x 10 Gbps)
Wire Thickness: 30 AWG
Minimum Bending Radius: 35 mm
Operating Temperature: 0°C to +70°C
External Coating MaterialPVC
Uyumluluk: QSFP28 MSA, SFP28 MSA, SFF-8636, RoHS, CE
To split a 100G QSFP28 port into 4 x 25G SFP28 portsFor example, MikroTikCCR2216 veya CRS504To provide connection from such devices to four different 25G devices.
Split the 40G QSFP+ port into 4 x 10G SFP+ portsDividing the 40G connection into four 10G connections to connect to different devices.
Short-distance connectionsIt is ideal for high-speed data transmission between devices located on the same or adjacent shelves.
Data center applicationsIt is suitable for regular and efficient cabling in server rooms.
Integrated ModulesSince QSFP28 and SFP28 modules are integrated into the cable, they offer direct connectivity without the need for additional transceivers.
Flexibility and OrderWith its 3-meter length and flexible structure, it can be easily positioned between devices, ensuring organization in the server room.
Cost EffectivenessIt is a more economical alternative compared to fiber optic solutions for short-distance connections.
