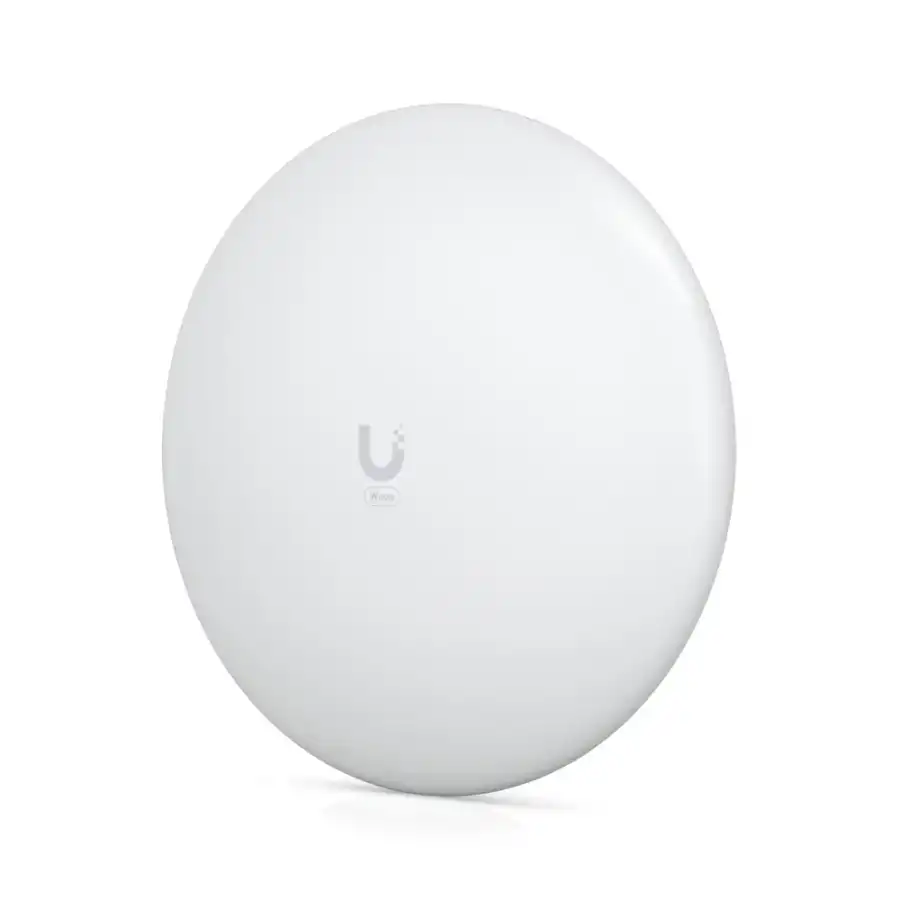

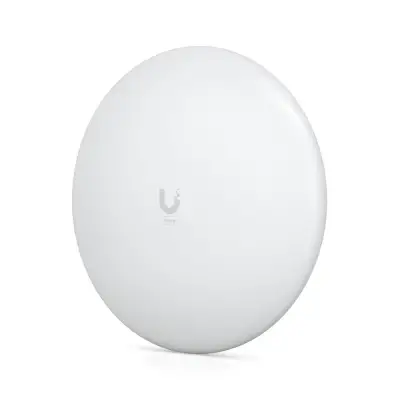

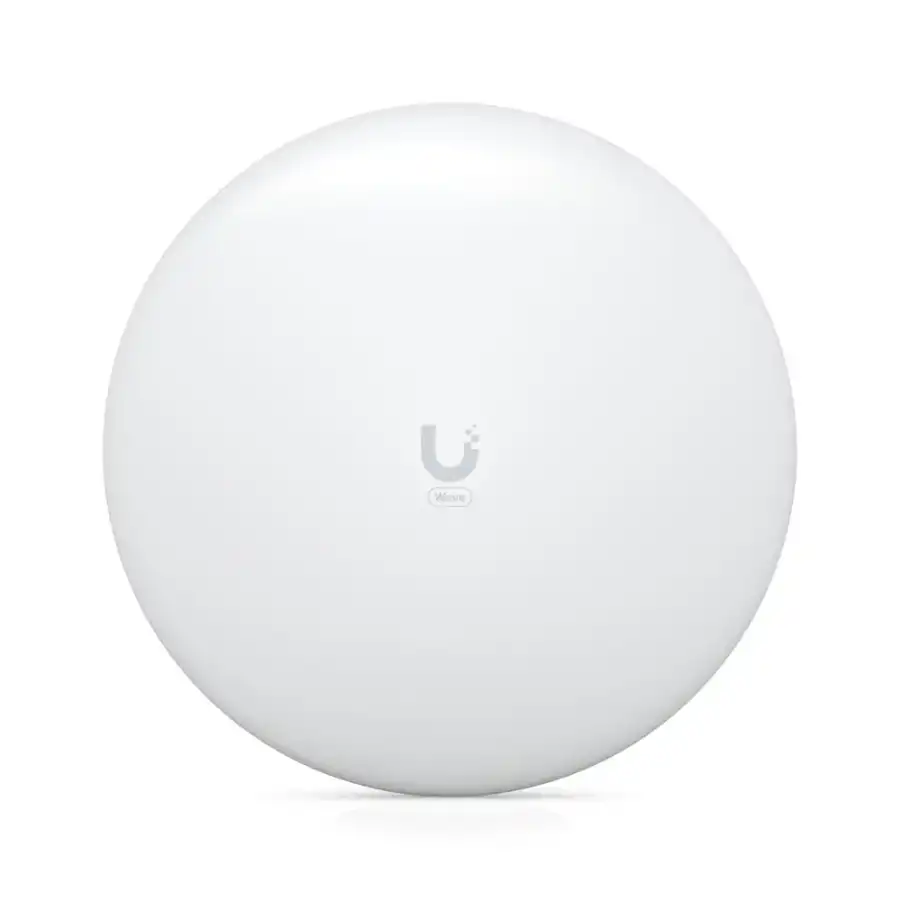

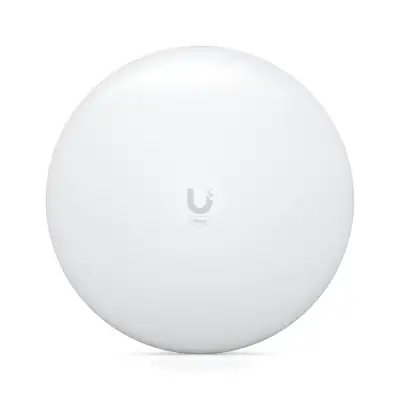

WAVE-LR

🌐 WAVE‑LR, Ubiquiti's60 GHz Wave technologyIt is a device that offers both long-range (PtMP) and redundant (5 GHz) wireless bridge solutions.

• Maximum data transmission capacity:2 Gbps (1 Gbps→1 Gbps full duplex)

• Menzil:8 km (with Wave AP) or 6 km (with Wave AP Micro)

📡 RF / Wireless Features

• Frekans:57–71 GHz band (varies by region)

• Channels & Bandwidth:2160 / 1080 / 540 MHz optional; channel numbers region-based

• Modülasyon:16QAM, QPSK

• Antenna Gain:46 dBi; 1° narrow beamwidth (both azimuth and elevation)

📍 Spare radio:5 GHz Wi-Fi 6 (802.11ax) provides backup in weather conditions with ~800 Mbps capacity.

🛠️ Hardware & Physical Features

• İşlemci:Dual-core ARM Cortex-A53, 1 GHz

• RAM:512 MB DDR3L

• Port:1 × Gigabit RJ‑45

• Power Consumption:Approximately 18–20 W

• Power Supply:Passive PoE – 48 V DC or 24 V DC (4-pair or 2-pair)

📥 Package includes:48 V, 0.65 A Gigabit PoE adapter (PoE injector)

🧱 Mechanical & Environmental

• Boyut:Ø 424.4 mm × 166.2 mm (~16.7″ × 6.5″)

• Ağırlık:2.6 kg (without assembly), 3.8 kg (with assembly)

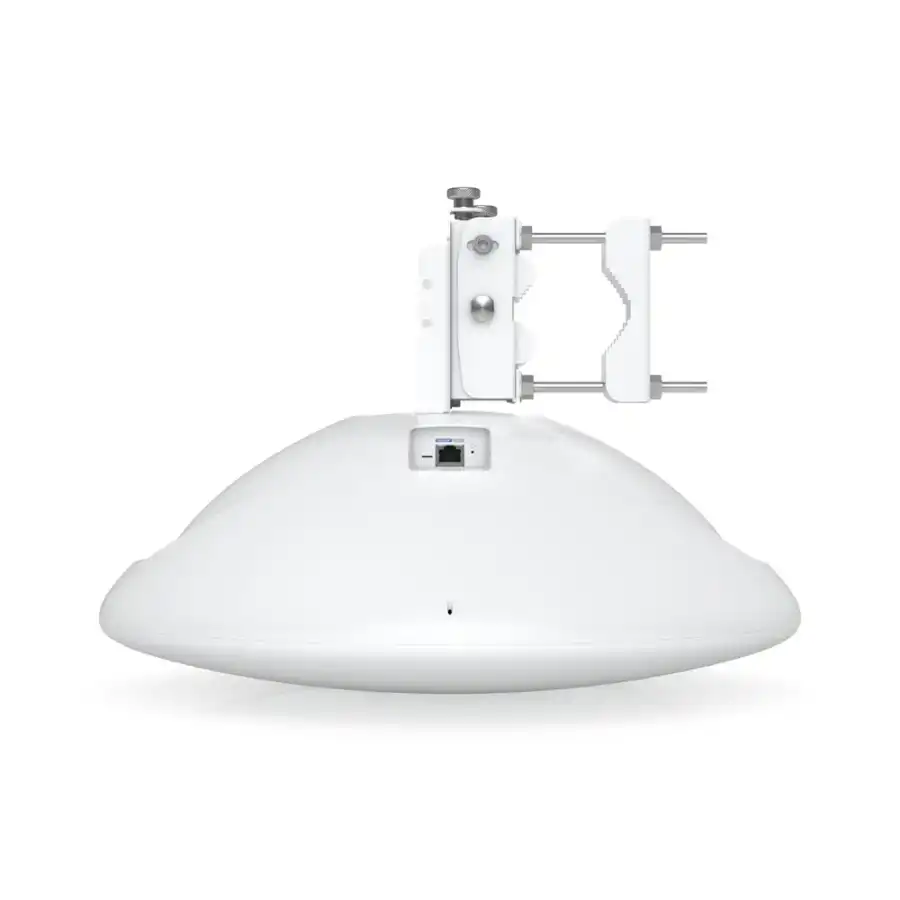

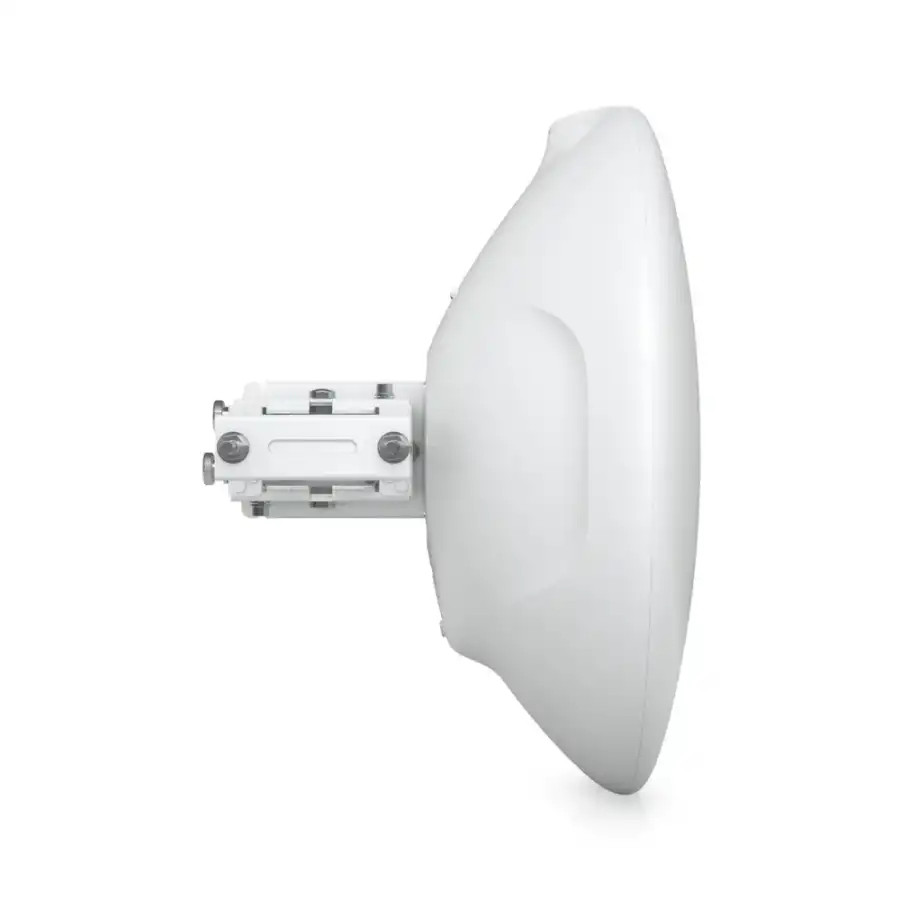

• Malzeme:UV stabilized plastic body + stainless steel mounting

• Koruma:IPX6 — strong water resistance

• Operating temperature:–40 °C … +60 °C

• Wind resistance:Resistant to a 286 N load at 200 km/h speed.

🔧 Software & Features

• Modlar:PtMP station mode (PtP is also supported with firmware ≥ 3.2.0)

• Platform:airOS-based;Wave AI, discovery protocoletc. Ubiquiti features

• Yönetim:UISP (web, iOS/Android), also quick access via Bluetooth.

• Servisler:NTP, SNMP, ping watchdog, trace route, speed test, cable test*, traffic shaping**

  • cable/site survey FW ≥ 3.3.0Andtraffic shaping FW ≥ 3.4.0

• Ağ:Bridge and router modes

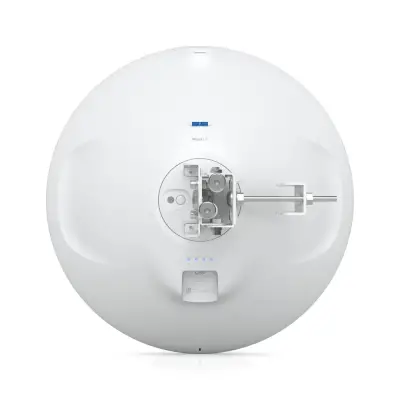

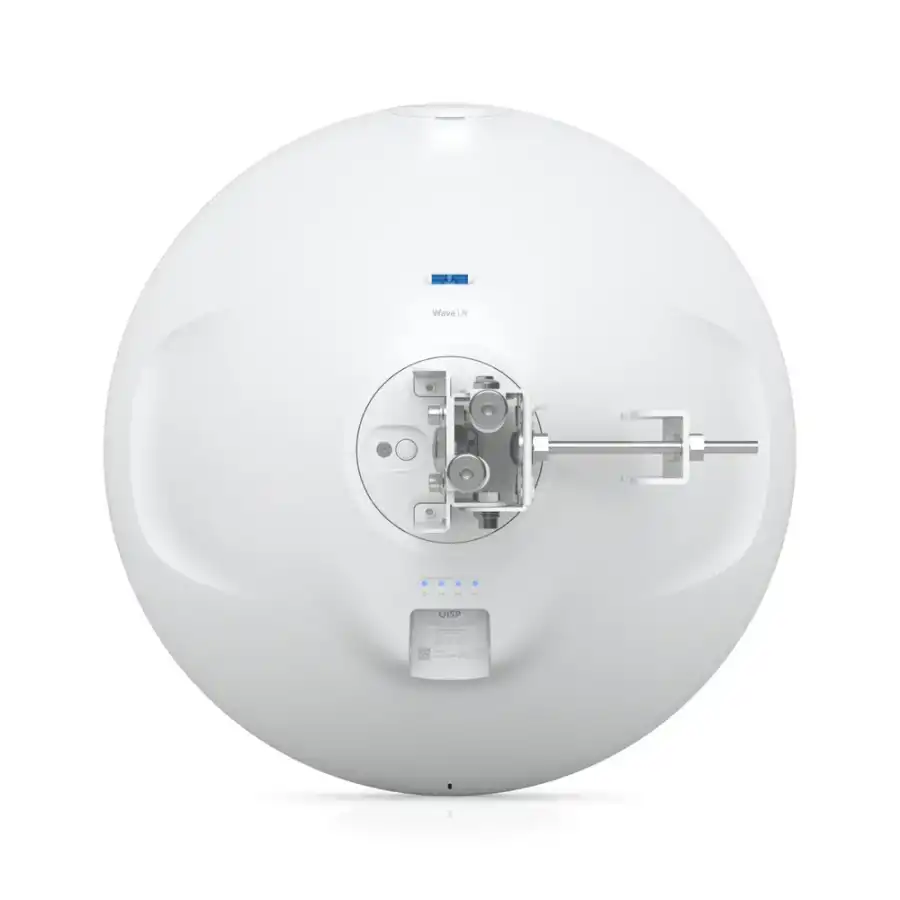

• Ek:GPS, LED indicators (Power, Ethernet, GPS, link)

📊 Performance & Usage

• Total capacity:2 Gbps (1 Gbps full duplex)

• 🌧️ 5 GHz backup radio:It provides up to ~800 Mbps in weather conditions.

• Connection range:AP Micro for 8 km (60 GHz) + 6 km

✅ Areas of Use

• Projects requiring long-range PtMP/PtP wireless bridges

• Infrastructures requiring high bandwidth (1 Gbps+)

• Weather-resistant, robust outdoor equipment

• Management and network tools integrated, businesses requiring central control
