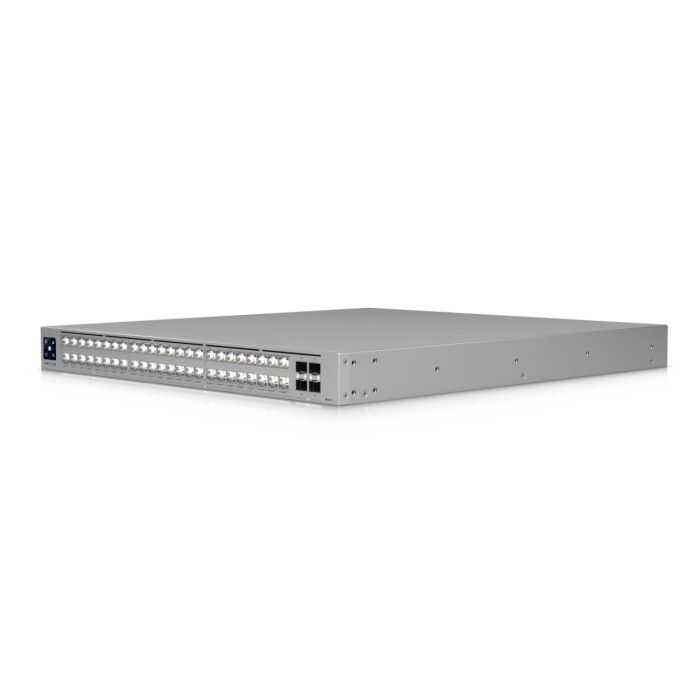

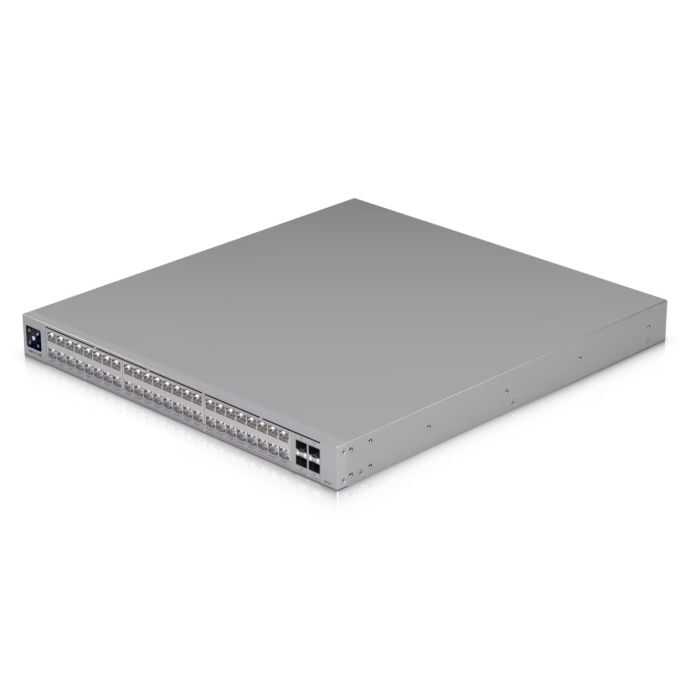

Ubiquiti UniFi Switch Pro XG 48 PoE, is a high-performance, compact, and manageable Layer 3 switch. It is equipped with 48 10G/2.5G RJ45 PoE+++ ports and 4 25G SFP28 uplink ports. With a total PoE budget of 1080W, it can power devices with high power requirements. Etherlighting™ technology visually displays port statuses. Its fan-equipped design provides high-performance cooling. With a rack-mountable (1U) form factor, it is suitable for data centers and large network infrastructures.
| Özellik | Detaylar |
|---|---|

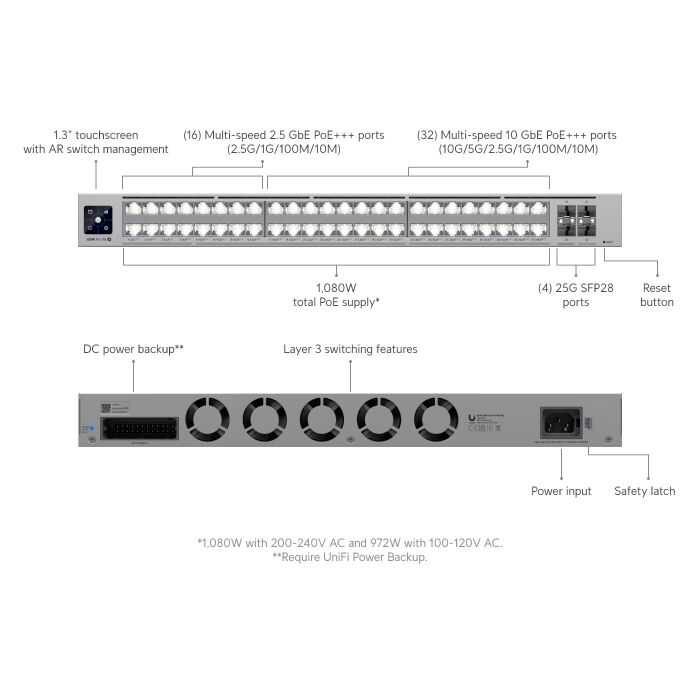

Port Structure | 32 × 10G RJ45 PoE+++, 16 × 2.5G RJ45 PoE+++, 4 × 25G SFP28 uplink |
PoE Support | IEEE 802.3bt (PoE+++, 90W/port) |
Total PoE Budget | 1080W (200-240V AC) / 972W (100-120V AC) |
Layer 3 Features | Static routing, inter-VLAN routing, DHCP server/relay |
Layer 2 Features | LACP, STP/RSTP, QoS, IGMP Snooping, 802.1X, ACLs |
Switch Capacity | 920 Gbps |
Non-Blocking Throughput | 460 Gbps |
İletim Hızı | 684 Mpps |
MAC Address Table | 128,000 entries |
VLAN Support | 1.000 VLAN |
Port Buffer Size | 8 MB |
Assembly Options | Rack-mountable (1U) |

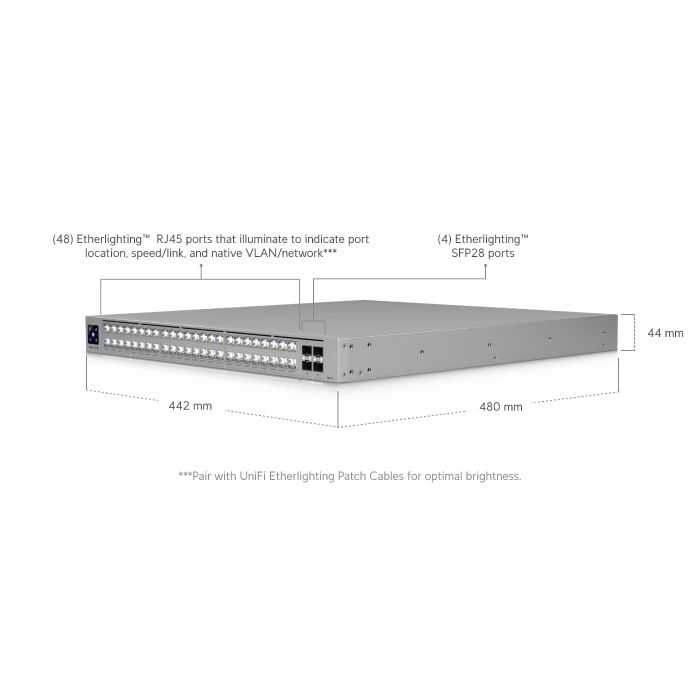

Dimensions (WxDxH) | 442 × 480 × 44 mm |
Ağırlık | 8.7 kg |
Malzeme | SGCC steel case |
Power Consumption | Maximum 1350W (including PoE load) |
Operating Temperature | Between 0°C and 40°C |
Operating Humidity Ratio | 10% – 90%, non-condensing |
Sertifikalar | CE, FCC, IC |
| NDAA Compliance | Evet |
Maximum PoE Output Per Port: 90W (PoE+++)
Total PoE Budget1080W (200-240V AC) / 972W (100-120V AC)
Power SupplyInternal 1350W AC/DC adapter (included)
PoE Standards802.3af/at/bt (PoE++, PoE+, PoE)

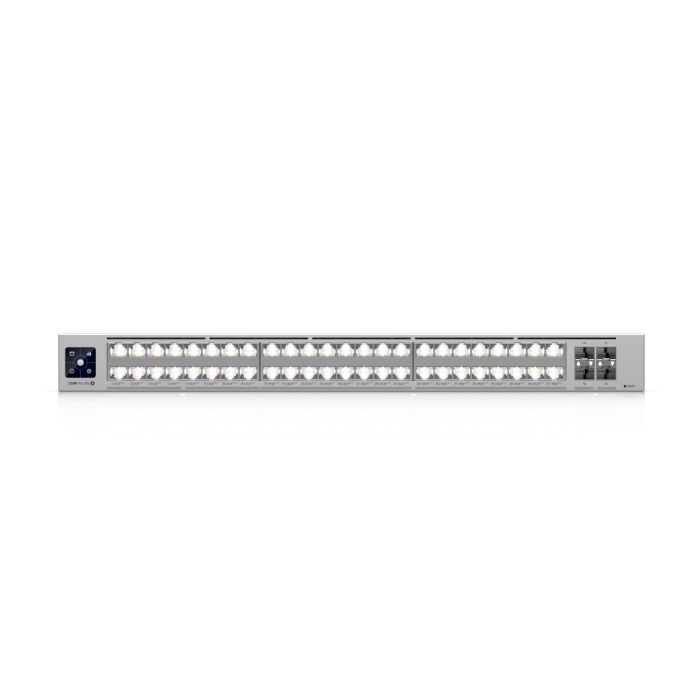

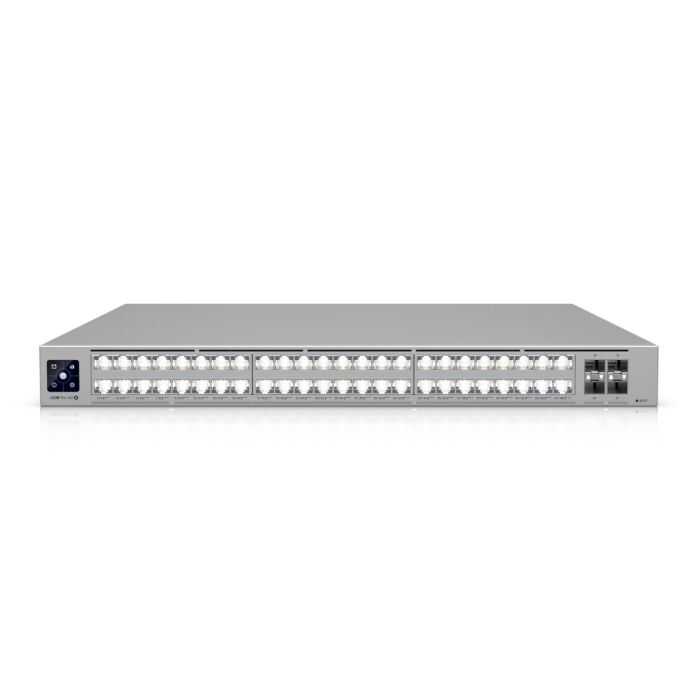

Etherlighting™ Technology: Displays port status with colored LEDs (connection speed, connection status, VLAN assignment)
Networks requiring high performance
4K/8K video streaming and cloud computing applications
VoIP telephone systems and IP cameras
Network infrastructure for small and medium-sized enterprises
Integration with UniFi Access Points and other UniFi devices.
High PoE capacityAbility to supply devices with high power requirements.

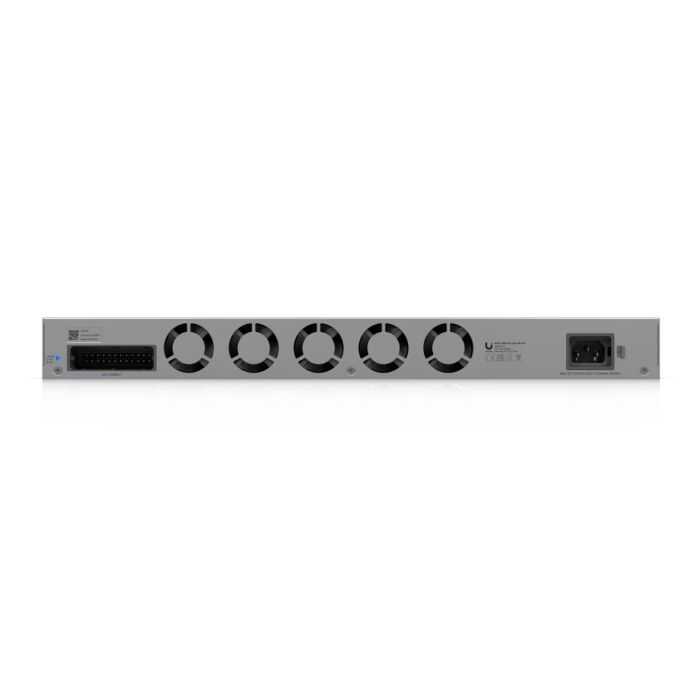

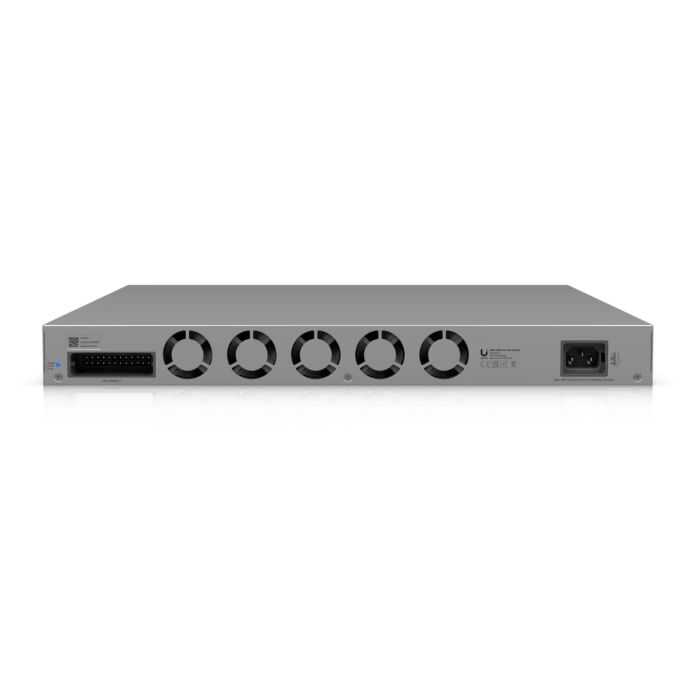

Fan designIt provides high-performance cooling.
Etherlighting™ visual indicatorsAbility to quickly monitor port statuses
Compact dimensionsRack-mountable (1U) form factor suitable for data centers and large network infrastructures.
Layer 3 featuresAdvanced network management and routing options

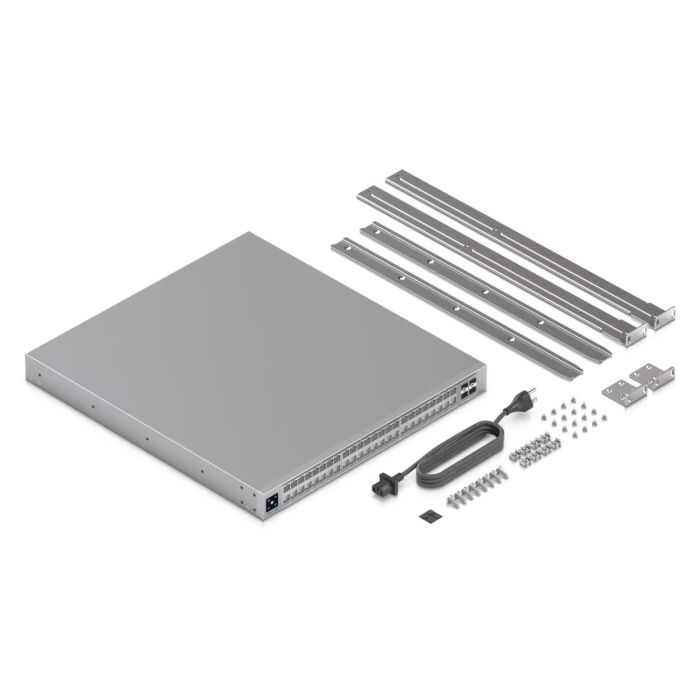

USW-Pro-XG-48-PoE Switch
1350W AC/DC Adapter
Rack-mount Brackets
User Manual
