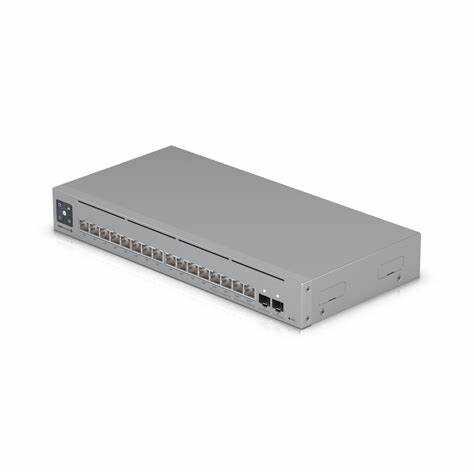

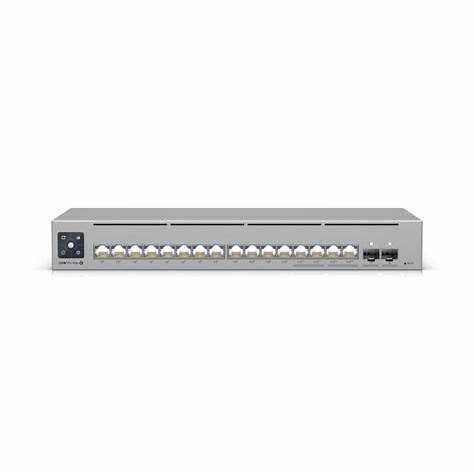

Ubiquiti UniFi Switch Pro Max 16 PoE, is a high-performance, manageable Layer 3 switch. It is equipped with 16 PoE ports, Etherlighting™ technology, a fanless design, and a 1.3-inch touchscreen. With its rack-mountable (1U) form factor, it is suitable for data centers and large network infrastructures.
| Özellik | Detaylar |
|---|---|
| Port Structure | 12 × 1GbE RJ45 PoE+, 4 × 2.5GbE RJ45 PoE++, 2 × 10G SFP+ uplink |
PoE Support | IEEE 802.3af/at/bt (PoE+, PoE++, PoE) |
Total PoE Budget | 180W |
Layer 3 Features | Static routing, inter-VLAN routing, DHCP server/relay |
Layer 2 Features | LACP, STP/RSTP, QoS, IGMP Snooping, 802.1X, ACLs |
Switch Capacity | 84 Gbps |
Non-Blocking Throughput | 42 Gbps |
İletim Hızı | 62.496 Mpps |
MAC Address Table | 32,000 entries |
VLAN Support | 1.000 VLAN |
Port Buffer Size | 2 MB |
Assembly Options | Rack-mountable (1U) |
Dimensions (WxDxH) | 325.1 × 160 × 43.7 mm |
Ağırlık | 2.1 kg |
Malzeme | SGCC steel case |
Power Consumption | Maximum 30W (excluding PoE output) |
PoE Voltage Range | PoE: 44–57V, PoE+/PoE++: 50–57V |
Ekran | 1.3 inch touch screen |
Operating Temperature | Between -5°C and 40°C |
Operating Humidity Ratio | 10% – 90%, non-condensing |
| Sertifikalar | CE, FCC, IC |
Maximum PoE Output Per Port: 60W (PoE+++)
Total PoE Budget180W
PoE Standards802.3af/at/bt (PoE++, PoE+, PoE)
Networks requiring high performance
4K/8K video streaming and cloud computing applications
VoIP telephone systems and IP cameras
Network infrastructure for small and medium-sized enterprises
Integration with UniFi Access Points and other UniFi devices.
High PoE capacityAbility to supply devices with high power requirements.
Fanless designSilent and energy efficient operation

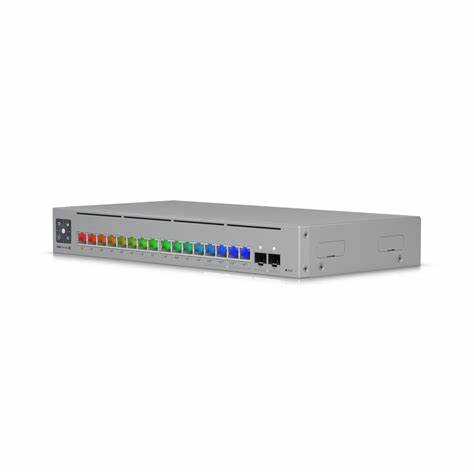

Etherlighting™ visual indicatorsAbility to quickly monitor port statuses
Compact dimensionsRack-mountable (1U) form factor suitable for data centers and large network infrastructures.
Layer 3 featuresAdvanced network management and routing options
USW-Pro-Max-16-PoE Switch
54V DC Adapter
Rack-mount Brackets
User Manual
