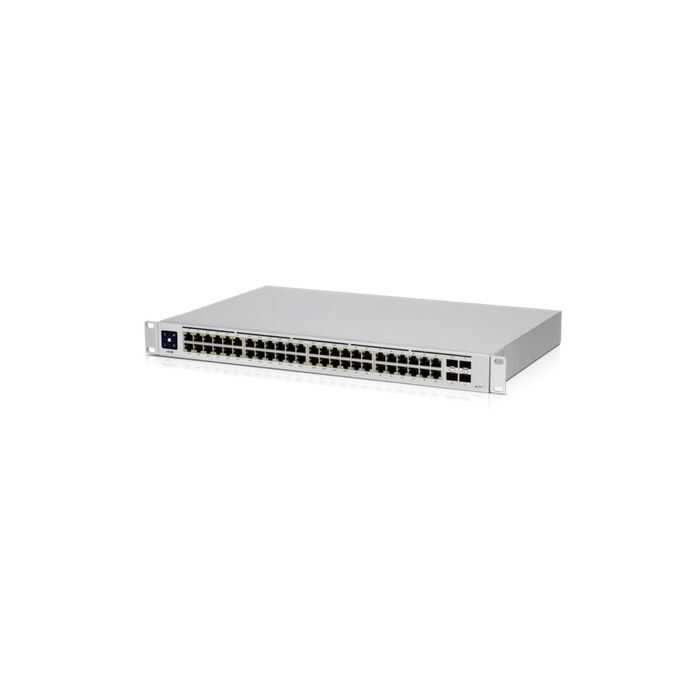

🔌 Ubiquiti UniFi Switch USW‑48‑PoE, is a fully manageable Gigabit PoE switch.
⚡ 32 of the 48 RJ‑45 Ethernet portsPoE+ (802.3af/at)provides support.
📡 4 units1 Gbps SFP uplink portprovides the option for fiber connection with.
📱 On it1.3-inch touch screen (LCM)Device status and connections can be quickly monitored with it.
📊 It provides centralized management and configuration capability through the UniFi Network Controller.
| Özellik | Detaylar |
|---|---|
Ethernet Ports | 48 × 10/100/1000 RJ‑45 |
PoE Supported Ports | 32 port PoE+ (≈32 W per port) |
Total PoE Budget | 195 W |
Uplink Ports | 4 × 1G SFP |
Switch Capacity | 104 Gbps switching, 52 Gbps non‑blocking |
Packet Processing Speed | ~77.38 Mpps |
Boyutlar | 442.4 × 285 × 43.7 mm |
Ağırlık | ~4.52 kg (gross 4.61 kg) |
Power Input / Consumption | 100‑240VAC, internal power supply; the device itself consumes ~45 W (excluding PoE) |
Operating Temperature | -5 °C to 40 °C |
| Protection Features | ESD/EMP: ±16 kV air, ±12 kV contact |
⚡ PoE+ supportThanks to it, you can operate hardware such as IP cameras, access points, and VoIP devices without separate power adapters.
💻 Centralized management: All devices can be controlled from a single panel with UniFi Controller.
It does not produce noise thanks to its silent and fanless (fan-free) design.
📶 Fiber uplink (SFP) support provides flexibility in backbone network connections.
🔍 With the touch LCM screen, device status, port monitoring, and network information are quickly displayed.
Although the absence of a fan is an advantage, there may be a risk of overheating when operating with a high PoE load. > “Anyone running USW‑48‑POE … heat issues with fanless design?”
🚫 Some users have reported interruptions in the PoE extraction function or port failures: > “Ports 25‑48 are completely black … switch dead in half”
⚠️ Due to its fanless design, attention must be paid to the device's internal temperature, especially when PoE is fully active, extra caution is required.
📦 A high PoE budget means that the total consumption of connected devices should not exceed this limit.
