UAP-AC-LR, Ubiquiti'sUniFibelonging to the series,long rangeIt is a wireless access point.5-pack (5 PACK)The version provides a more economical solution in networks requiring multiple AP installations. This modelhigh coverage area, Wi-Fi 5 (802.11ac)technology andUniFi ControllerIt is ideal for professional network solutions with support.
| Wireless Standard | 802.11 a/b/g/n/ac (Wi-Fi 5) |
| Frequency Band | 2.4 GHz and 5 GHz (Dual-Band) |
| Max. Wireless Speed | 2.4 GHz: 450 Mbps / 5 GHz: 867 Mbps |
| Total Speed | 1317 Mbps (1.3 Gbps) |
| MIMO Technology | 2x2 MIMO @ 5 GHz / 3x3 MIMO @ 2.4 GHz |
| Antenna Gain | 2.4 GHz: 3 dBi / 5 GHz: 3 dBi |
| Coverage Area | ~180 meters (in open areas) |

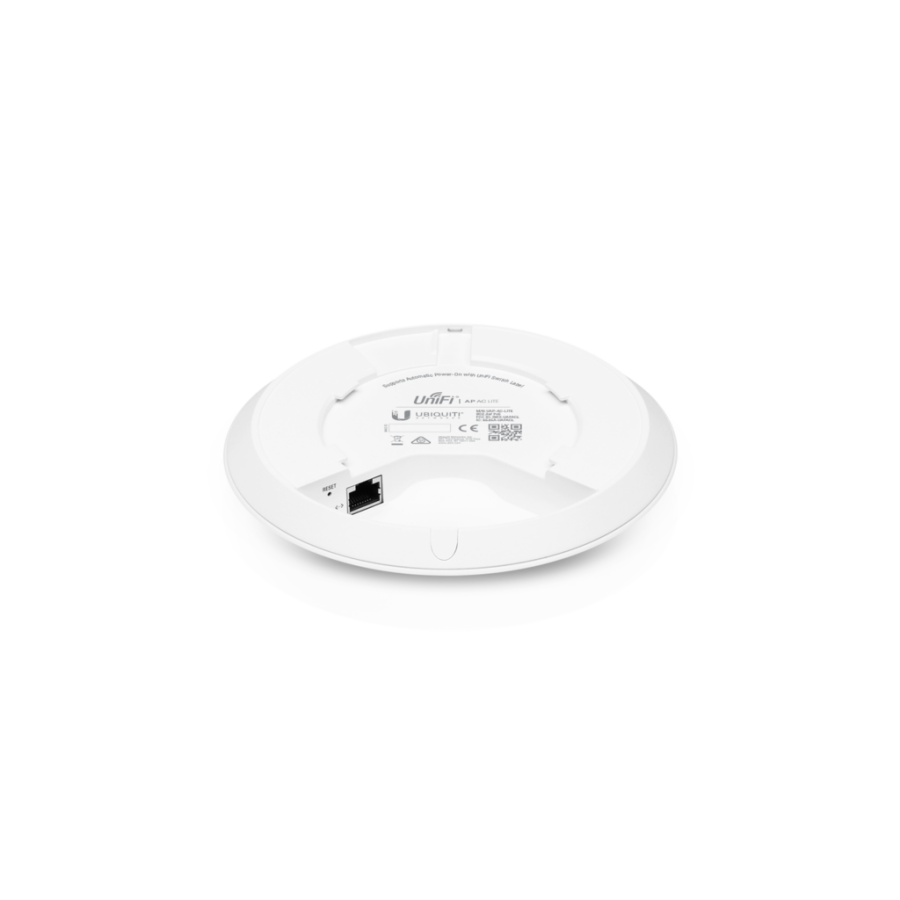

| Ethernet Port | 1 x 10/100/1000 Mbps (Gigabit RJ45) |
| PoE Standard | 802.3af (PoE) |
| Max. Power Consumption | 6.5 W |
| PoE Adapter | In 5-packs, usuallynot included |
| Boyutlar | Ø 175.7 x 43.2 mm |
| Ağırlık | 240 g |
| Montaj | Ceiling and wall mounting (kit included) |
| Operating Temperature | -10°C to 70°C |
| Kasa | Plastic is suitable for indoor use. |
Management Platform:
UniFi Network Controller (PC, Cloud Key, UDM, etc.)
UniFi mobile application (iOS/Android)
Supported Network Features:
Band steering
Sıfır el değiştirme ile dolaşım
VLAN, QoS
Guest network
DFS support
Multiple SSID, portal customization

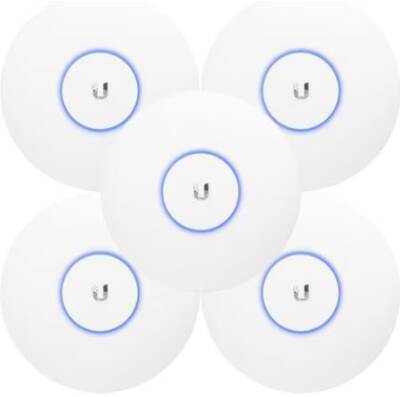

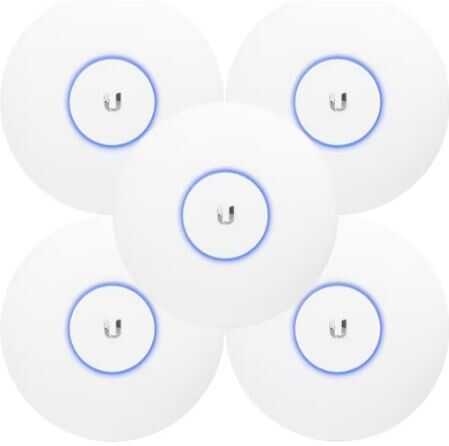

5 piecesUAP-AC-LR Access Point
5 piecesCeiling/Wall mounting kit
Installation guide
⚠️ PoE adapters are not included in the package.– Requires a PoE-enabled switch or a separate adapter.
Offices, schools, campuses
Hotels, cafes, restaurants
Retail stores
Places requiring long-range Wi-Fi coverage in large indoor areas
| Wireless Standard | 802.11ac (Wi-Fi 5) |
| Frekans | 2.4 GHz + 5 GHz |
| MIMO | 3x3 (2.4 GHz), 2x2 (5 GHz) |
| Max. Speed | 1317 Mbps |
| PoE Type | 802.3af |
| Max. Power Consumption | 6.5 W |
| Ethernet | 1x Gigabit RJ45 |
| Montaj | Wall / Ceiling |
| Yönetim | UniFi Controller |
