PBE-5AC-620

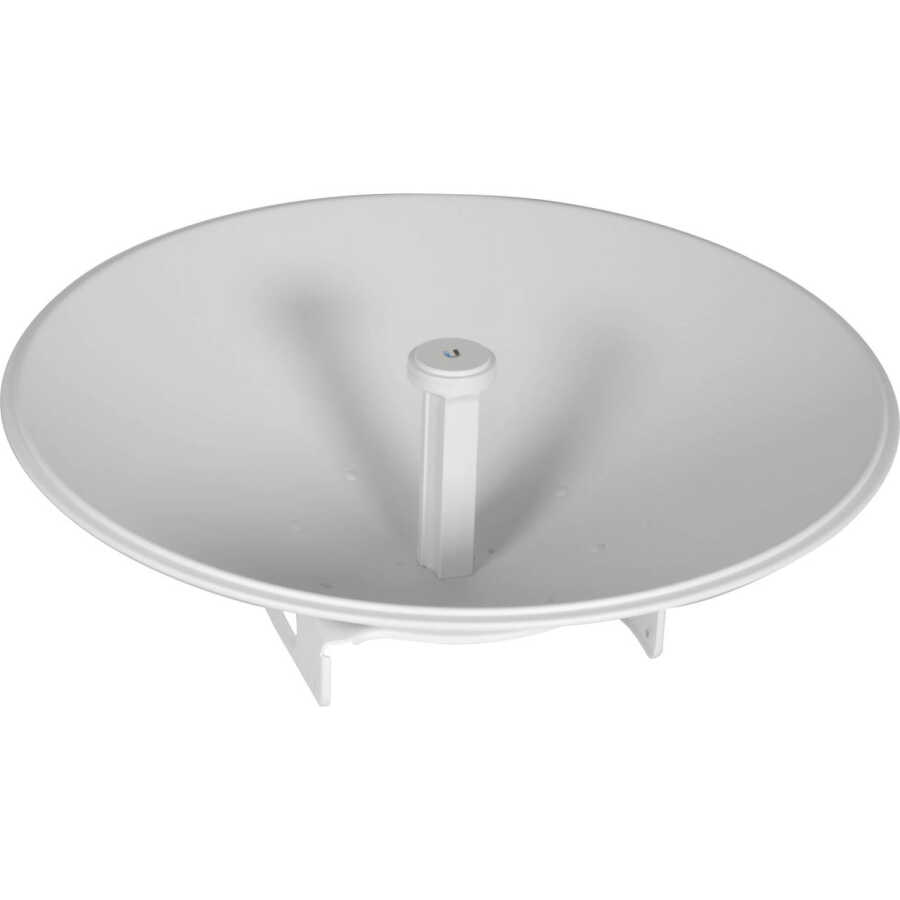

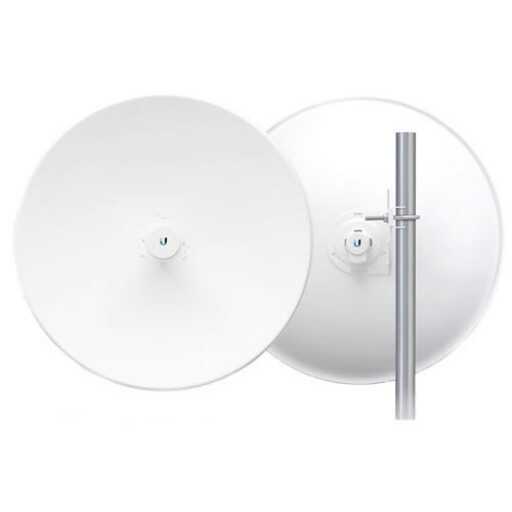

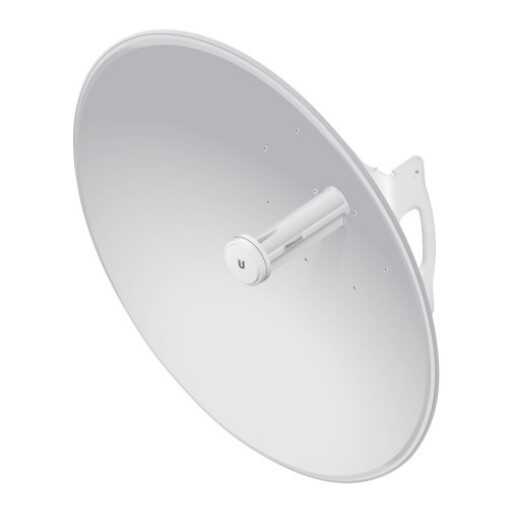

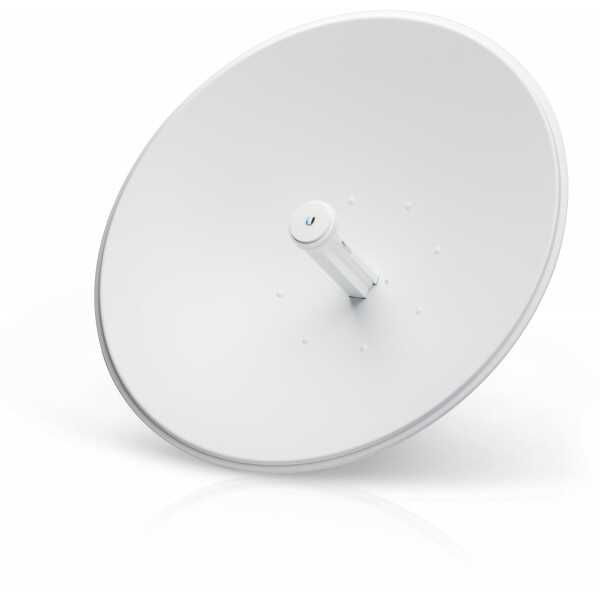

📡 PBE-5AC-620 – 5GHz 29dBi airMAX AC PowerBeam Point-to-Point CPE

Ubiquiti PowerBeam 5AC 620, long-range and high-bandwidth with a high-gain 620 mm reflector antennapoint to point (PtP)a professional designed for connectionsIt is a CPE / backhaul solution.airMAX AC technology provides maximum speed and low latency even in dense RF environments.

🔌 Connections & Ports

• 1 × 10/100/1000 Mbps Gigabit Ethernet port

• Passive PoE support (24V, 0.5A PoE adapter)

• Full integration with airMAX AC compatible devices

📡 Wireless Features

• Frequency Range: 5150 – 5875 MHz

• Antenna Gain: 29 dBi

• Antenna Diameter: 620 mm integrated parabolic reflector

• Polarization: Dual-linear

• Technology: airMAX AC, TDMA protocol

• MIMO: 2x2 MIMO support

• Channel Width: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz

⚙️ Hardware Specifications

• Processor: Atheros MIPS 74Kc, 560 MHz

• RAM: 64 MB DDR2

• Flash Memory: 8 MB

• Maximum Power Consumption: 8.5W

• LED Indicators: Power, LAN, Signal

🌦️ Durability & Environmental Conditions

• Wind Resistance: 200+ km/h

• UV resistant, suitable for outdoor conditions.

• Operating Temperature: -40°C ~ +70°C

• IP55 protection against water and dust

🛠️ Areas of Use

• Long-distance point-to-point (PtP) connections

• Carrying internet in rural areas

• High-speed wireless data transfer between institutions.

• WISP (Wireless Internet Service Providers) backhaul solutions

📦 Package Contents

• PowerBeam 5AC-620 device (antenna + radio)

• Direct mounting kit

• 24V, 0.5A PoE adapter

• Power cable
