PBE-5AC-500

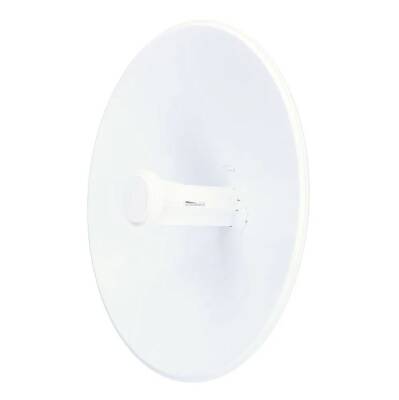

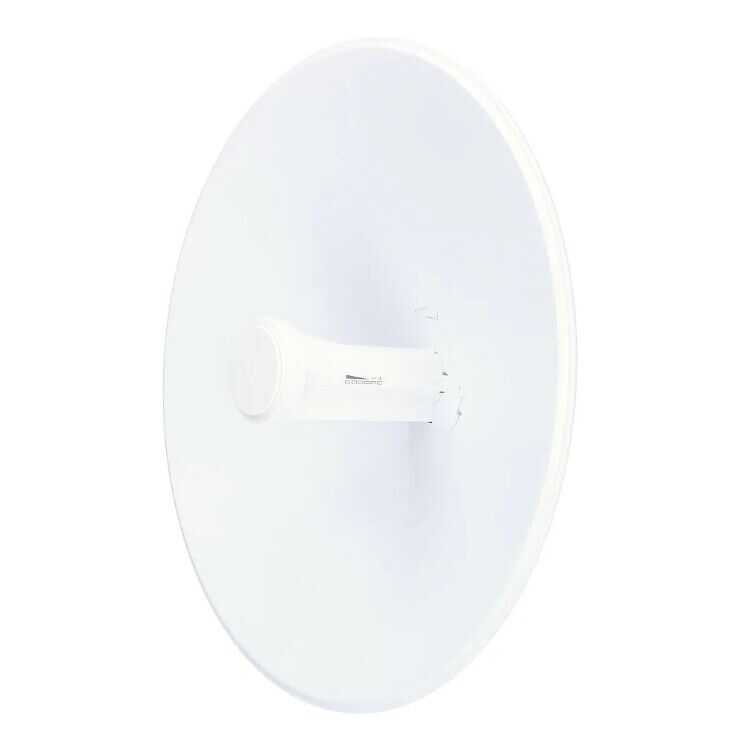

📡 PBE-5AC-500 – 5GHz airMAX AC PowerBeam CPE / PtP Device

Ubiquiti PBE-5AC-500, operating in the 5 GHz frequency band, 27 dBi high gain,point to point (PtP)and is an airMAX AC device developed for long-distance connections. It ensures signal integrity thanks to its integrated reflector structure and offers superior performance in noisy RF environments.

🔌 Connections & Ports

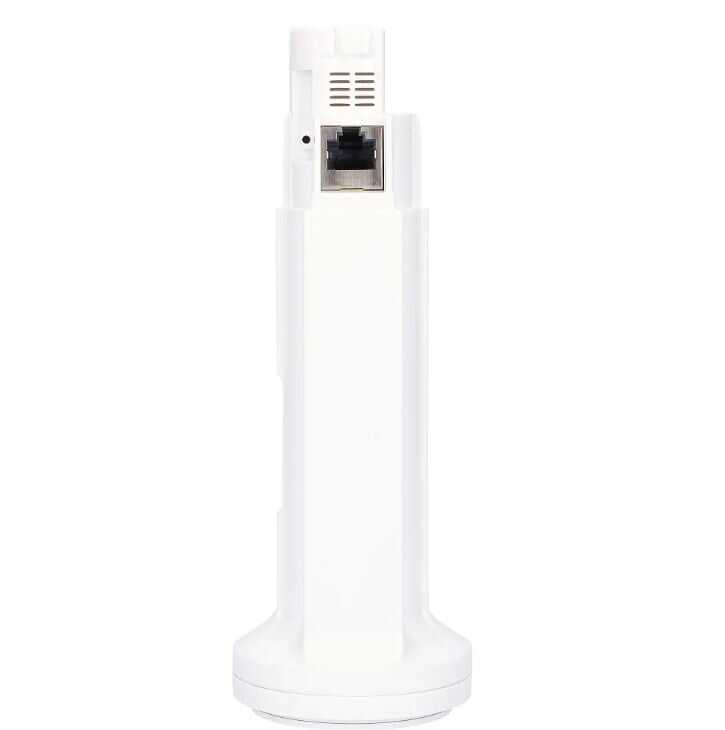

• 1 × 10/100/1000 Mbps Gigabit Ethernet port

• Passive PoE support (24V, 0.5A PoE adapter)

• Optimized for long-distance and high-speed connection

📡 Wireless Features

• Frequency Range: 5150 – 5875 MHz

• Antenna Type: 500 mm integrated reflector directional antenna

• Antenna Gain: 27 dBi

• Technology: airMAX AC, TDMA protocol

• MIMO: 2x2 MIMO support

• Channel Width: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz

⚙️ Hardware Specifications

• Processor: Atheros MIPS 74Kc, 560 MHz

• RAM: 64 MB DDR2

• Flash Memory: 8 MB

• Maximum Power Consumption: 8.5W

• LED Indicators: Power, LAN, Signal Level

🌦️ Durability & Environmental Conditions

• UV resistant sturdy plastic structure for outdoor installations

• Wind Resistance: 200 km/h

• Operating Temperature: -40°C ~ +70°C

• IP55 level water and dust resistance

🛠️ Areas of Use

• Point-to-point (PtP) long-distance connections

• Wireless internet transmission in difficult terrains such as mountains/forests

• Connections between camera systems and data centers

• High-performance backhaul solutions in WISP networks.

📦 Package Contents

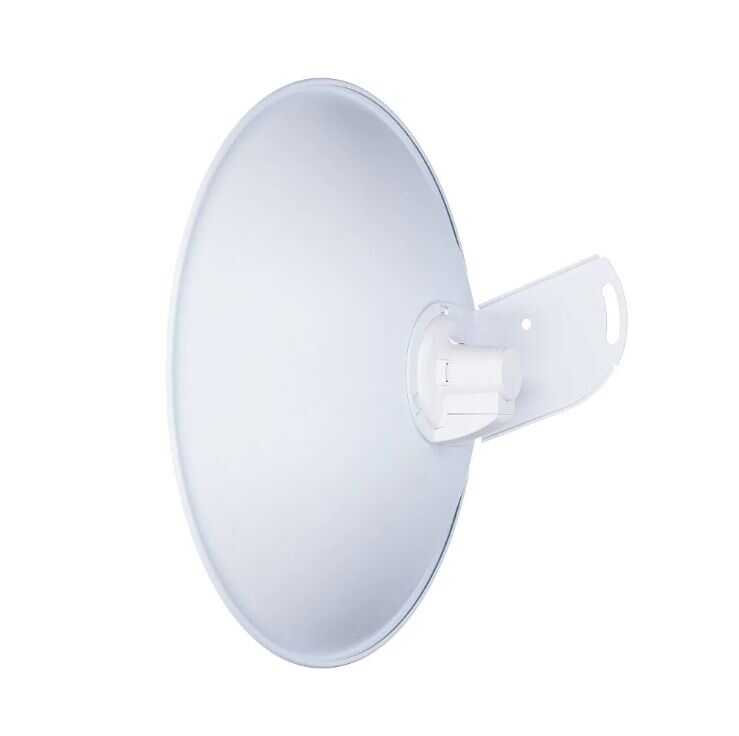

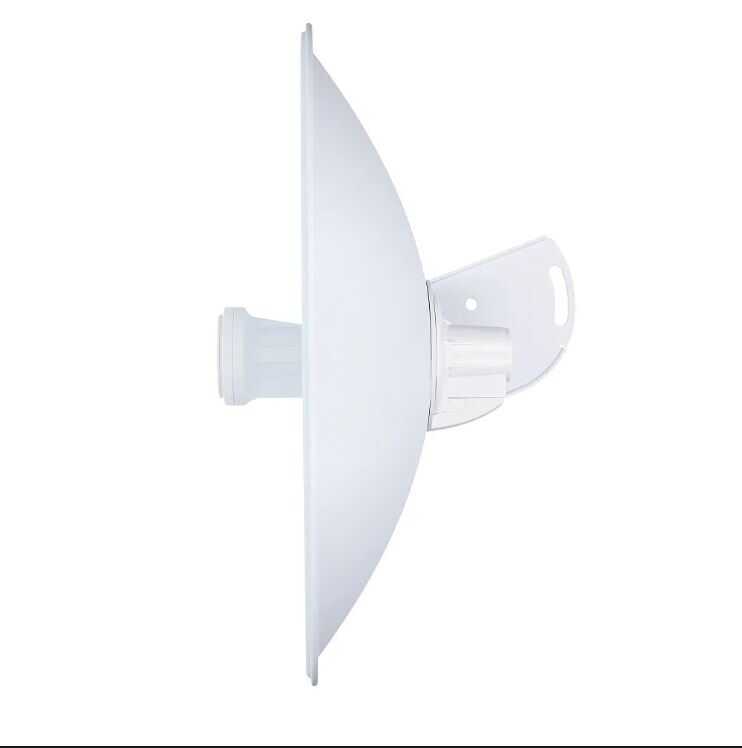

• PBE-5AC-500 device (parabolic reflector + radio unit)

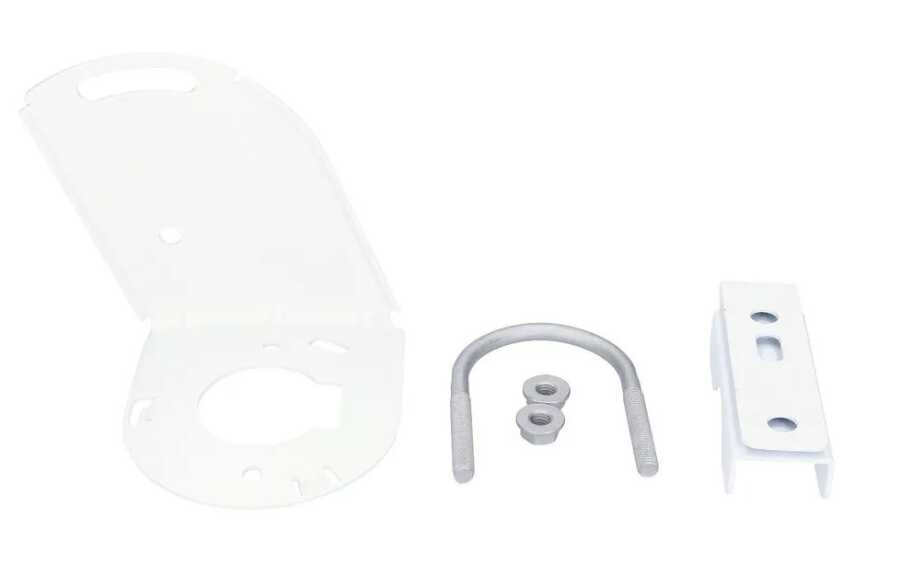

• Direct mounting kit

• 24V PoE adapter

• Power cable

• Installation guide
