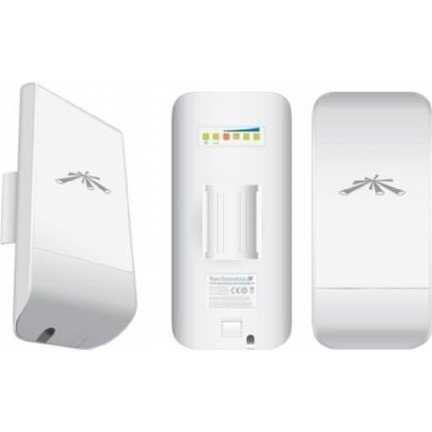

Ubiquiti NanoStation Loco M5, combining compact design and high performance, operating in the 5 GHz frequency bandIt is an outdoor CPE device.airMAX TDMA technology is ideal for point-to-point (PtP) and point-to-multipoint (PtMP) connections. It offers both cost-effective and reliable wireless solutions.
🔌 Connections & Ports
1 × 10/100 Mbps Ethernet port
PoE supported (Passive PoE 24V)
Compatible Devices: Fully compatible with all airMAX M5 series products.
📡 Wireless Features
Frequency: 5.15 – 5.85 GHz
Antenna Gain: 13 dBi integrated directional antenna
Technology: Advanced performance with airMAX TDMA protocol.
Polarization: Dual-linear
Range: Effective connection up to 10+ km.
⚙️ Hardware Specifications
Processor: Atheros MIPS 24KC, 400 MHz
RAM: 32 MB
Flash: 8 MB
Maximum Power Consumption: 5.5W
LED Indicators: Power, LAN, Signal Level
🌦️ Durability & Environmental Conditions
Weather-resistant outer casing
Operating Temperature: -30°C ~ +75°C
Humidity Resistance: 5% ~ 95% (non-condensing)
Resistant to UV rays and rain.
🛠️ Areas of Use
Point-to-point (PtP) connections
Security camera systems
Wireless data transfer from home to workplace
Small businesses and WISP projects
📦 Package Contents
NanoStation Loco M5 device
Direct mounting apparatus
24V PoE adapter and power cable
User manual
