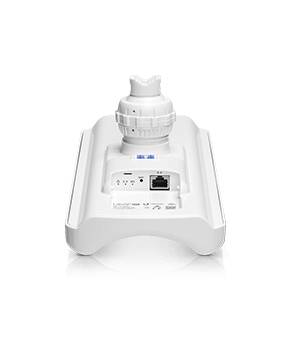

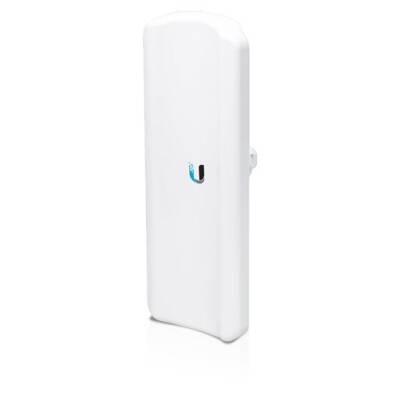

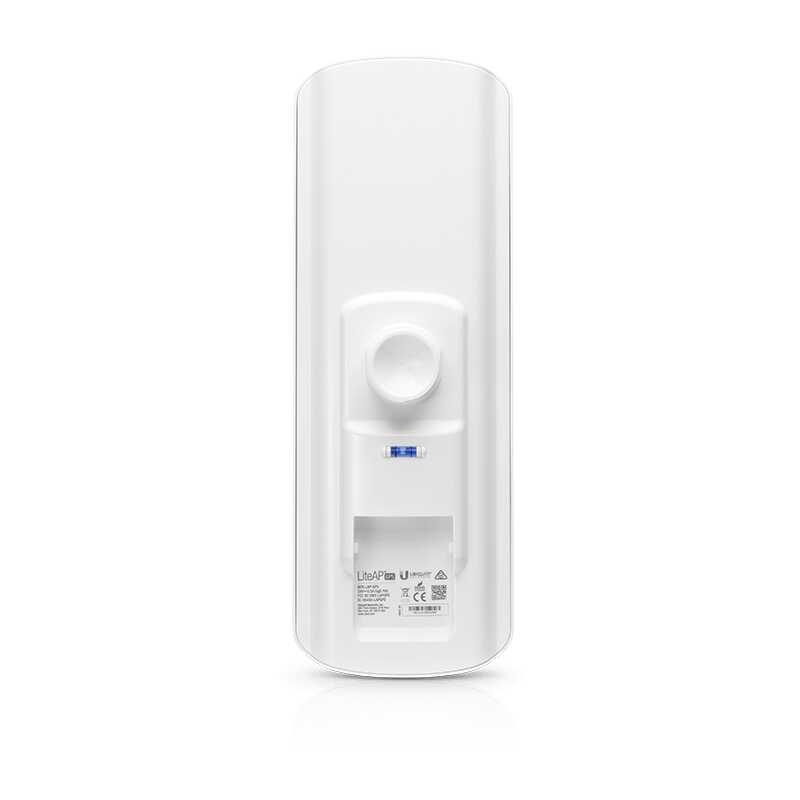

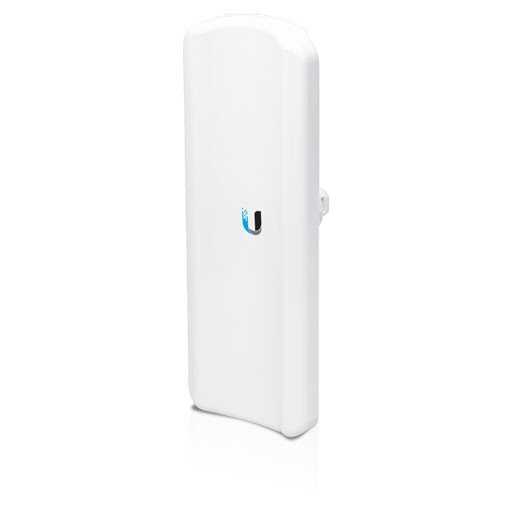

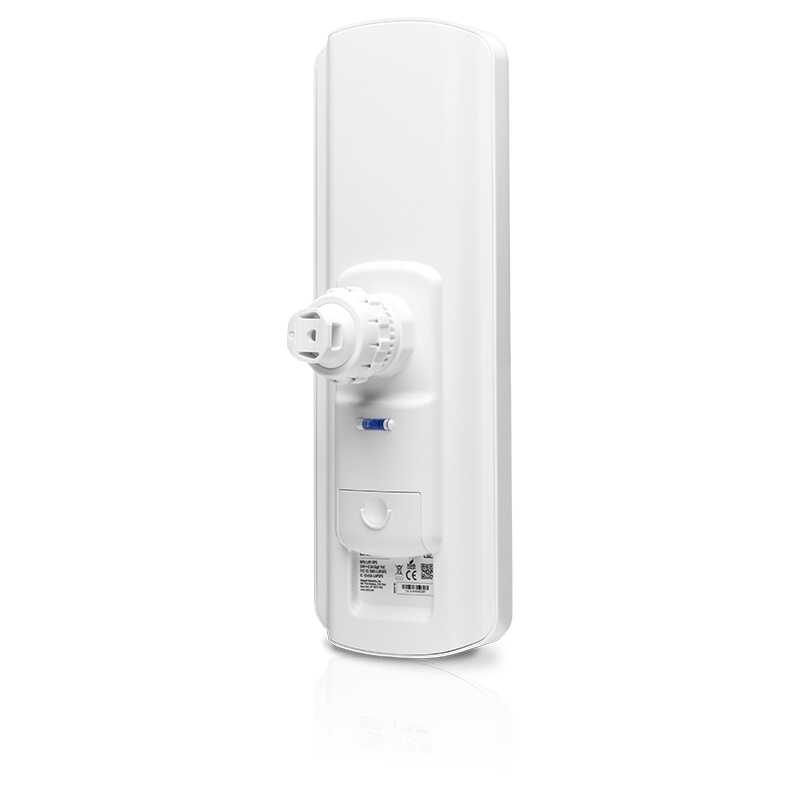

The Ubiquiti LiteBeam 5AC LAP-GPS is a high-performance device designed for outdoor wireless network installations, featuring 17dBi 90° GPS synchronization. It is particularly suitable for long-distance and high-bandwidth connections required in WISP (Wireless Internet Service Provider) infrastructures.
Wireless Standard: airMAX AC (802.11ac)
Frequency Range: 5 GHz (5150 – 5875 MHz)
Antenna Gain: 17 dBi
Antenna Type: Internal 2x2 MIMO directional antenna
Horizontal Beam Width: 90°
Vertical Beam Width: 15°
Maximum Data Rate: 866 Mbps (in the 5 GHz band)
Actual TCP/IP Throughput: 450+ Mbps
GPS Synchronization: Yes (for high scalability and interference reduction)
Wi-Fi Management Radio: Evet
İşlemci: Atheros MIPS 74Kc, 533 MHz
RAM: 64 MB DDR2
Network Interface: 1 x 10/100/1000 Mbps RJ-45 Ethernet port
Power Consumption: Maximum 7.1 W
Power Supply: 24V, 0.3A Gigabit PoE adapter (included in the package)
PoE Support: Passive PoE (input only)
Boyutlar: 360.98 x 124.57 x 71.28 mm
Ağırlık: 752 g
Operating Temperature: -40°C to 70°C
Operating Humidity Ratio: 5% to 95% (non-condensing)
Wind Resistance: Up to 200 km/h speed
Sertifikalar: CE, FCC, IC, RoHS
LiteBeam 5AC LAP-GPS device
Ball Joint Mounting Tool
Metal Clamp
24V, 0.3A Gigabit PoE Adapter
Power Cable
Operating System: airOS® v8
Supported Modes: Access Point (AP), Client, Client Router (WISP)
IPv6 Support: Yes (in bridge mode)
Default IP Address: 192.168.1.20
Default Login Information: Username:ubntPassword:ubnt
GPS Synchronization: It reduces interference and enhances network performance by providing timing synchronization between devices.
airOS 8: Advanced RF analysis, real-time performance monitoring, and a user-friendly interface are provided.
High Performance: It is ideal for applications requiring high bandwidth with a real data transfer rate of 450+ Mbps.
