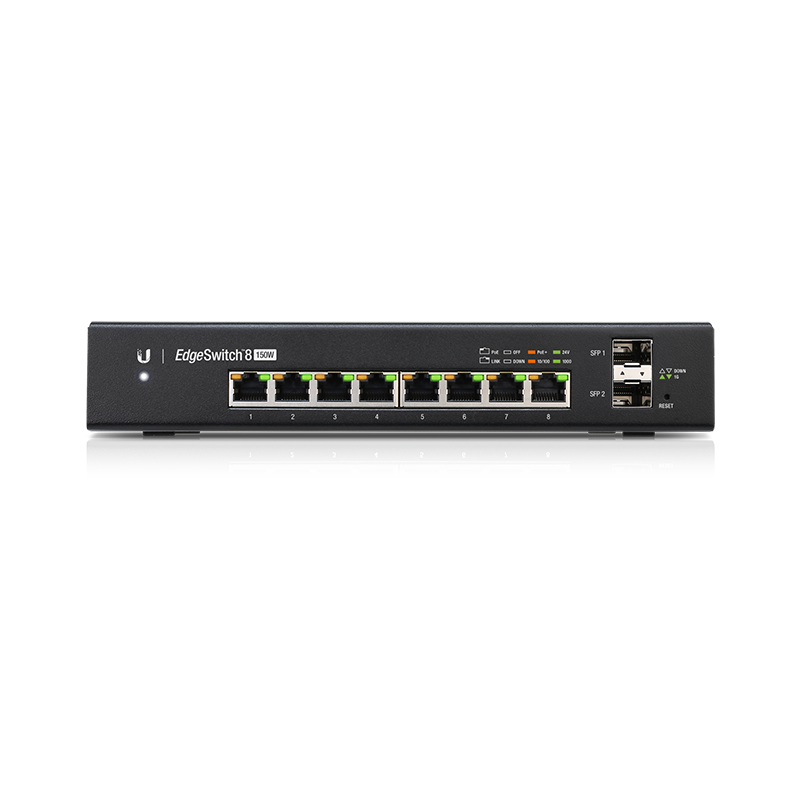

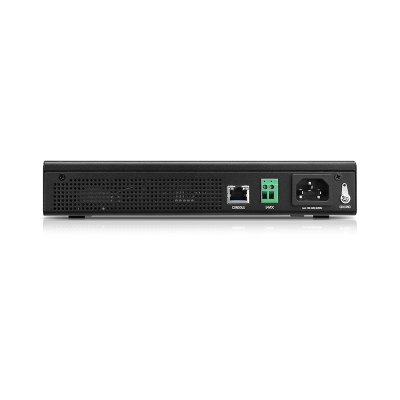

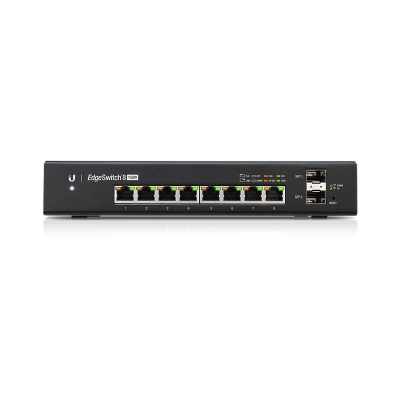

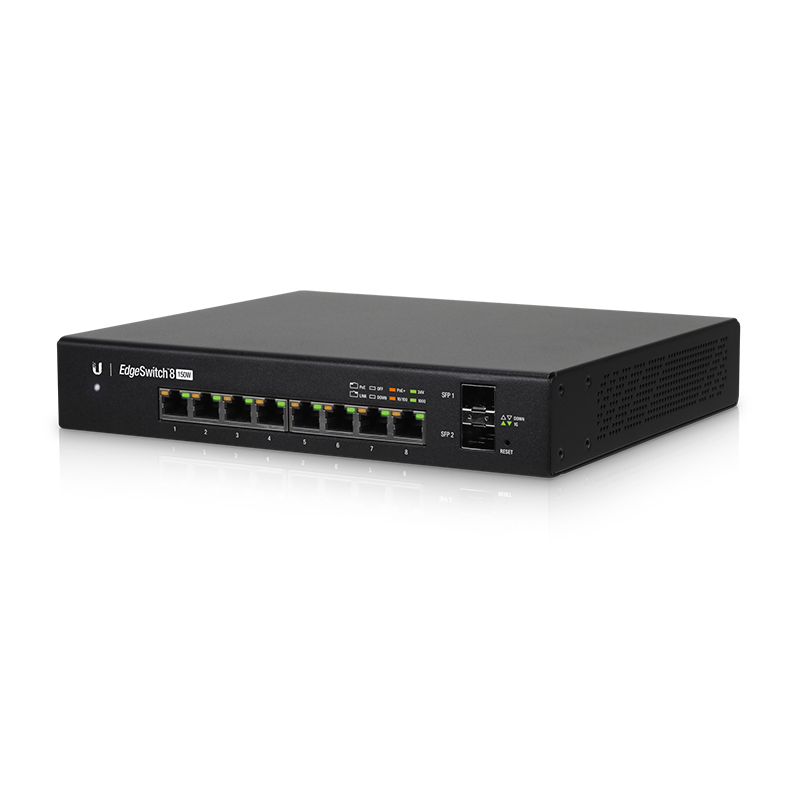

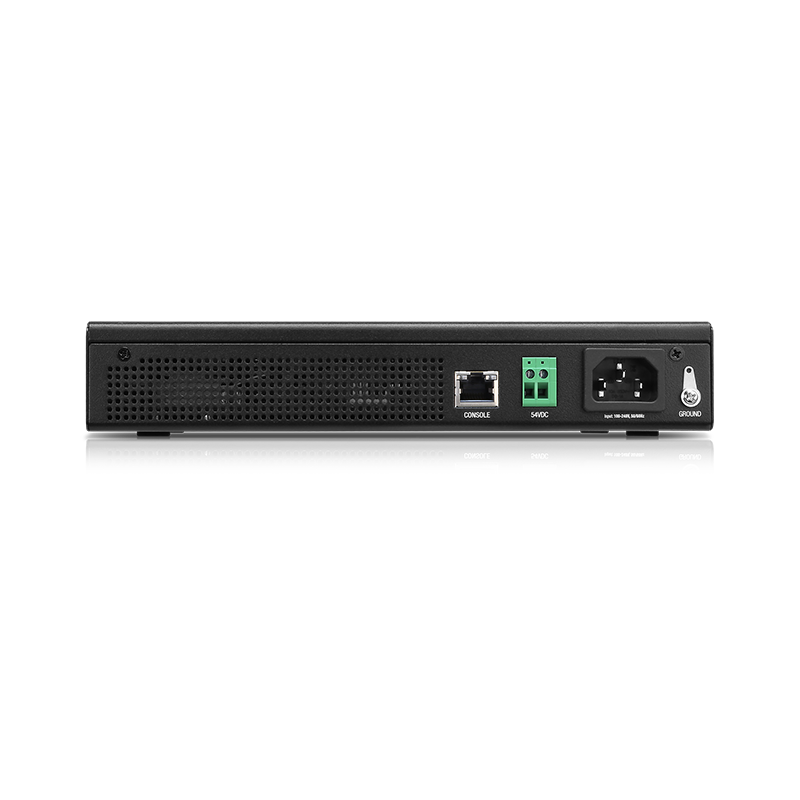

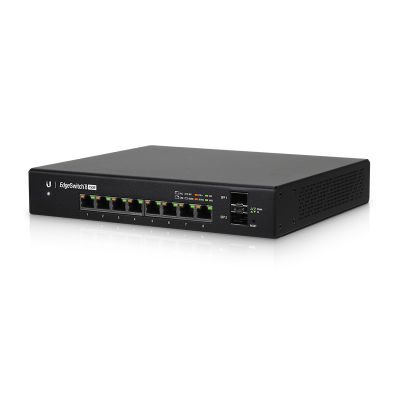

Ubiquiti EdgeSwitch 8 150W, a high-performance manageableLayer 2 switchand limitedLayer 3 routingIt also provides support.PoE+ support ve SFP uplinkThanks to its ports, it is suitable for both small businesses and advanced networks.
| Model | ES-8-150W |
| Seri | EdgeMAX / EdgeSwitch |
| Type of Management | Manageable (Web GUI, CLI, SNMP) |
| Layer Support | Layer 2 (full) + Layer 3 (static routing) |
| RJ45 Gigabit Ethernet | 8 x 10/100/1000Mbps | All PoE supported |
| SFP (1G) Fiber Ports | 2 | For uplink and fiber connection |
| PoE Standard | 802.3af/at and Passive 24V |
| Total PoE Power | 150 W |
| Number of PoE Ports | 8 port |
Each port's assignable power output can be set as PoE or PoE+ depending on the device type. It is also compatible with passive 24V PoE devices.
| Switching Capacity | 20 Gbps |
| İletim Hızı | 14.88 Mpps |
| MAC Address Table | 8000 entries |
| Jumbo Frame | 9,216 bytes |
| Buffer Memory | 1 MB |
Web-based GUI and CLI support (telnet/SSH)
SNMP v1, v2, v3 support
VLAN, STP/RSTP/MSTP, QoS, port mirroring
Static routing support (limited Layer 3)
IGMP Snooping, DHCP Snooping
ACL (Access Control Lists)
| Boyutlar | 204 x 43 x 235 mm |
| Ağırlık | 1.70 kg |
| Montaj | Wall or desktop |
| Soğutma | Active (with fan) |
| Power Input | 100-240V AC, 50/60 Hz |
| Max. Power Consumption | 150 W |
| Operating Temperature | -5°C to +40°C |
