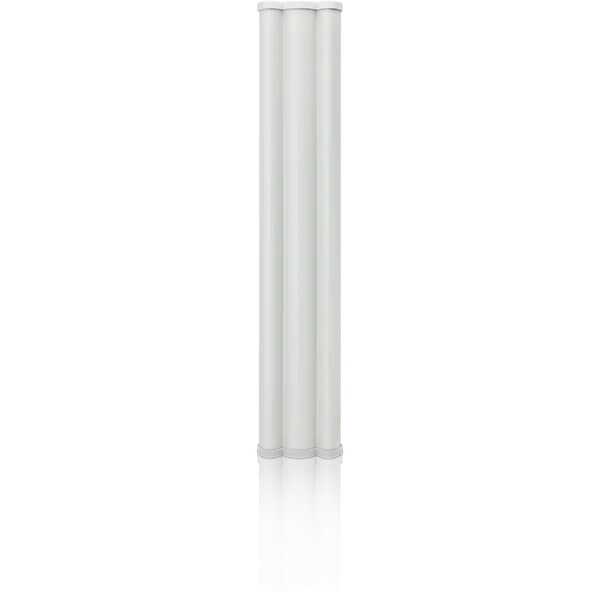

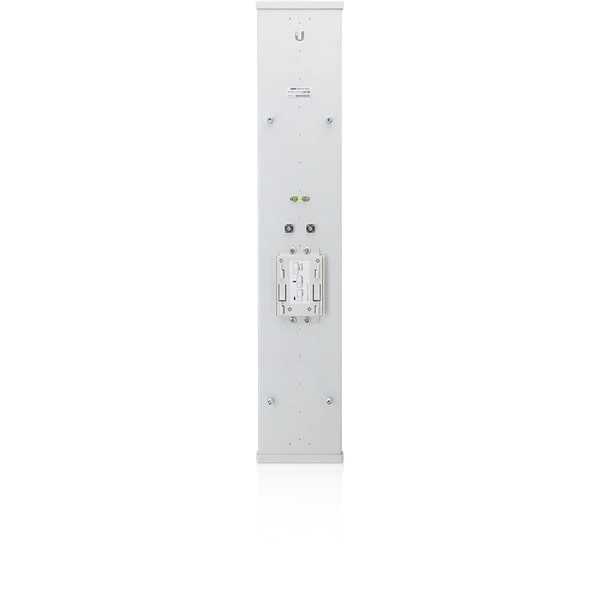

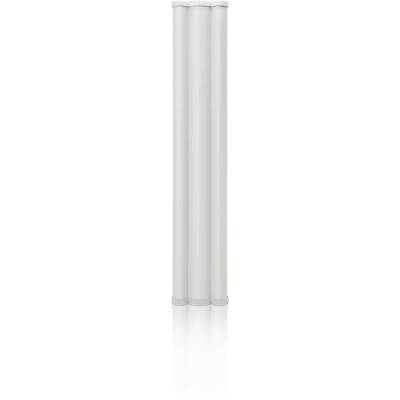

Pair the airMAX® Sector Antenna with a Rocket™M Base Station for sector coverage in Point-to-Multipoint (PtMP) networks with the airMAX® 2×2 Base Station Sector Antenna.
Model: AM-5G19-120
Dimensions: 700 x 135 x 73 mm
Weight: 5.9 kg
Frequency Range: 5.15 – 5.85 GHz
Gain: 18.6 – 19.1 dBi
HPOL Beamwidth: 123° (6 dB)
VPOL Beam Width: 123° (6 dB)
Electrical Beam Width: 4°
Electric Downward Slope: 2°
Maximum VSWR: 1.5:1
Wind Resistance: 125 miles/hour
Wind Load: 20 lbf @ 100 mph
Polarization: Bilinear
Cross Polarization Isolation: Minimum 28 dB
ETSI Compliance: EN 302 326 DN2
