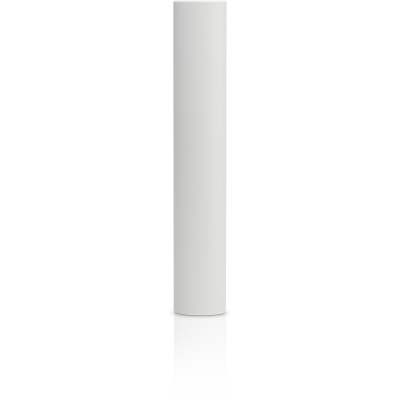

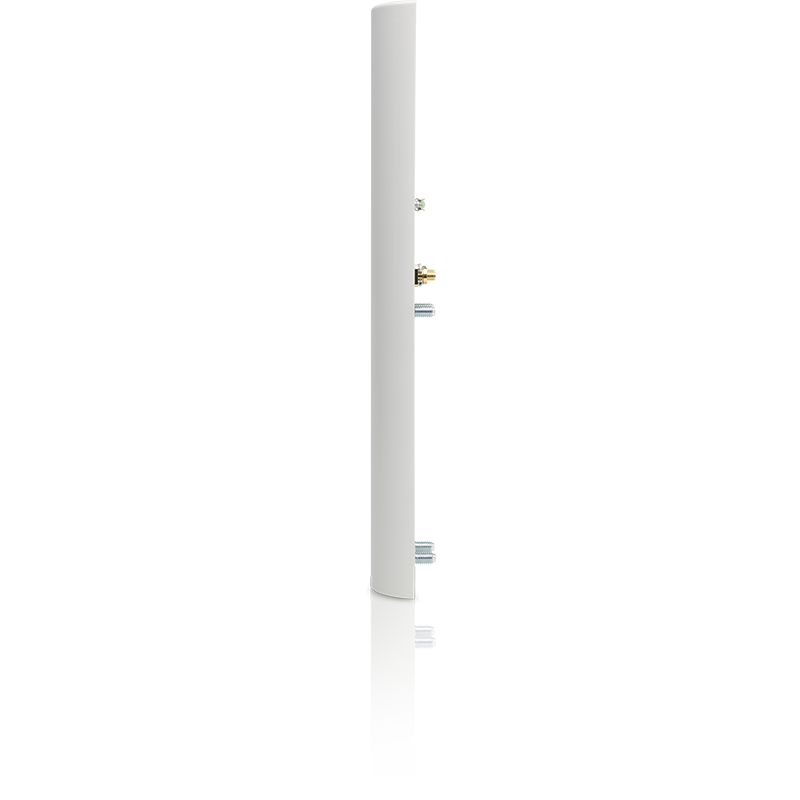

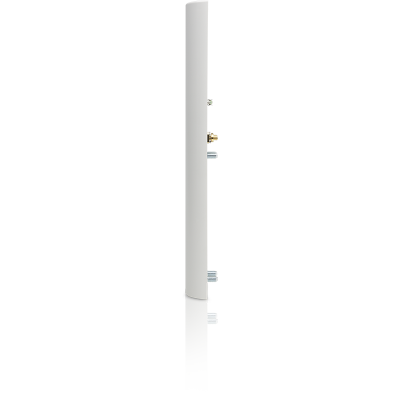

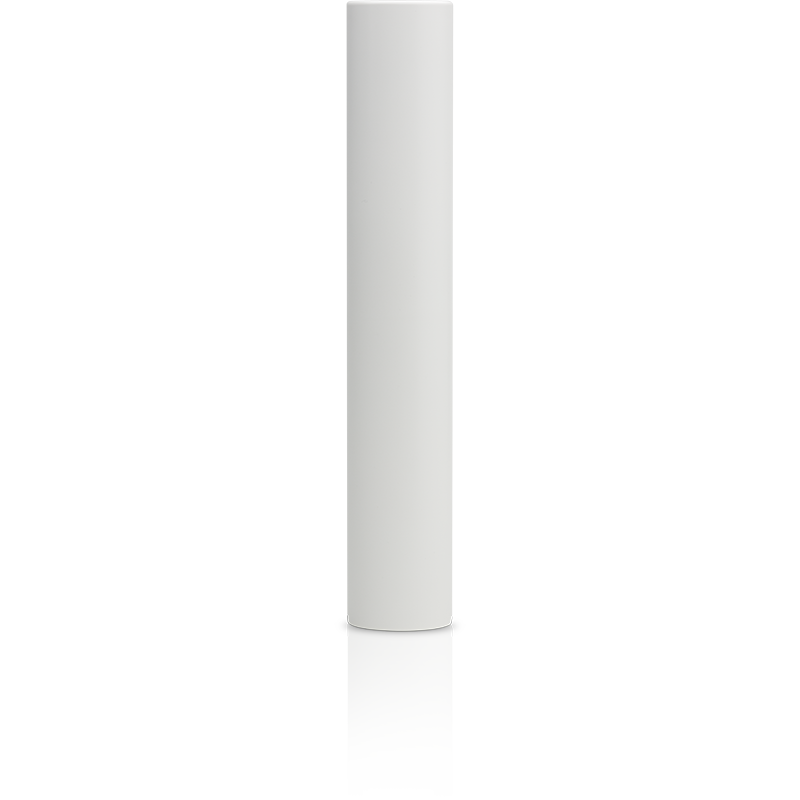

Ubiquiti AM-5G17-90

AM-5G17-90

AM-5G17-90, Ubiquiti Networksproduced byAirMaxseries oneMIMO antennais a model. This antenna, especially5 GHzIt provides high performance on its band andPoint-to-Point (PtP) veya Point-to-MultiPoint (PtMP)is used for connections.AirMaxOptimized with technology.

⚙️ General Features

• Model:AM-5G17-90

• Frequency Range:5.1 GHz - 5.9 GHz(5 GHz band)

• Kazanç:17 dBi

• Beam Angle (Beamwidth):90°(horizontal and vertical)

• Connection Type:MIMO(Multiple Input Multiple Output) technology withdual-polarizasyon sağlar.

• Operating Mode:Point-to-Point (PtP) ve Point-to-MultiPoint (PtMP)suitable for connections.

• Polarizasyon:Dual Polarization(Horizontal & Vertical)

• Connection Type:RP-SMAThe antenna is connected using a (Reverse Polarity SMA) connector.

🛠️ Physical Properties

• Boyutlar:Yaklaşık 560 mm x 560 mm x 200 mm.

• Ağırlık:1.9 kg.

• MalzemeHigh qualityplastic and metalThe use of material increases durability.

• Protection Degree:IP X4(limited protection against water).

✅ Compatibility and Usage Areas

• Compatibility with Ubiquiti AirMax Devices:
  This antenna,With Ubiquiti AirMax devicesis compatible and generallyRocket M5, AirFiberand is used with similar devices.

• Areas of Use:

  • PTP ConnectionsIdeal for long-distance connections.

  • PTMP ConnectionsSuitable for multiple user connections.

  • Network ExpansionIt provides strong and stable connections over large areas.

🌦️ Environmental Conditions

• Operating Temperature:-40°C to +70°C arasında.

• Moisture Resistance:90%until.

💡 Performance Characteristics

• High Performance AntennaIt provides 17 dBi gain, enabling strong connections even over long distances.

• Wide-Angle RoutingA 90° wide beamwidth provides strong signals, especially in large areas.

📦 Package Contents

• AM-5G17-90 Antenna

• Assembly KitThe kit required for easy assembly of the antenna.

• User Manual
