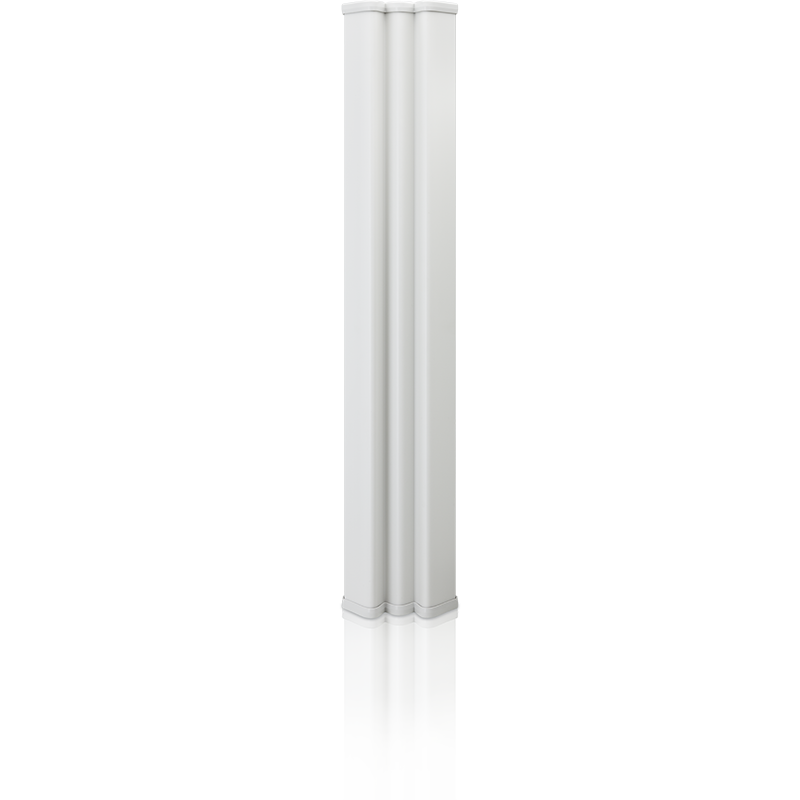

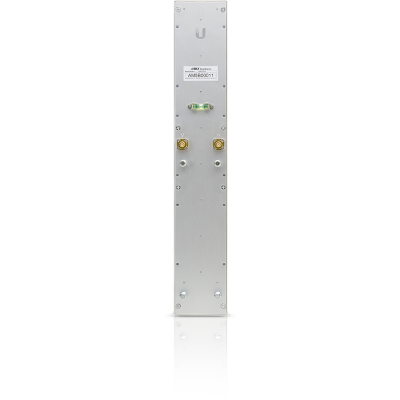

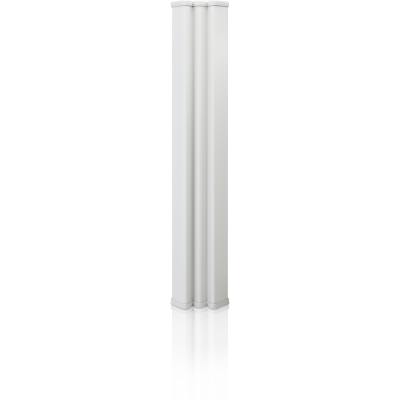

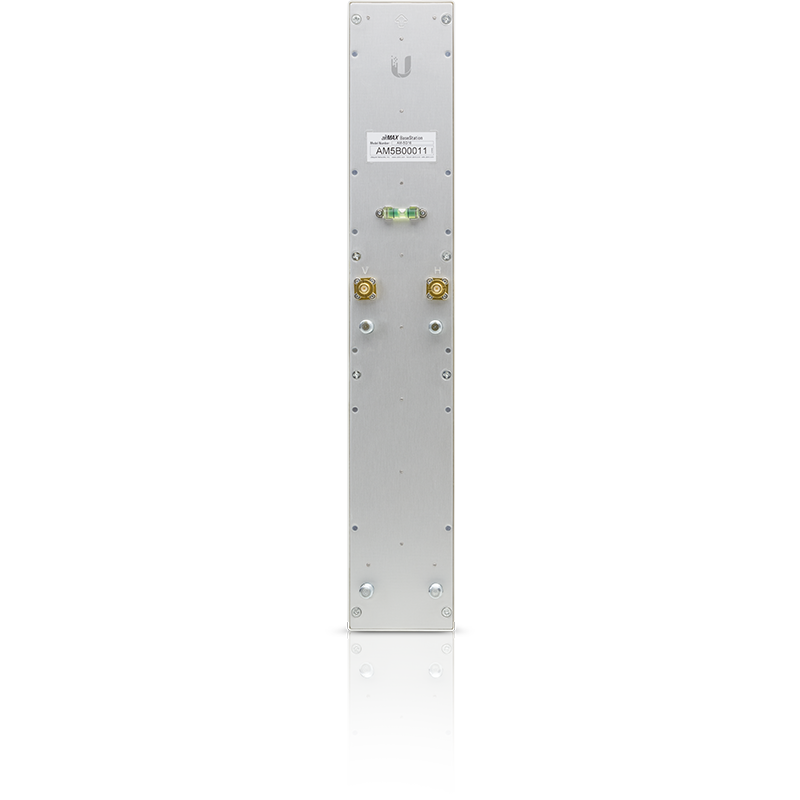

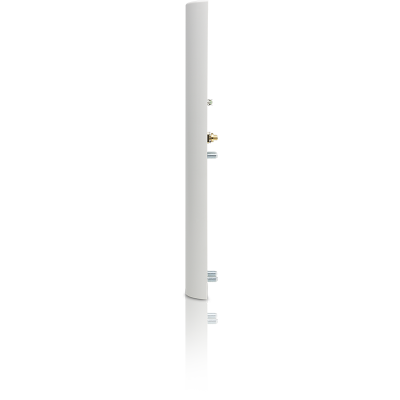

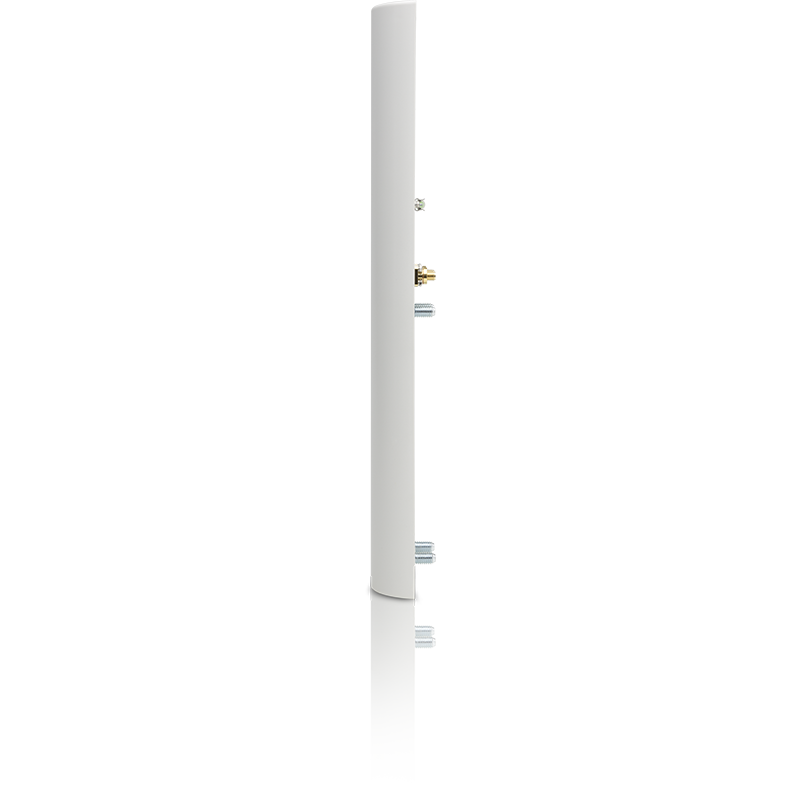

The Ubiquiti AM-5G16-120 is a sector antenna operating in the 5 GHz band, offering a 120° horizontal coverage angle and 16 dBi gain. This antenna is specifically designed for Point-to-MultiPoint (PtMP) networks to provide high-performance wireless connectivity over wide areas.
Frequency Range5.10 – 5.85 GHz
Kazanç15.0 – 16.0 dBi
Horizontal Beamwidth (6 dB): 137°
Vertical Beamwidth (6 dB): 118°
Electrical Beamwidth8°
Electrical Downtilt: 4°
PolarizasyonDual-Linear
VSWR (Maximum)1.5:1
Cross Polarization IsolationMinimum 22 dB
Wind Resistance: 200 km/h (125 mph)
Wind Load26 N @ 160 km/h (6 lbf @ 100 mph)
MontajUniversal pole mount, RocketM bracket, and weather-resistant RF jumper cables are included.
Wide Coverage AreaA 120° horizontal coverage angle provides effective signal transmission over wide areas.
High GainIt offers up to 16 dBi gain, establishing strong connections even over long distances.
Durable StructureIt is resistant to harsh weather conditions due to its high wind resistance and robust structure.
Easy InstallationIt offers quick and easy installation with assembly kits and compatible RocketM devices.
Beamwidth ValuesThe horizontal beamwidth of the antenna is 137°, while the vertical beamwidth is 118°. This indicates that the antenna's coverage area is wide in both directions. However, some users note that the antenna's theoretical 120° coverage area might be slightly wider.
UyumlulukThis antenna is compatible with Ubiquiti RocketM series devices. For compatibility with other devices, the technical documents provided by the manufacturer should be checked.
The Ubiquiti AM-5G16-120 is an ideal sector antenna for users seeking high-performance wireless connections over wide areas. With its high gain, extensive coverage, and durable structure, it is particularly preferred in Point-to-MultiPoint networks. During installation, it is important to ensure that the antenna's beamwidth and compatibility features align with your existing system.
