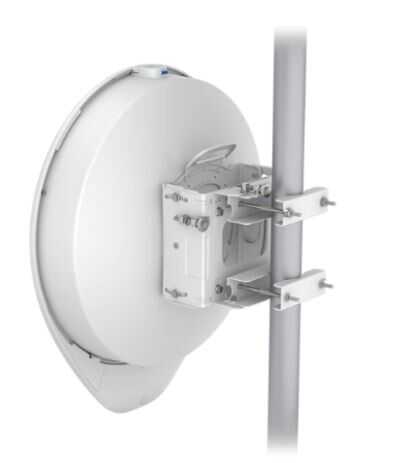

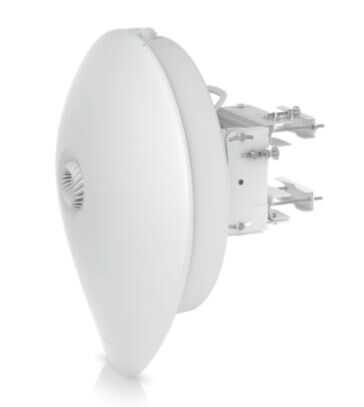

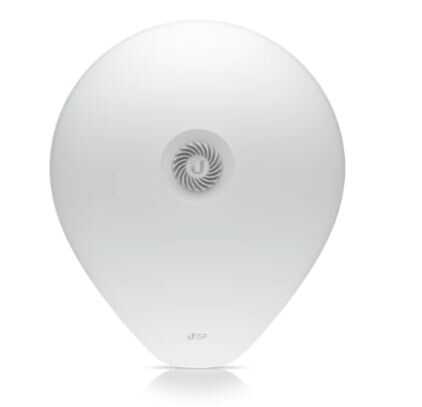

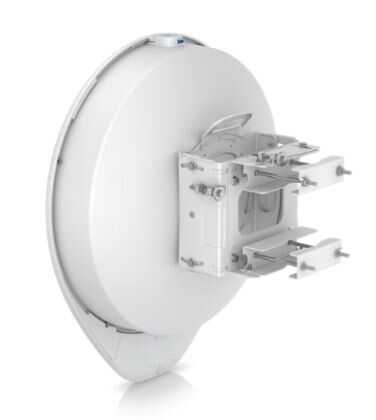

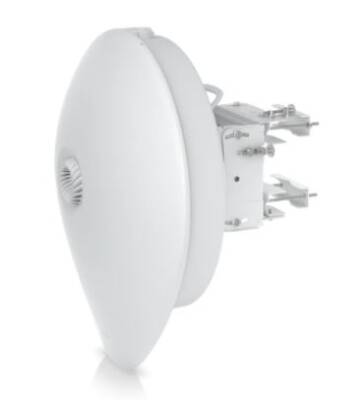

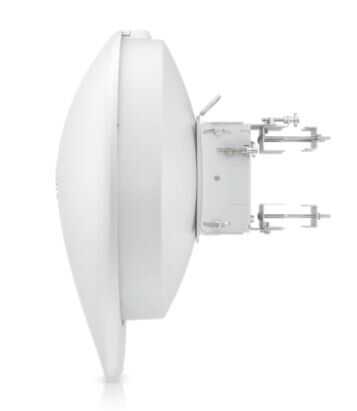

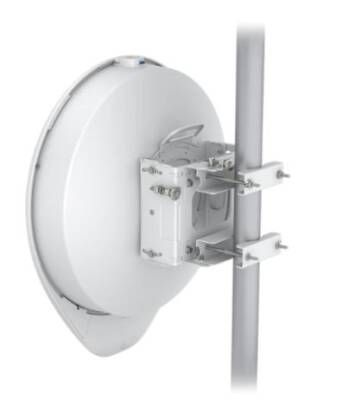

📡 AF60-XR (Ubiquiti airFiber 60 XR)

📝 Overview

• Long-range 60 GHz Point-to-Point (PtP)bridge solution.

• Stable connection over long distances with a narrower beam and higher gain.

• For redundant connection,5 GHz failover radio entegre.

• It has wireless capacity of up to 10 Gbps.

⚙️ Technical Specifications

• Operating Frequency:57 – 71 GHz (60 GHz band) + 5 GHz backup.

• Kapasite:Up to 10 Gbps (full duplex).

• Max. Range:~15+ km (in the 60 GHz band).

• Gain (60 GHz):~43 dBi.

• Gain (5 GHz):~26 dBi.

• Radio Technology:airFiber XR, Wave Technology.

• Şifreleme:Secure connection with WPA3 support.

📐 Physical Properties

• Boyutlar:460 × 460 × 316 mm (approximately).

• Ağırlık:Around 6.5 kg.

• Güç:48VDC, 802.3bt PoE+ supported.

• Max. Power Consumption: ~50W.

• Bağlantılar:

  • 1 × 10G SFP+ port

  • 1 × 1G RJ45 port

• Operating Temperature:-40°C to +55°C.

🌦️ Endurance

• IP66 weather-resistant design.

• Wind load high durability (up to 110 mph / 180 km/h).

• Suitable for challenging environmental conditions.

🔌 Compatibility / Usage Area

• Management fully compatible with Ubiquiti UISP (formerly UNMS).

• WISPs are ideal for long-distance bridging as an alternative to fiber PtP connections.

• It provides continuity during connection interruptions thanks to the backup 5 GHz.

👥 Usage Scenario

• In areas where fiber infrastructure is not available,long distance high speed internet bridge.

• Company buildings, data centers, or remote village-city connections.

• WISP service providers'backhaul çözümleri.
