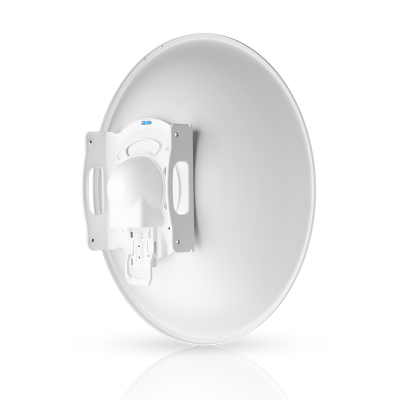

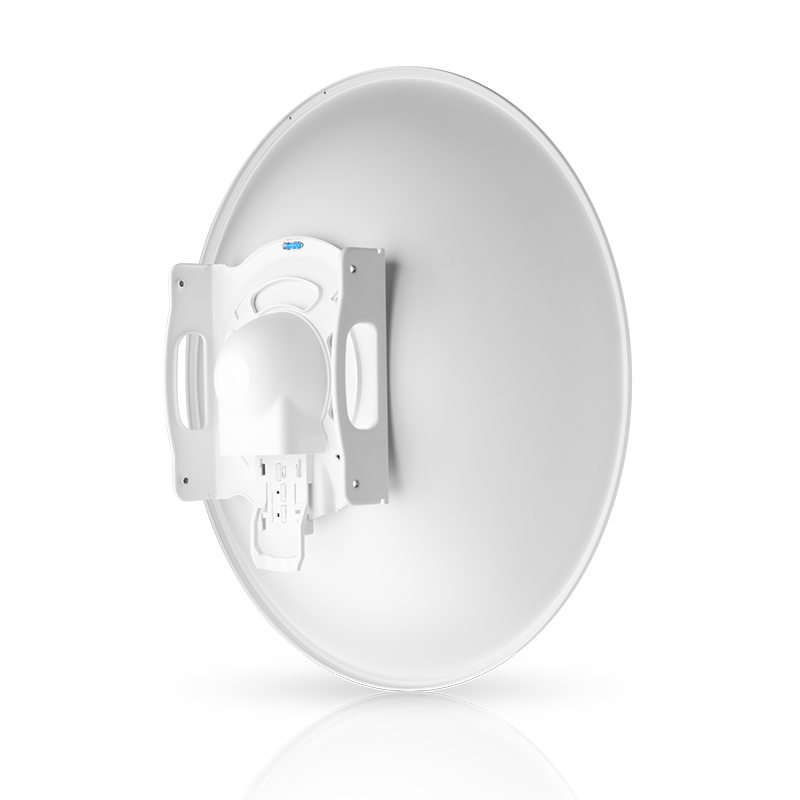

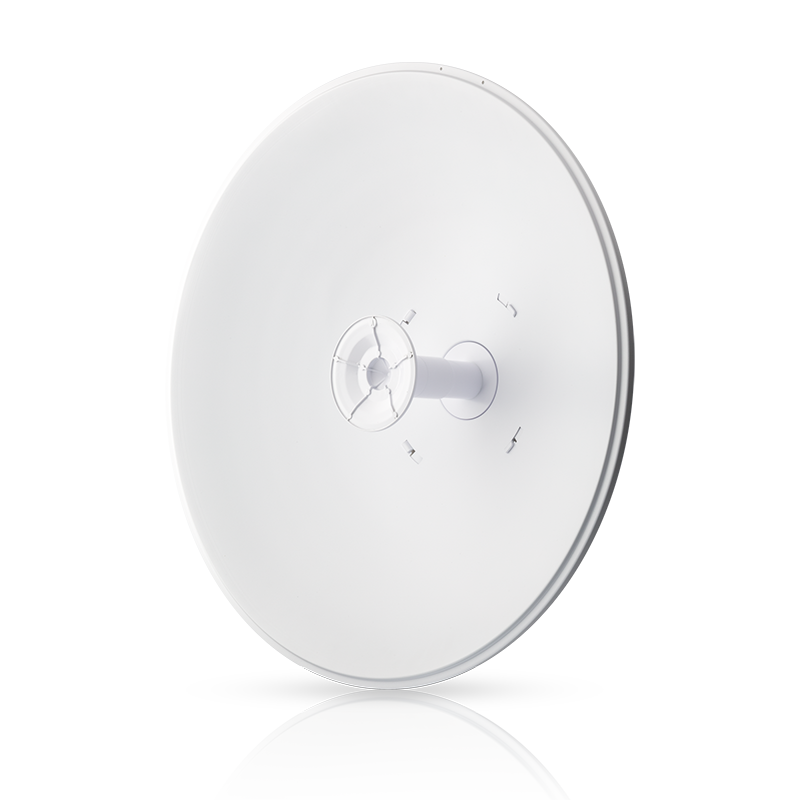

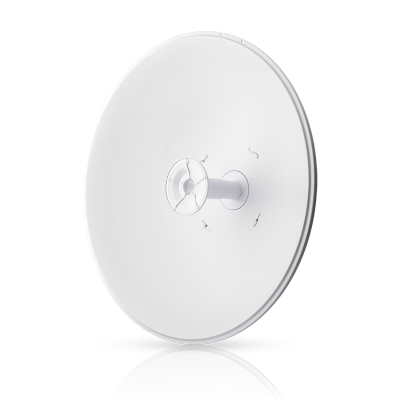

Ubiquiti AF-5G30-S45It is a parabolic antenna model designed for Ubiquiti's airFiber 5X series, operating in the 5 GHz frequency band, with 30 dBi gain and ±45° slant polarization. It is optimized to deliver high performance in long-distance Point-to-Point (PtP) connections.
| Özellik | Değer |
|---|---|
| Frequency Range | 5.1 – 5.9 GHz |
| Kazanç | 30 dBi (within the 5.0 – 5.9 GHz range) |
| Beamwidth (3 dB) | ±45° for 5.8° |
| F/B Ratio (Backward/Forward) | 30 dB |
| Max. VSWR | 1.6:1 |
| Cross Polarization Isolation | Min. 35 dB |
| Wind Resistance | 200 km/h (125 mph) |
| Wind Load | 790 N @ 200 km/h |
| Mounting Type | Universal pole mount, including AirFiber X radio bracket and weather-resistant RF connectors. |
| Boyutlar | Ø650 x 386 mm (25.6 x 15.2 inches) |
| Ağırlık | 7.4 kg (including mounting device) |
High Gain30 dBi gain is ideal for long-distance connections.
Oblique Polarization±45° slanted polarization reduces interference and improves signal quality.
Durable StructureIt is resistant to wind speeds of up to 200 km/h and provides reliable performance in harsh weather conditions.
Easy IntegrationThe airFiber X is compatible with the radio and offers fast and easy installation.
Frequency BandThe 5 GHz band is more susceptible to interference and channel congestion in some areas; therefore, environmental analysis is recommended.
Mounting PositionFor optimal performance, proper alignment of the antenna and mounting at an appropriate height are important.
UyumlulukAF-5G30-S45 antenna is only compatible with the airFiber X series; it cannot be used with other devices.
| Product Name | Price (USD) | Satıcılar |
|---|---|---|
| Ubiquiti AF-5G30-S45 | $125.00 | Ubiquiti Store |
| Ubiquiti AF-5G30-S45 | ₺2.500,00 | WiFi Turkey |
Ubiquiti AF-5G30-S45, is an antenna model that offers high gain and low interference for long-distance PtP connections. It is compatible with the airFiber X series and provides reliable performance even in harsh weather conditions. By conducting an environmental analysis before installation, it is possible to achieve the best performance.
