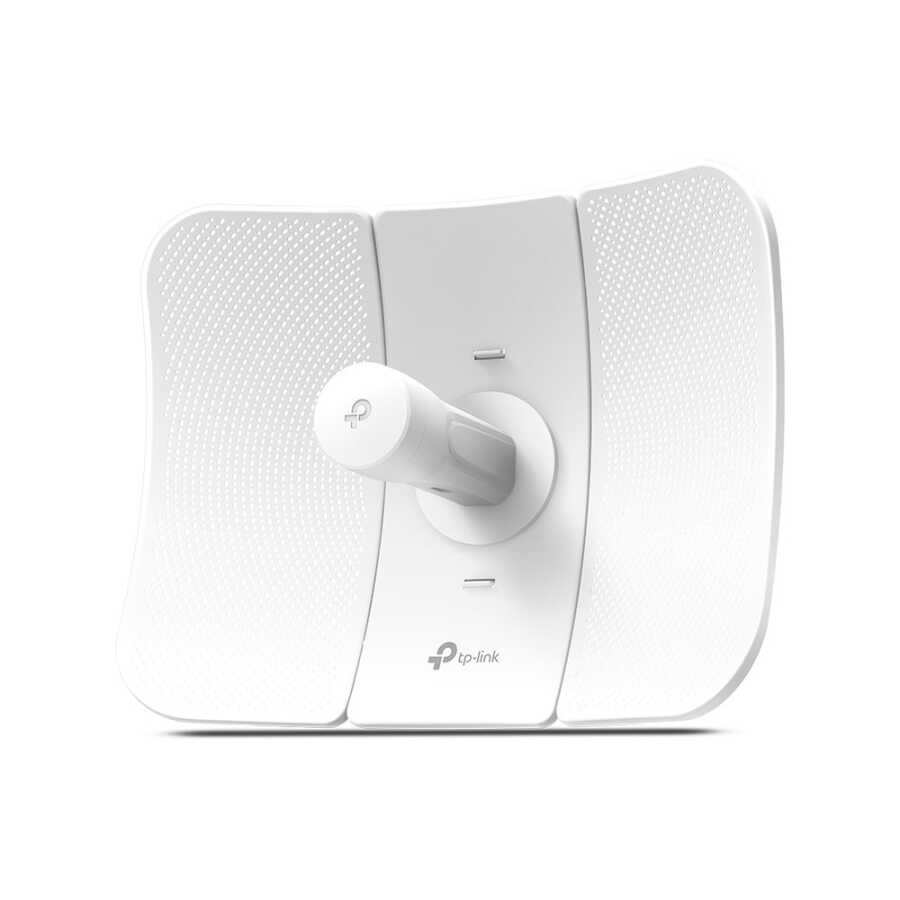

TP-Link CPE710It is an outdoor device designed for long-range wireless connections with a 23 dBi high-gain directional antenna, capable of data transmission up to 867 Mbps at 5 GHz frequency. It supports the 802.11ac (Wi-Fi 5) standard and is ideal for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) applications.
| Frequency Band | 5 GHz |
| Wi-Fi Standard | 802.11ac (Wi-Fi 5) |
| Max. Data Rate | 867 Mbps |
| Antenna Type | 23 dBi Directional Cassegrain Antenna |
| MIMO Structure | 2x2 MIMO |
| Modülasyon | 256-QAM |
| Bandwidth | 80 MHz |
| PoE Support | Passive PoE (24V) |
| Protection Features | 15 kV ESD and 6 kV Lightning Protection |
| Operating Temperature | Between -30°C and 70°C |
| Protection Class | IP65 (Dust and water resistant) |
| Management Software | Pharos Control Center Management Software |

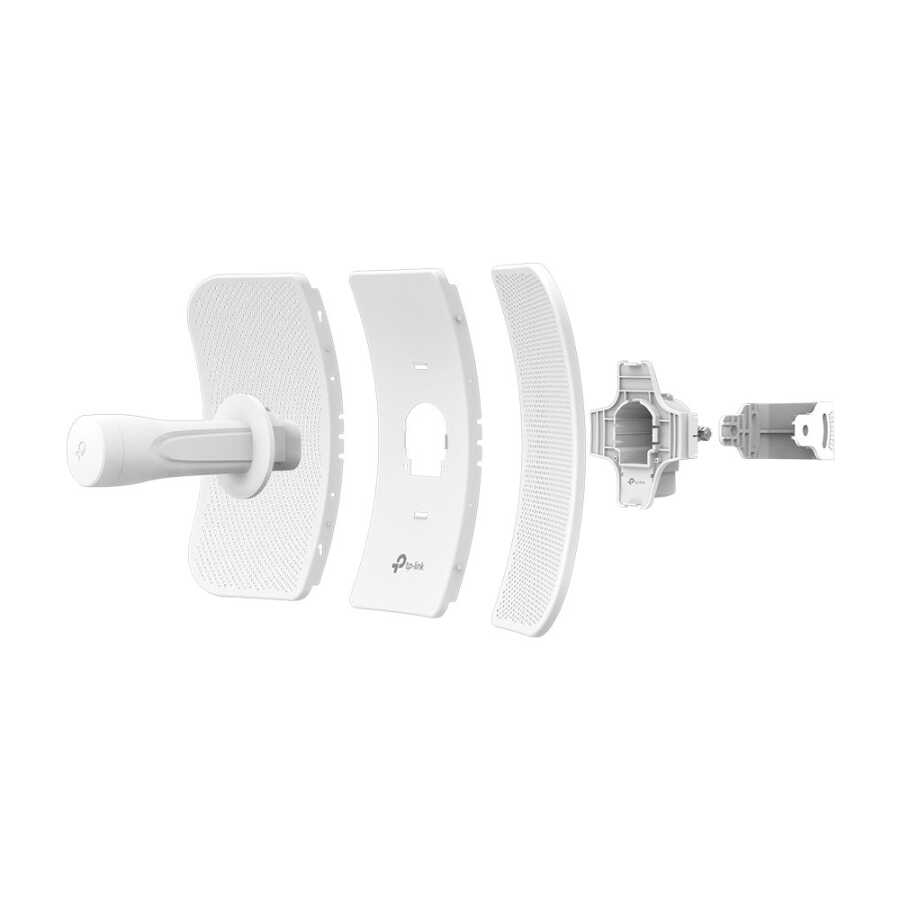

| Assembly Options | Wall and pole mounting support |
High Gain Antenna:A 23 dBi directional antenna provides high signal strength and low latency for long-range wireless connections.
Advanced Modulation:256-QAM modulation and 80 MHz bandwidth increase the data transmission rate.
Passive PoE Support:It provides power and data transmission over a single cable with 24V passive PoE support, offering ease of installation.
Protection Features:It is resistant to outdoor conditions with 15 kV ESD and 6 kV lightning protection.
IP65 Certification:Its dust and water-resistant structure ensures safe use in harsh weather conditions.
Point-to-Point (PtP) Connections:It is ideal for establishing a high-speed wireless connection between two points.
Point-to-Multipoint (PtMP) Broadcasts:It is suitable for providing internet or network services from a central point to multiple users.
Bridge Connections:It establishes wireless communication over wide areas by creating network connections between different buildings.
Security Camera Connections:It is used to connect IP cameras to remote locations wirelessly.
