Anten: 16dBi 2x2 dual polarized directional MIMO antenna
Frequency Range: 5.15–5.85 GHz
Maximum Data Rate: 300 Mbps at 40 MHz channel width
Transmission Power: 0–27 dBm (up to 500 mW), adjustable in 1 dBm increments
Antenna Beam Width:
Y-Plane (H): 45°
E-Plane (E): 30°
Usage Modes: Access Point (AP), Client, Bridge, Repeater, AP Router, AP Client Router (WISP)
Management Software: Pharos Control (device discovery, status monitoring, firmware updates)
Web-Based Management: PharOS
PoE Support: Passive PoE, power transmission over Ethernet up to 60 meters.
İşlemci: Qualcomm Atheros 560 MHz CPU
Bellek: 64 MB DDR2 RAM, 8 MB Flash

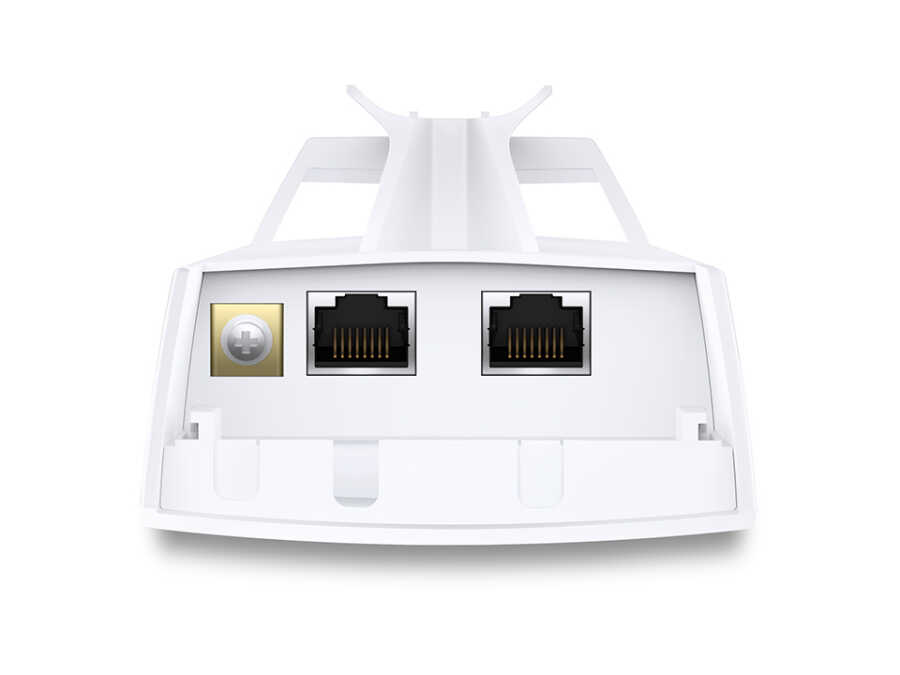

Ethernet Ports:
1 x 10/100 Mbps Shielded Ethernet Port (LAN0, Passive PoE input)
1 x 10/100 Mbps Shielded Ethernet Port (LAN1)
Koruma:
15 kV ESD protection
6 kV lightning protection
Kasa: IPX5 waterproof ASA stabilized plastic material
Boyutlar: 276 x 79 x 60 mm
Ağırlık: Approximately 0.45 kg
Standartlar: IEEE 802.11a/n
Channel Width: Selectable 5/10/20/40 MHz
Automatic Channel SelectionYes
Dynamic Frequency Selection (DFS)Yes
Güvenlik:
WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption
64/128/152-bit WEP encryption
Enable/disable SSID broadcast
VLAN tagging with multiple SSID (only in AP mode)
MAC address filter
Point-to-Point (PtP): Long-distance wireless connections between two points
Point-to-Multi-Point (PtMP): Wireless internet distribution from one center to multiple points.
WISP Connections: Bridging or connecting with internet service providers by using as a client router.
Open Area Wi-Fi Coverage: Internet access in wide areas such as gardens, farms, campuses.
Frequency Restrictions: The available frequency range may vary depending on the country or region.
Guarantee and Support: Visit TP-Link's official website for the device's warranty period and support services.
