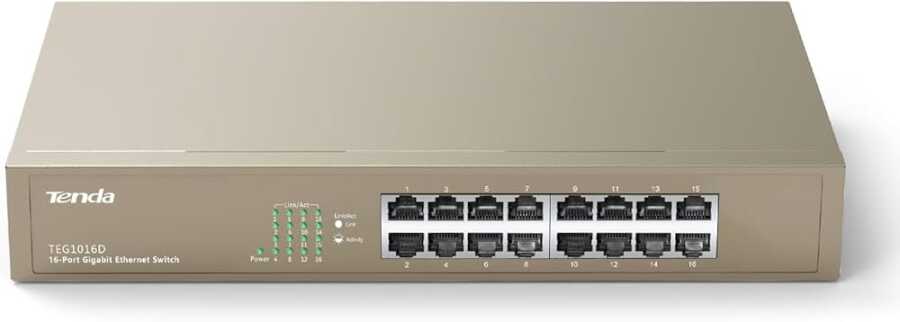

The Tenda TEG1016D is an unmanaged gigabit Ethernet switch equipped with 16 auto-negotiating RJ45 ports supporting speeds of 10/100/1000 Mbps. With its compact metal housing and fanless design, it offers a quiet and efficient networking solution. It is ideal for home offices, small businesses, and security surveillance systems.
Number of Ports16 × 10/100/1000 Mbps RJ45 Ethernet port
Connection TypeAuto-negotiation (automatic speed and duplex setting)
Connection MediaCAT5e or higher quality UTP cables
Redirect Capacity: 32 Gbps
Advanced Transmission Speed23.80 Mpps (Million packets/second)
MAC Address Table8,000
Cache (Buffer): 4 MB
LED IndicatorsPower, Connection/Activity (Link/Act)
Assembly OptionsSupports desktop, wall, and rack mounting.
Power ConsumptionMaximum 12W
Power Input100–240V AC, 50/60Hz
Operating TemperatureBetween 0°C and 45°C
Storage TemperatureBetween -40°C and 70°C
Operating Humidity Ratio: 10%–90% (non-condensing)
Storage Humidity Rate: 5%–90% (non-condensing)
Protection CertificatesCE, RoHS
Port ProtectionFor each port, 6 kV Class IV (common mode) lightning protection
Power Supply ProtectionThe integrated power supply module is protected against 6 kV lightning surges.
Small and Medium-Sized Enterprises (SMEs)To strengthen the network infrastructure.
Home OfficesTo connect the devices at home quickly and reliably,
Security Monitoring SystemsTo provide network connection for IP cameras
Schools and Educational InstitutionsFor computer labs and classroom network connections
Tenda TEG1016D 16-Port Gigabit Ethernet Switch
User Manual
Ethernet Cable
Mounting Kit (U-mount bracket, screws, and rubber feet)
