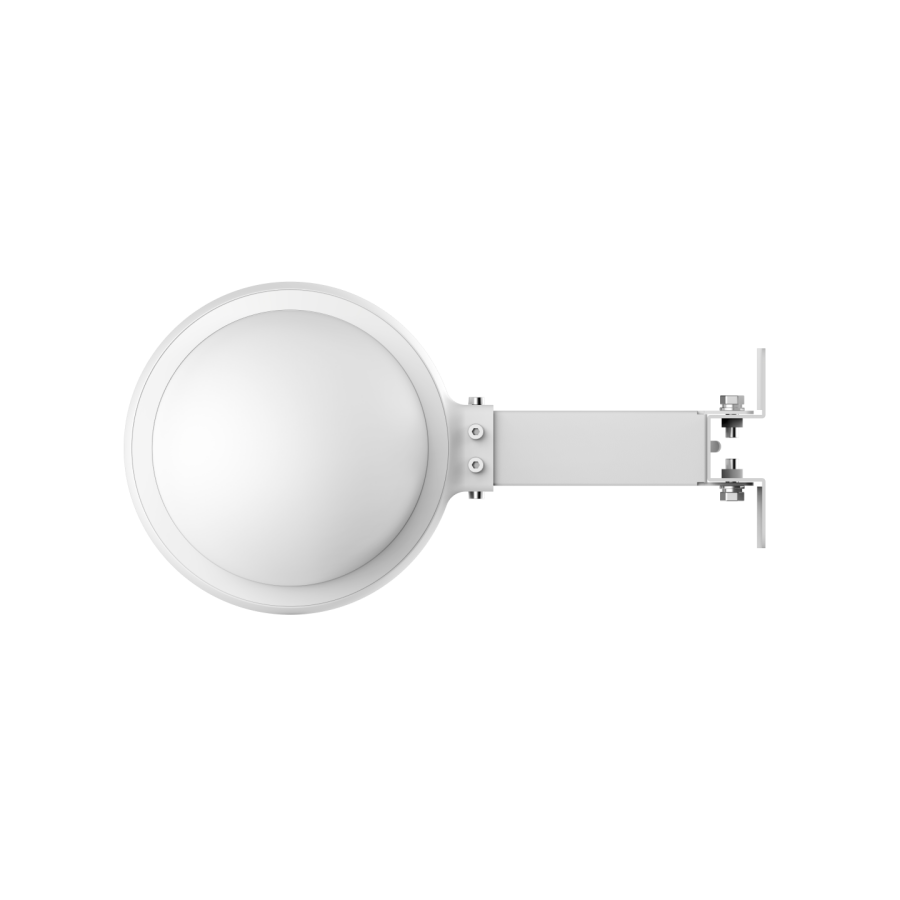

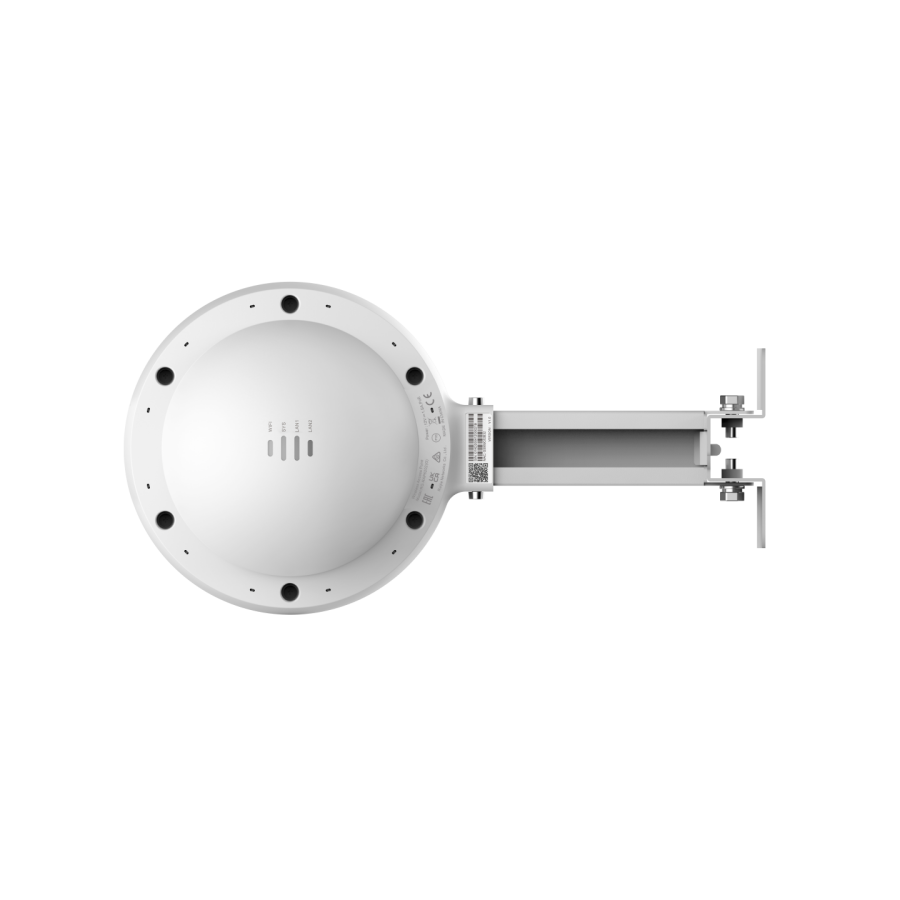

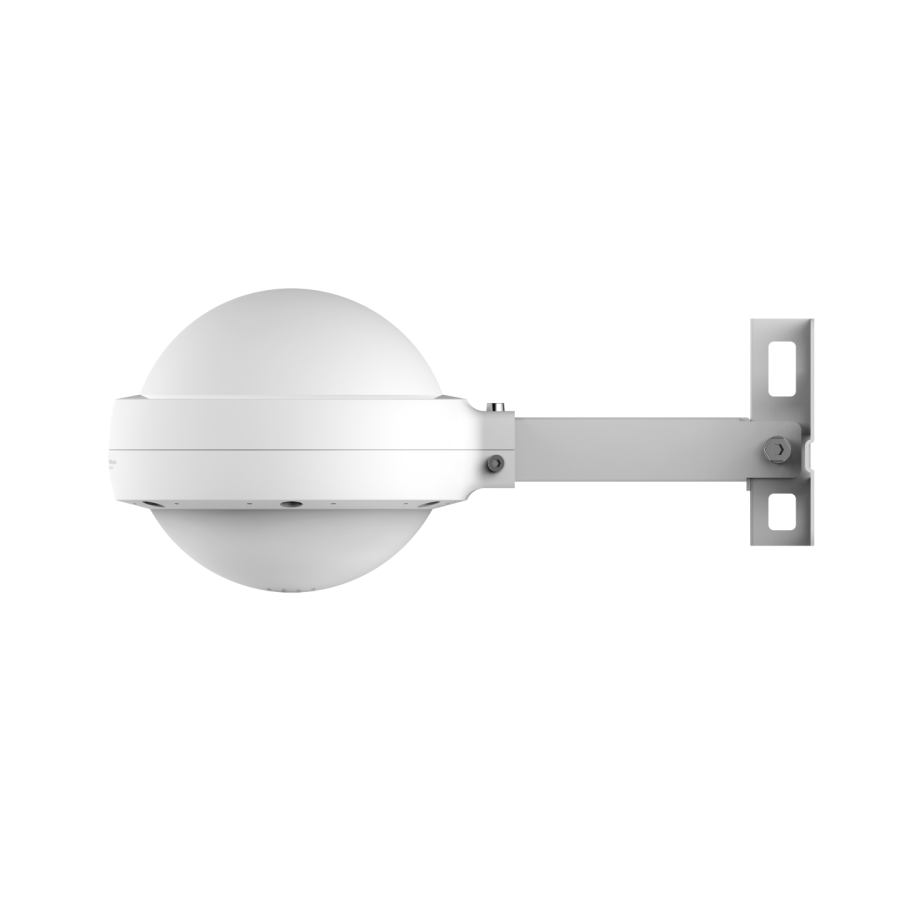

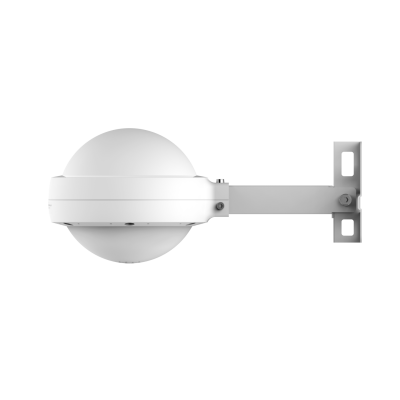

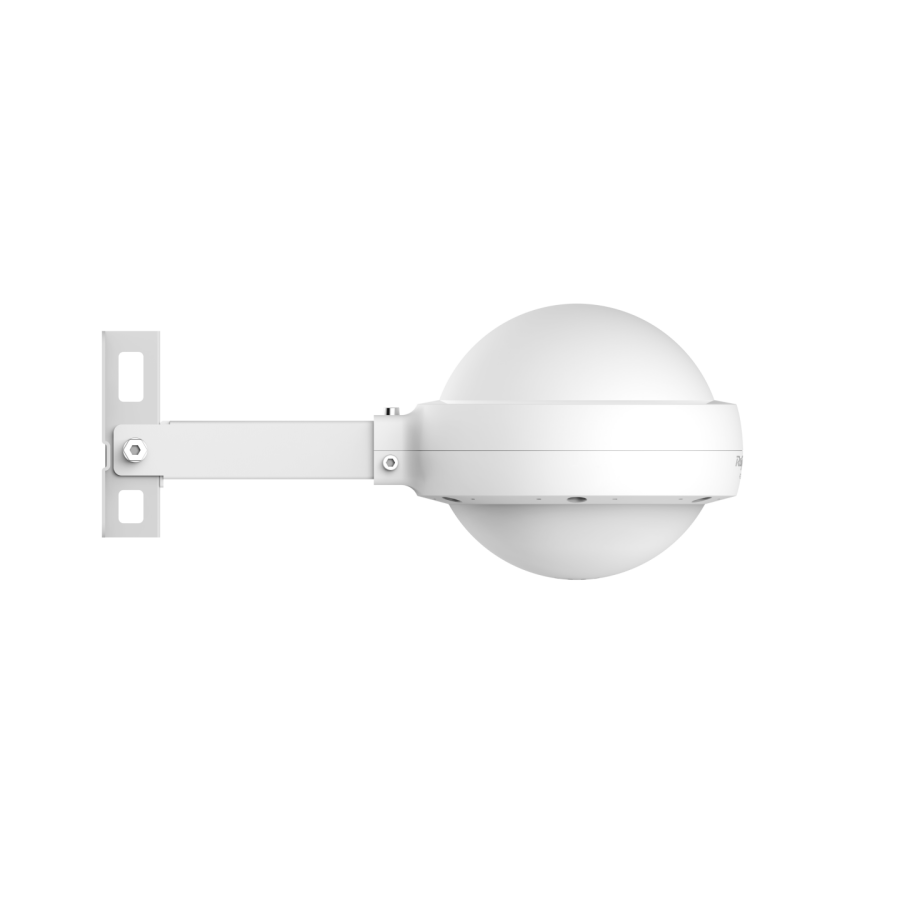

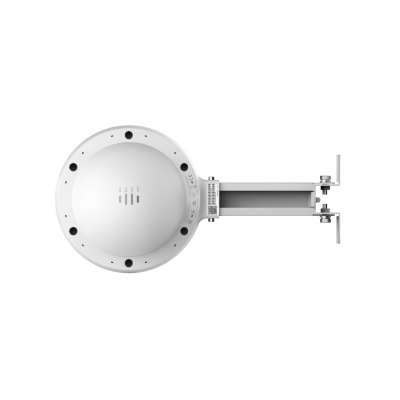

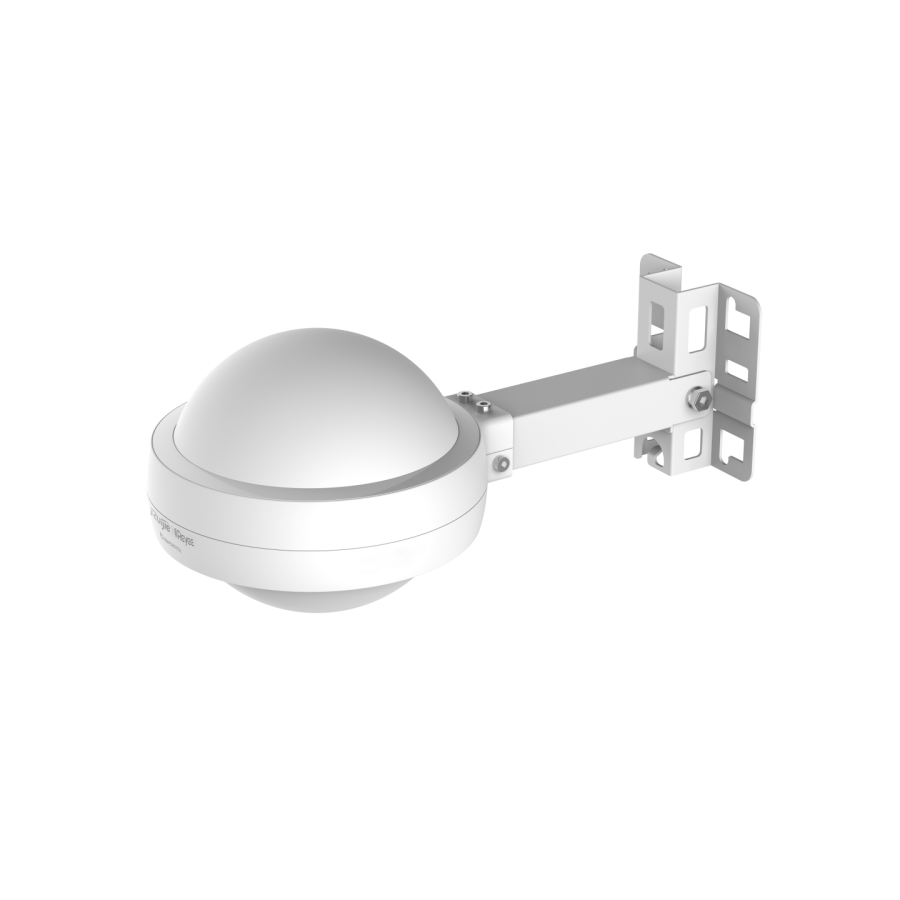

RG-RAP6202(G) Wi-Fi 5 AX1300

The Ruijie Reyee RG-RAP6202(G) is a high-performance and durable Wi-Fi 5 (802.11ac Wave 2) access point designed for outdoor use. It has been developed specifically to provide extensive coverage and reliable connectivity in open areas.

📡 Technical Specifications

• Wireless Standard: Wi-Fi 5 (802.11ac Wave 2)

• Maximum Wireless Speed: 1267 Mbps (2.4 GHz: 400 Mbps, 5 GHz: 867 Mbps)

• MIMO: 2x2 @2.4 GHz, 2x2 @5 GHz

• Number of Antennas: 4 high-gain internal antennas

• Coverage Area: 2.4 GHz omnidirectional coverage with a 100-meter radius, 5 GHz with a 300-meter radius.

• LAN Ports: 2 x 10/100/1000 Mbps RJ45

• PoE Support: 802.3af/802.3at compliant PoE or 12V DC/1.5A adapter (adapter sold separately)

• Maximum/Recommended Number of Users: 110 / 80

🛡️ Durability and Protection

• Protection Class: IP68 – complete protection against dust, water, and moisture.

• Operating Temperature: -30°C to +65°C

• Lightning Protection6 kV

• Wind Erosion Protection: Mevcut

• Flame Retardant External Casing: Mevcut

⚙️ Additional Features

• Tasarım: Aesthetic "UFO" design

• Yönetim: Reyee Mesh technology and free cloud management support

• Assembly Options: Suitable for wall and pole mounting.

📏 Physical Properties

• Boyutlar: 200 mm × 220 mm × 166 mm (excluding mounting bracket)

• Ağırlık: 1.0 kg (excluding mounting bracket)
