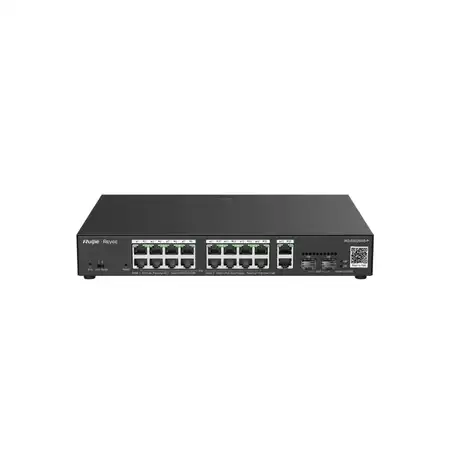

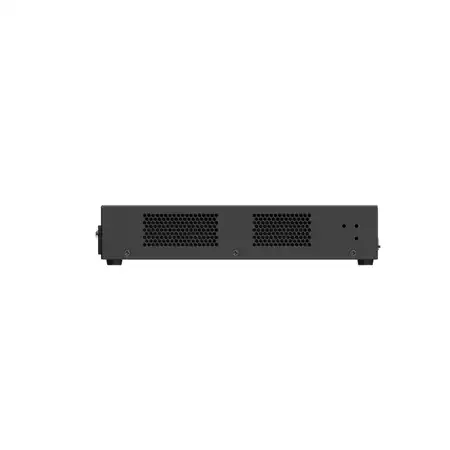

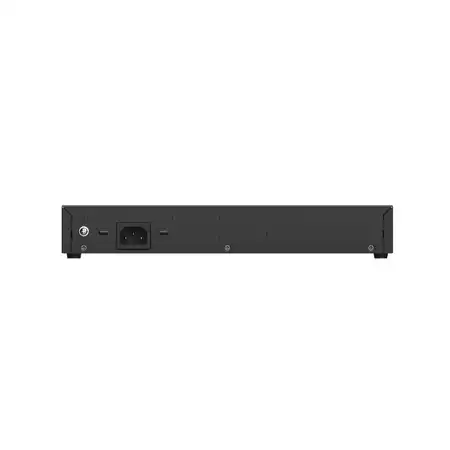

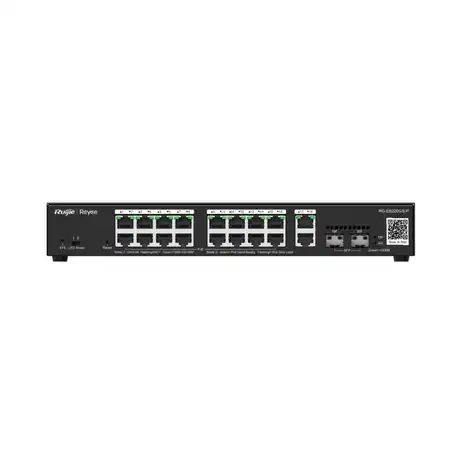

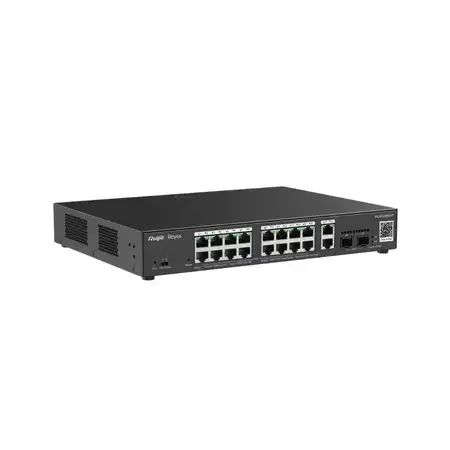

REYEE RG-ES220GS-P SWITCHIt is an ideal, manageable network switch for businesses, hotels, schools, and commercial areas where PoE devices such as surveillance cameras and wireless access points are heavily used.

Featured Technical Specifications:

• 20 Gigabit ports: 16 PoE+ supported ports + 2 RJ45 uplinks + 2 SFP fiber uplinks.reyee.ruijie.com+2G4Direct+2

• PoE Power Budget: Total250WPoE+, compliant with 802.3af/at standards.G4Direct+2reyee.ruijie.com+2

• Switching Capacity:40 Gbps; packet transmission rate ~29.76 Mpps. reyee.ruijie.com+2XLR Security+2

• MAC Address Table capacity: ~8000 entries. reyee.ruijie.com+1

• Number of VLANs:16 VLAN desteği. reyee.ruijie.com+1

• Cooling type: Internal fan; fan stops at temperatures below 25°C for silent operation.XLR Security+1

• Physical measurements:300 × 223 × 43.6 mm, packaged weight approximately2.8 kg. getic.es+2reyee.ruijie.com+2

Advantages Provided to the User:

• Remote configuration and monitoring convenience via Ruijie Cloud.reyee.ruijie.com+2G4Direct+2

• Easy integration in surveillance systems with IP camera recognition feature.G4Direct+1

• Loop prevention, port restart, and other functions that ensure network security and continuity.

⚙️ Technical Specifications – Reyee RG-ES220GS-P

🔌 Port Structure

• 16 × Gigabit PoE port (802.3af/at supported)

• 2 × Gigabit SFP uplink port

• 2 × Gigabit uplink RJ45 port

• Toplam: 20 Port

⚡ PoE Features

• Total PoE Power:240W

• Maximum power per port:30W

• Smart PoE management (PoE on/off, remote restart)

🌐 Network Features

• VLAN, QoS, IGMP Snooping support

• Loop Guard, Storm Control

• Central management via Reyee Cloud

📡 Performans

• Switching Capacity:56 Gbps

• Forwarding Rate:41.7 Mpps

• Jumbo Frame: 9K supported

🔒 Güvenlik

• Port isolation

• Yayın/Çoklu Yayın/Bilinmeyen Tek Yönlü Fırtına Bastırma

• 802.1X Access Control

🛠️ Yönetim

• Cloud (Ruijie Cloud application)

• Web-based interface

• Quick installation with the mobile app

📐 Physical Properties

• Boyutlar: 330 mm × 230 mm × 44 mm

• Rackmount compatible (1U)

• Operating temperature: 0°C ~ 50°C

🔋 Power Consumption

• Maksimum: ≤ 260W

• Power input: AC 100–240V, 50/60Hz
